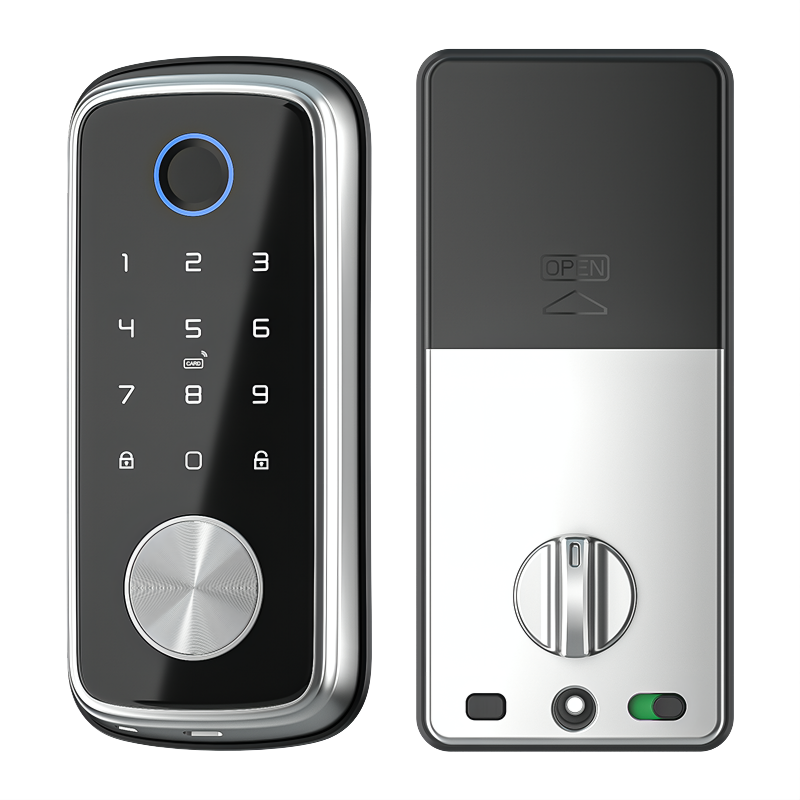

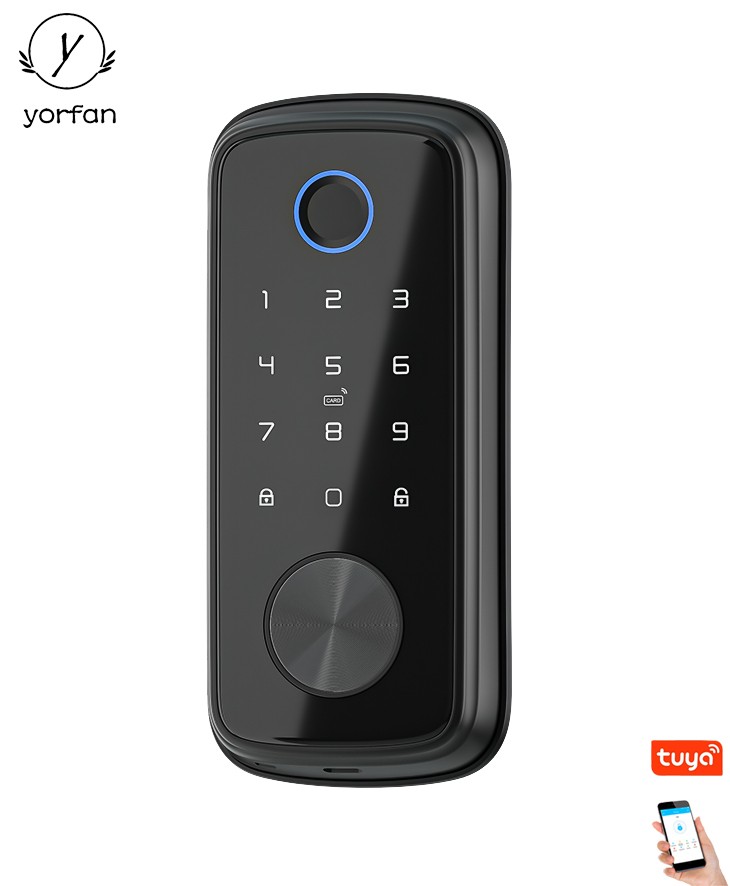

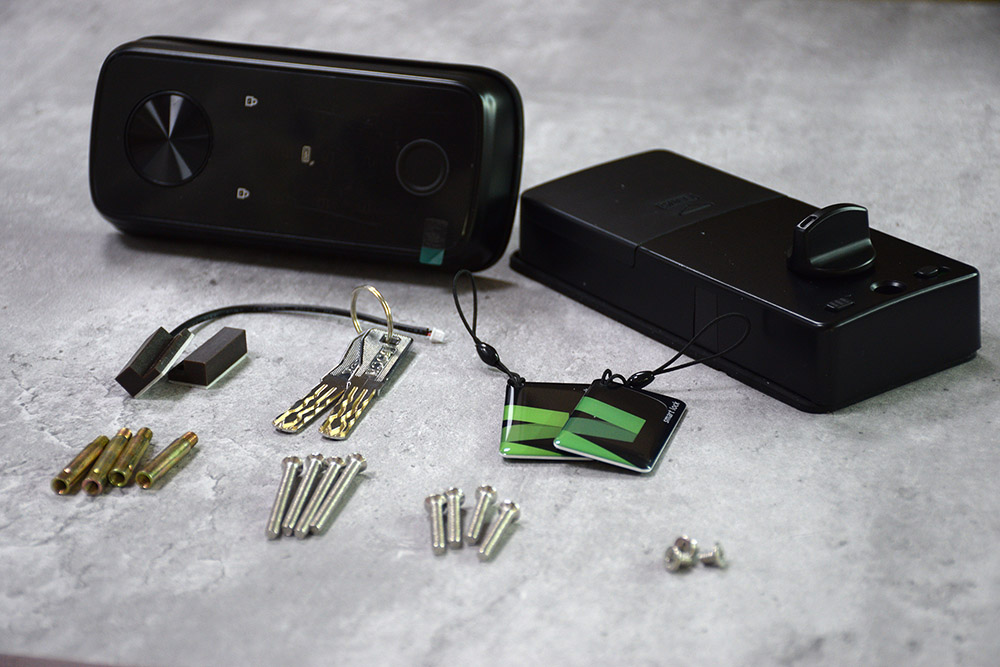

Dead Bolt Automatic Smart Door Lock YFBF-T1PRO

Bluetooth door lock

TTlock APP

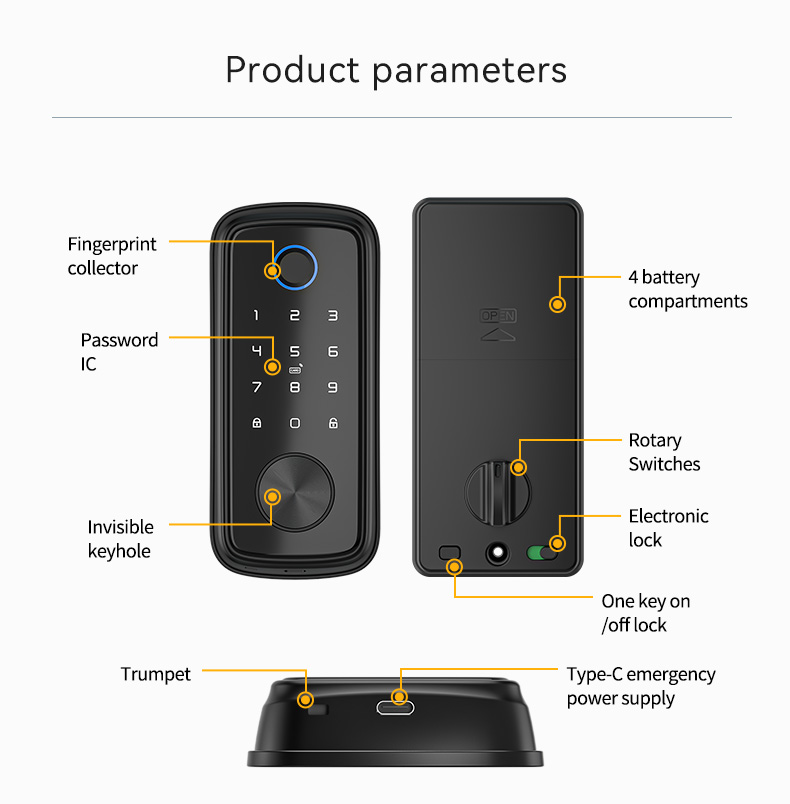

PRODUCT DESCRIPTION

Model Number: YFBF-T1PRO

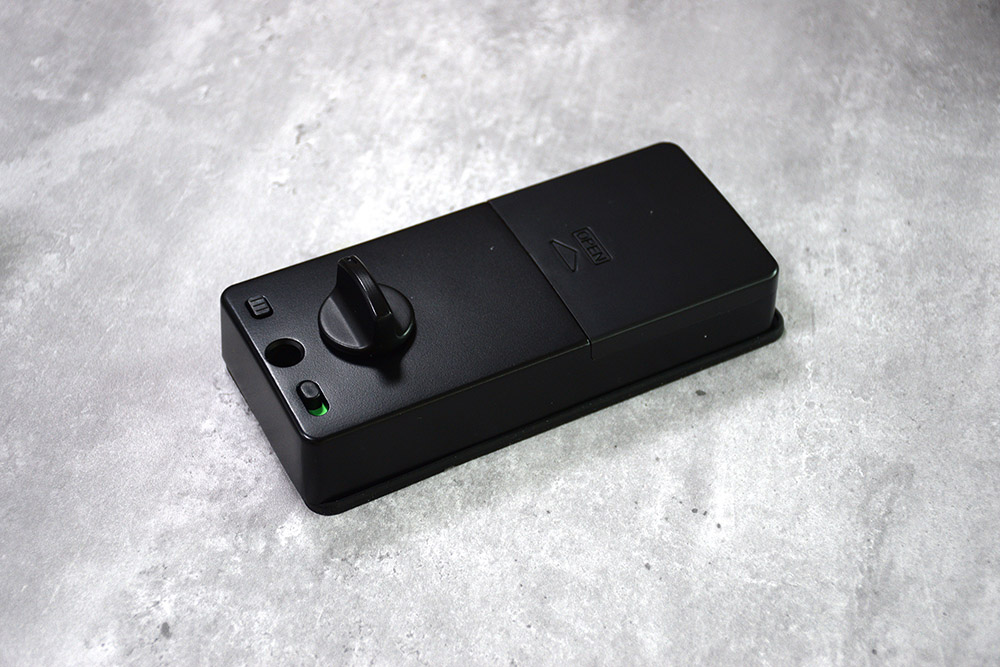

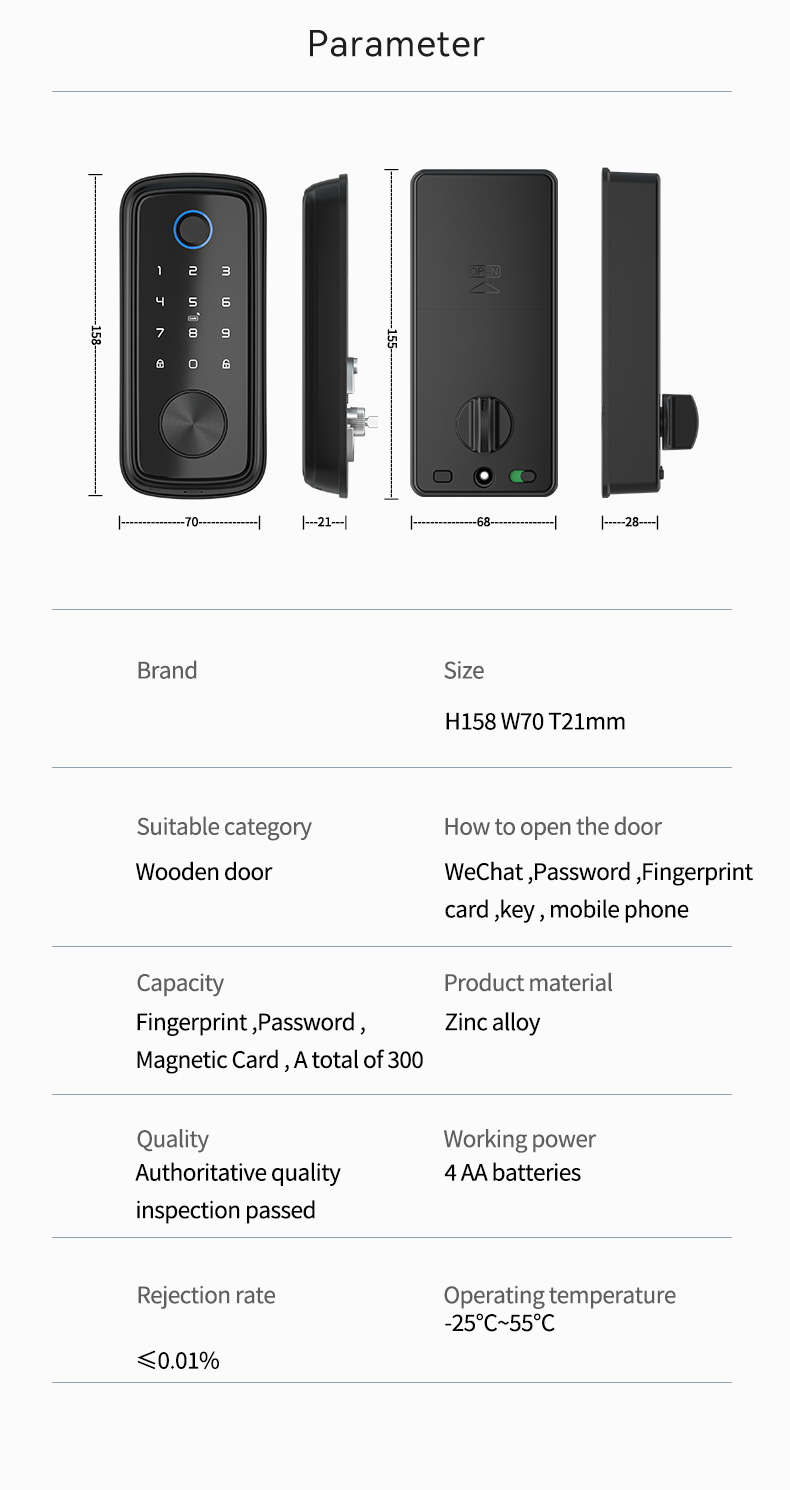

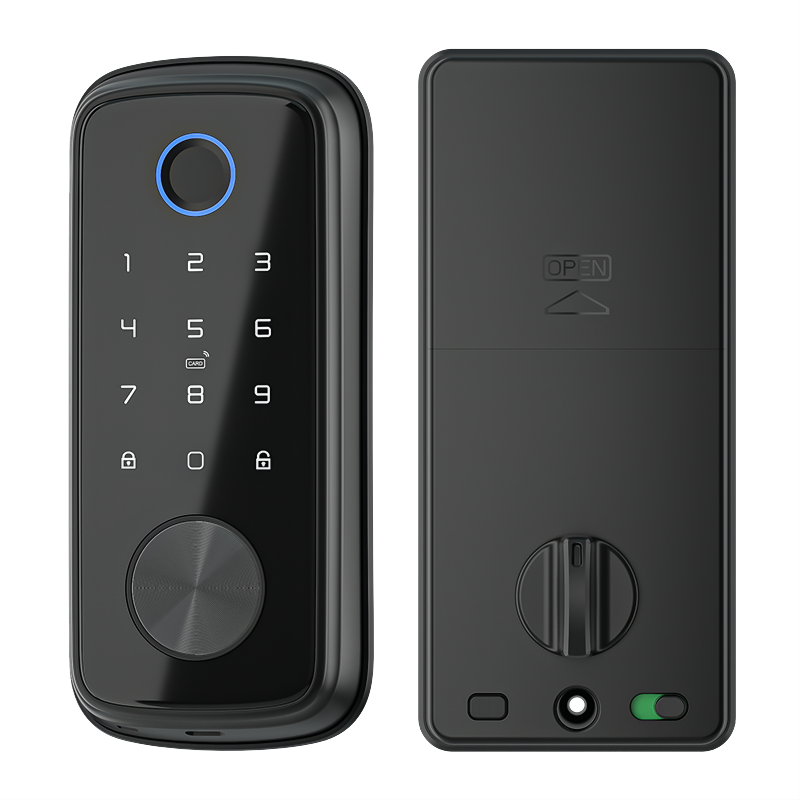

Dimension: Front panel 140*60*16mm, rear panel 155*68*28mm

Mortise: Deadbolt(60mm,70mm adjustable)

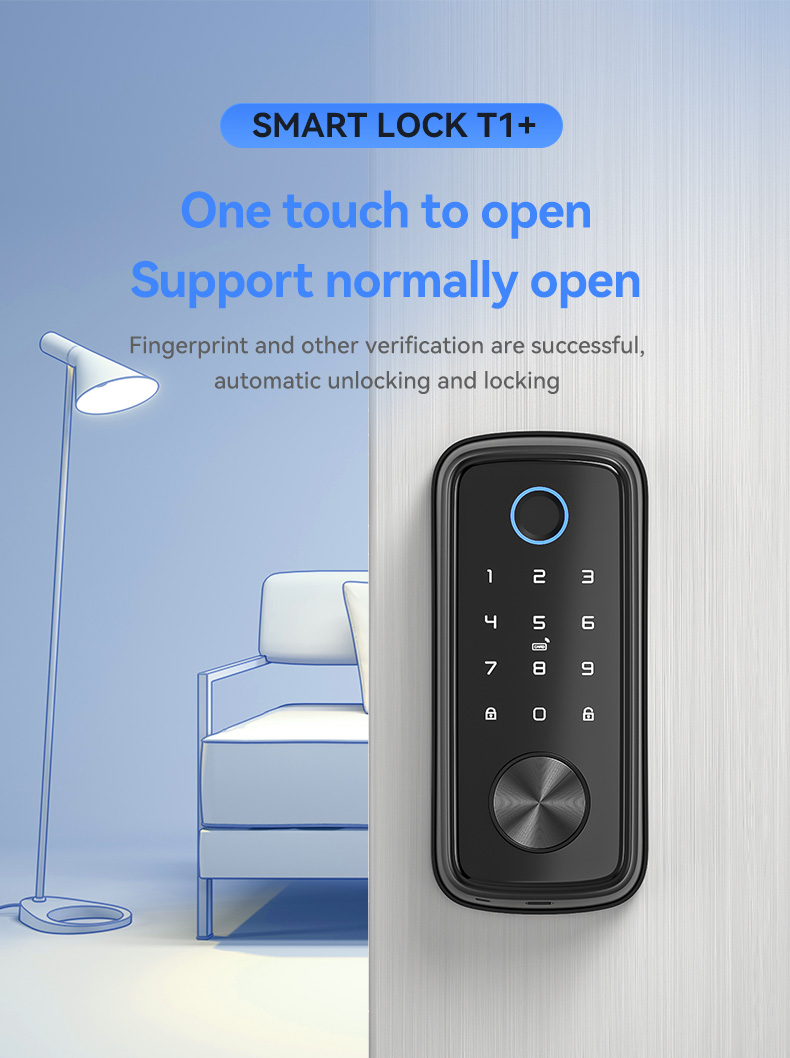

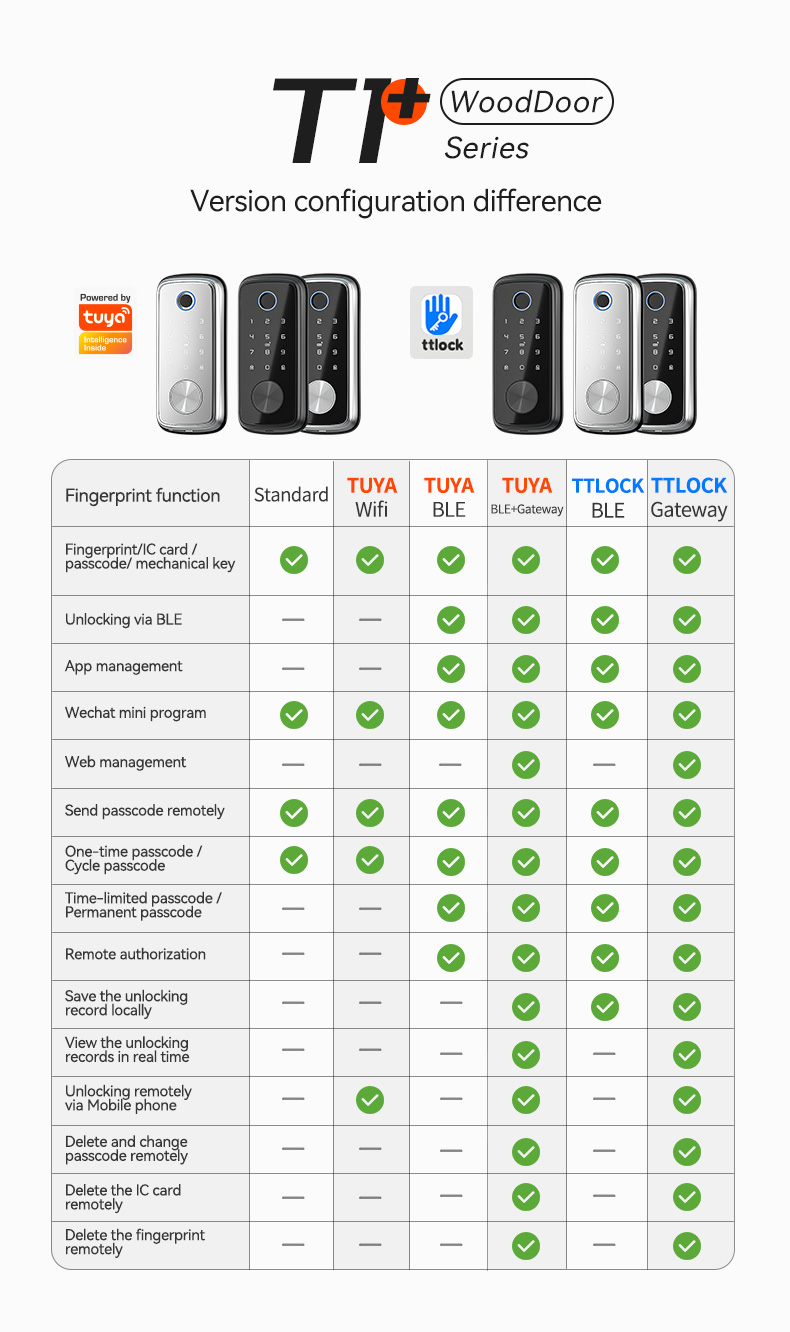

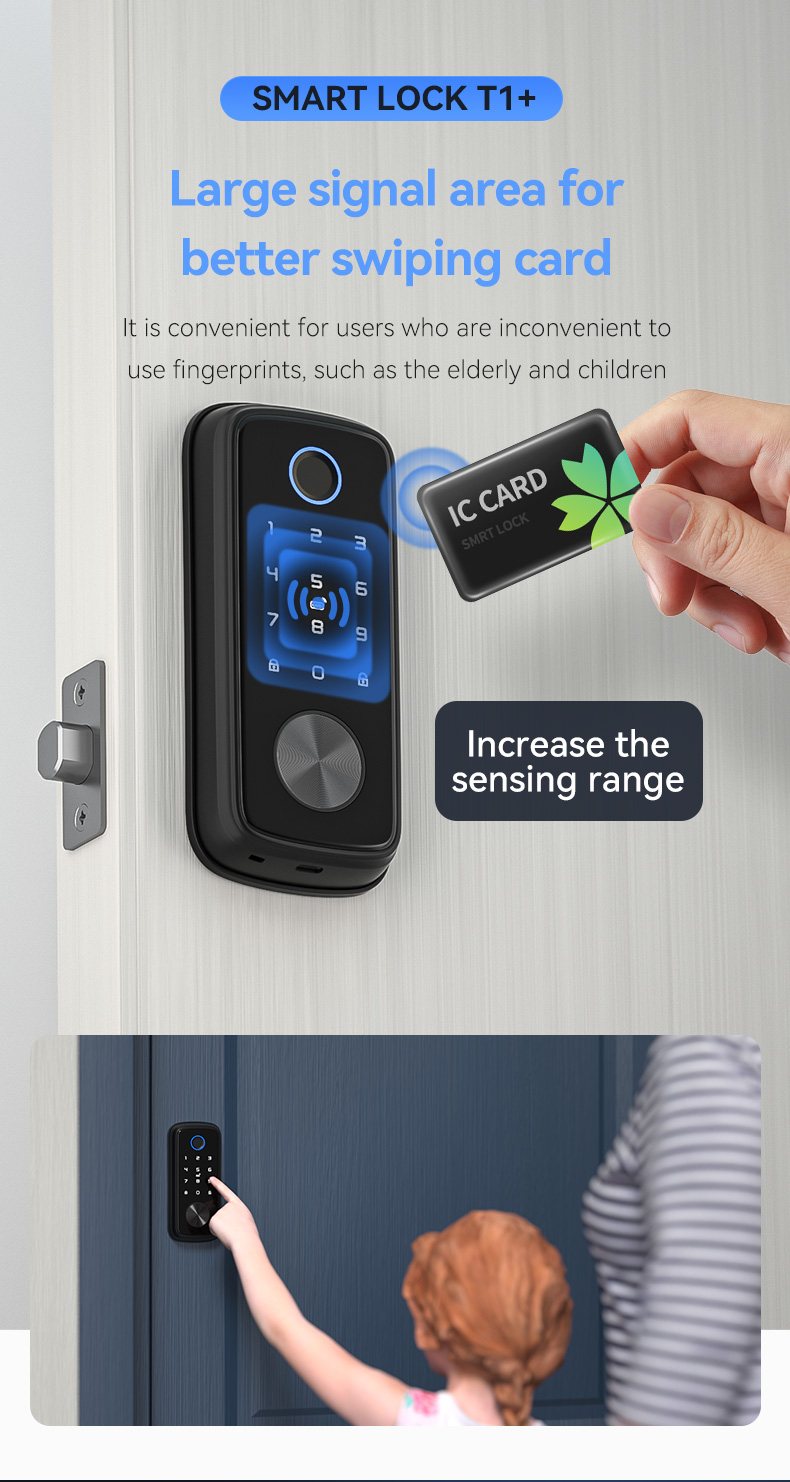

Unlock: Fingerprint,bluetooth,card,passcode,key,wifi(need gateway)

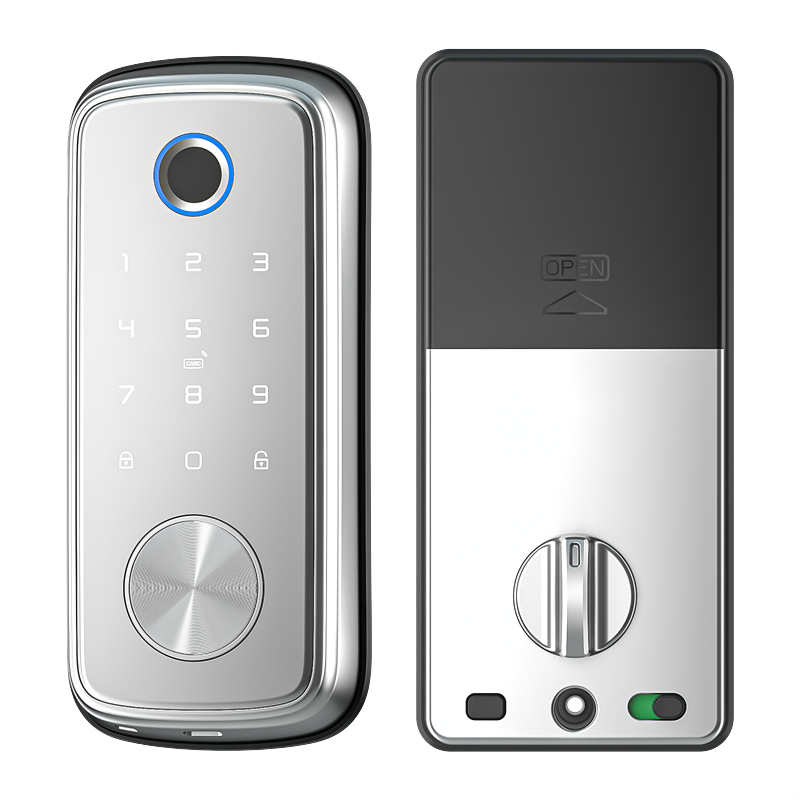

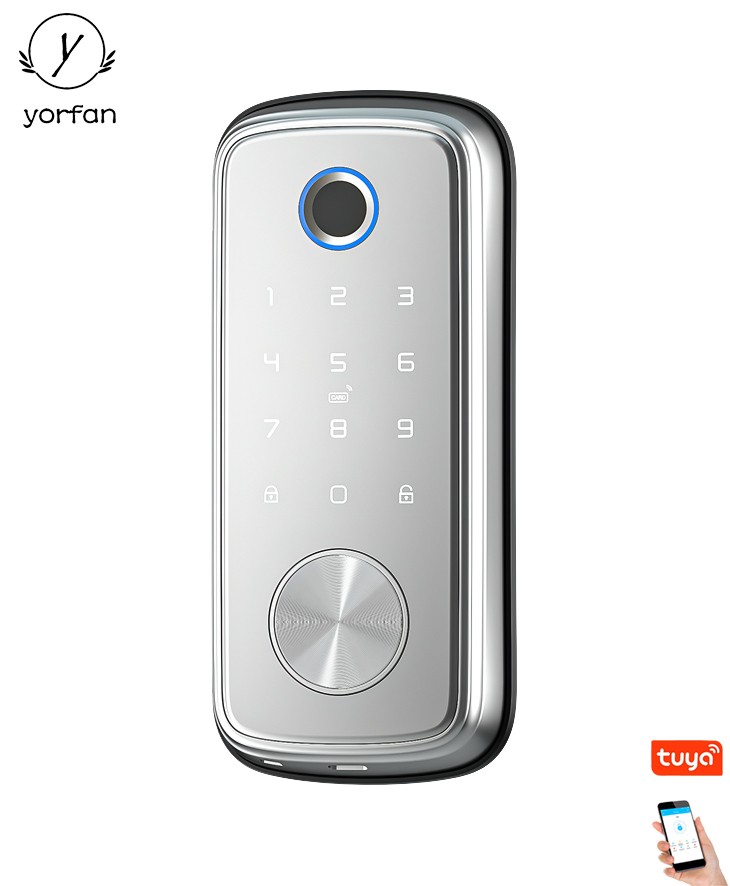

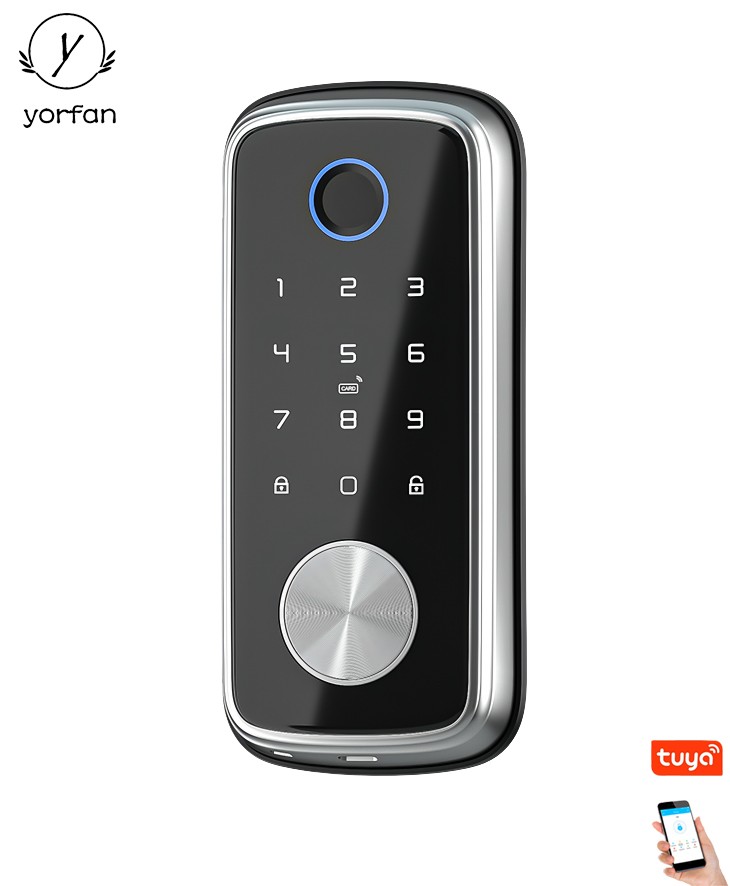

Color: black or silver or silver+black

Material:zinc alloy

Power supply: 4.5V-6.5V (ie 4 AA dry batteries)

Typical quiescent current: <50 mA (battery life can exceed one year)

Working current: <200 mA (strong driving ability)

Quiet current: <50UA (strong driving ability)

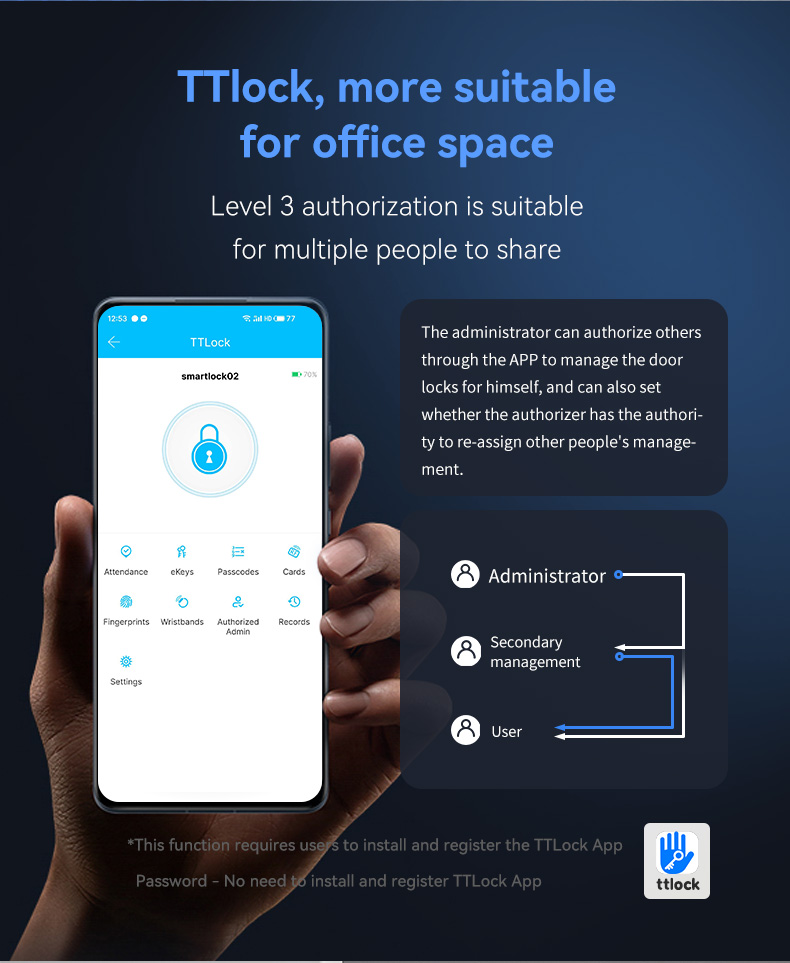

Administrator users: 9 groups

Total input: 200 groups (including password, fingerprint and card)

Applicable door thickness: 35-50mm (above this should be customized)

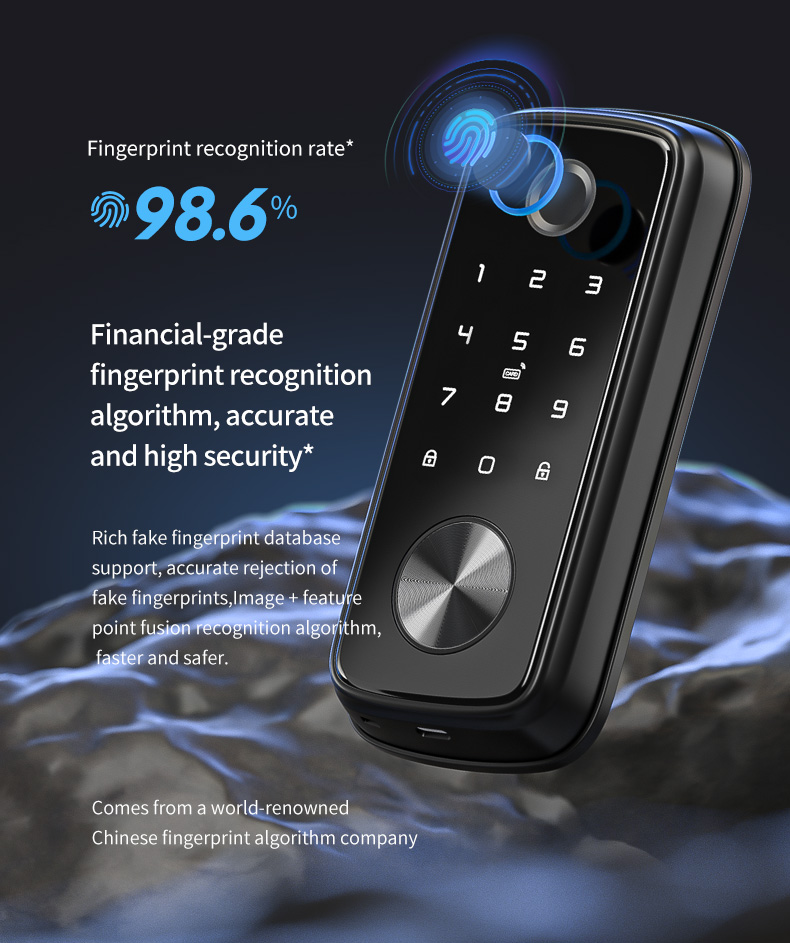

Resolution: 500DPI

Rejection rate: ≤0.15%

False acceptance rate: ≤0.00004%

Working temperature: -25℃-65℃

Working environment humidity: 5-95%RH (no condensation)

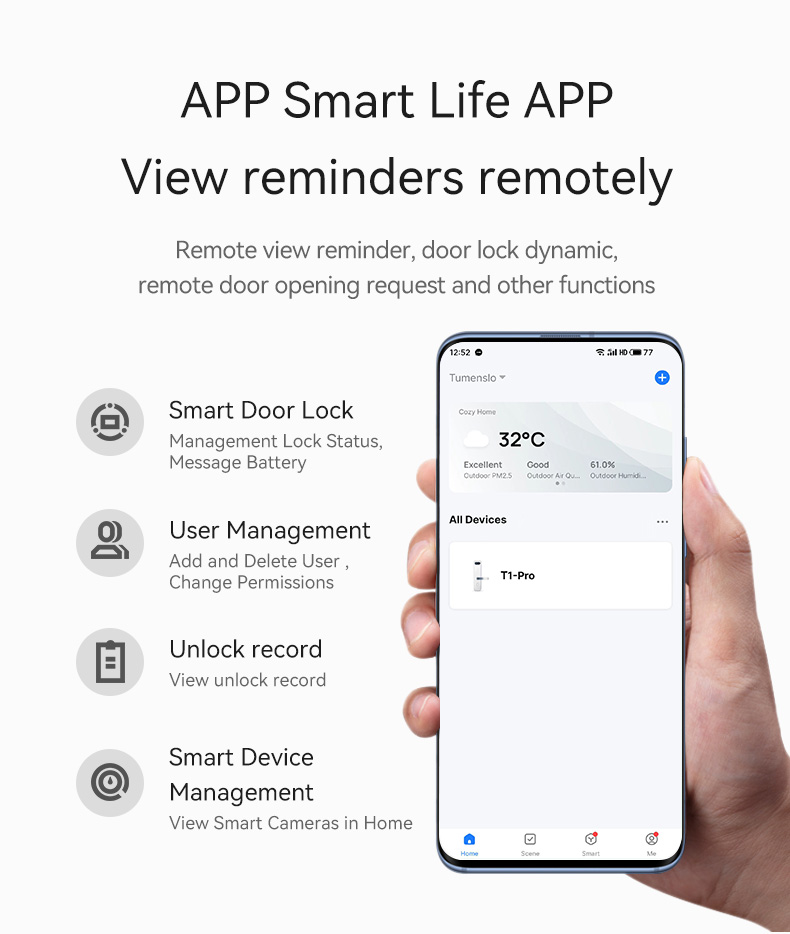

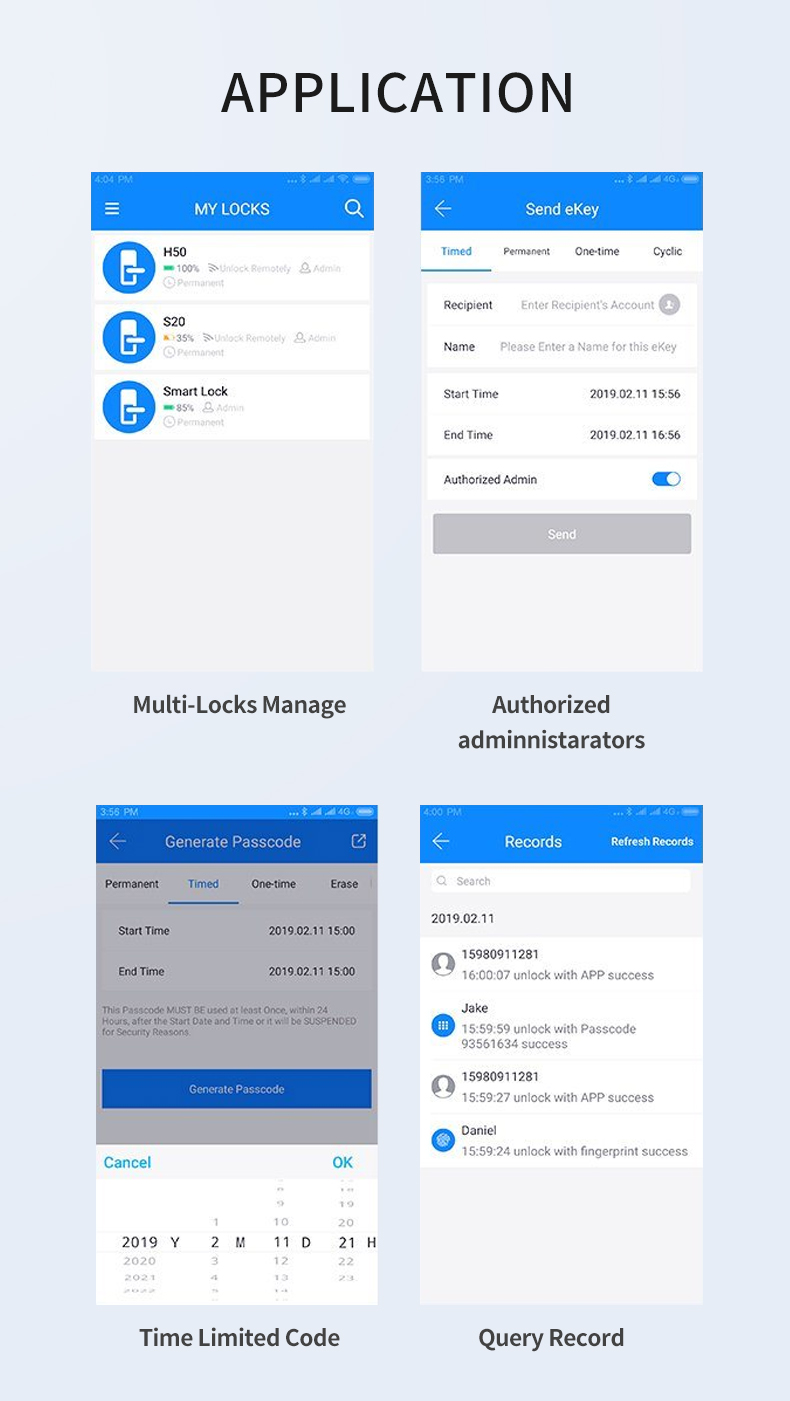

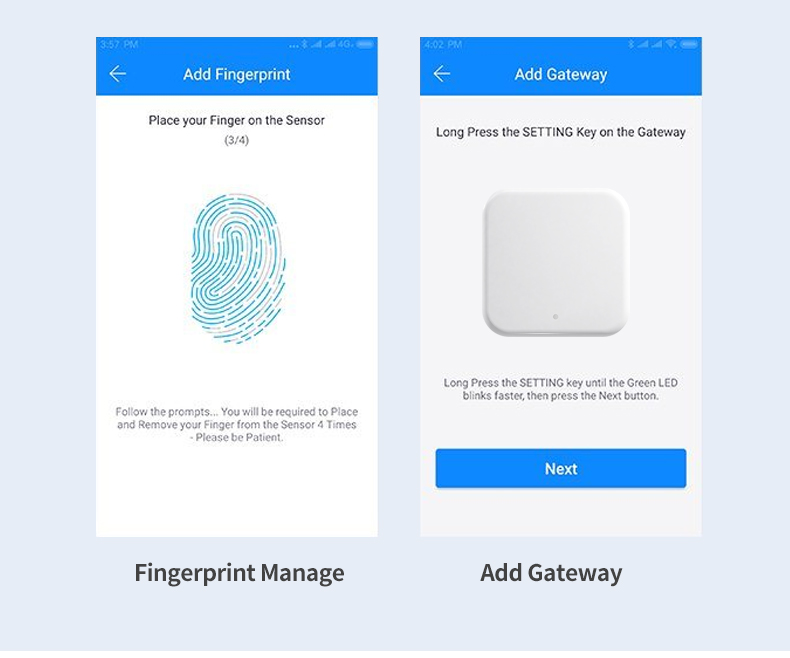

APP: TTlock(bluetooth)

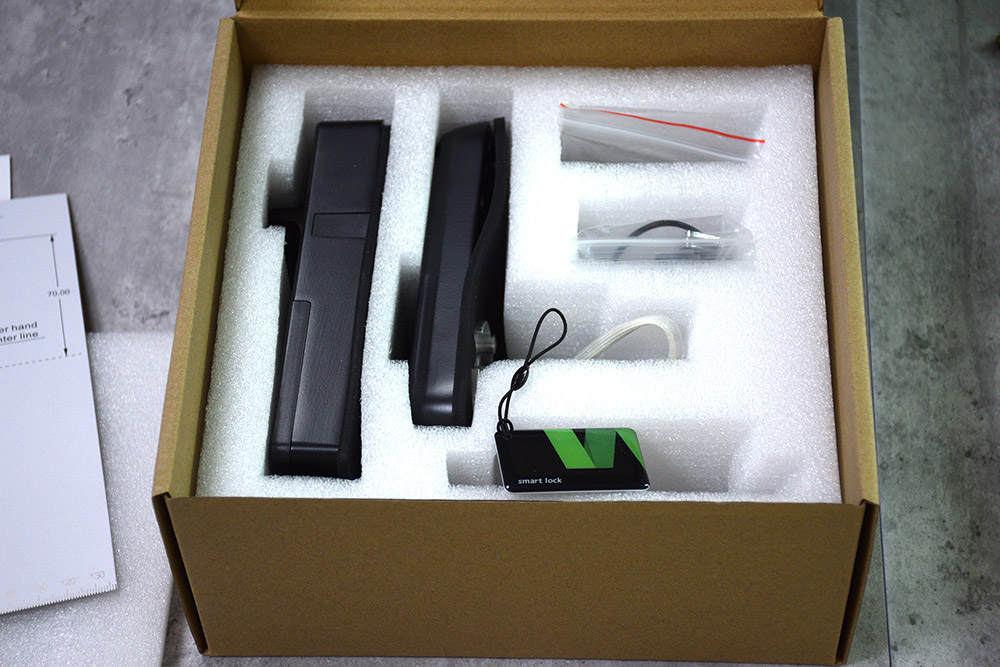

Inner box:

235*215*110mm/1.1kgs

12pcs/carton/15kgs


Exterior carton:

490*350*450mm
