PRODUCT DESCRIPTION

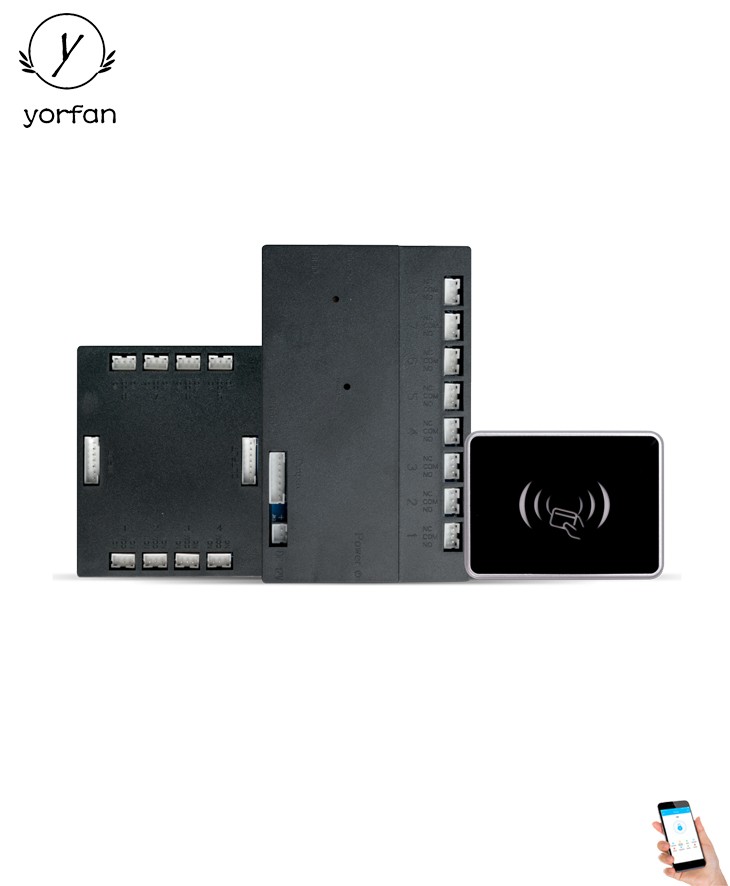

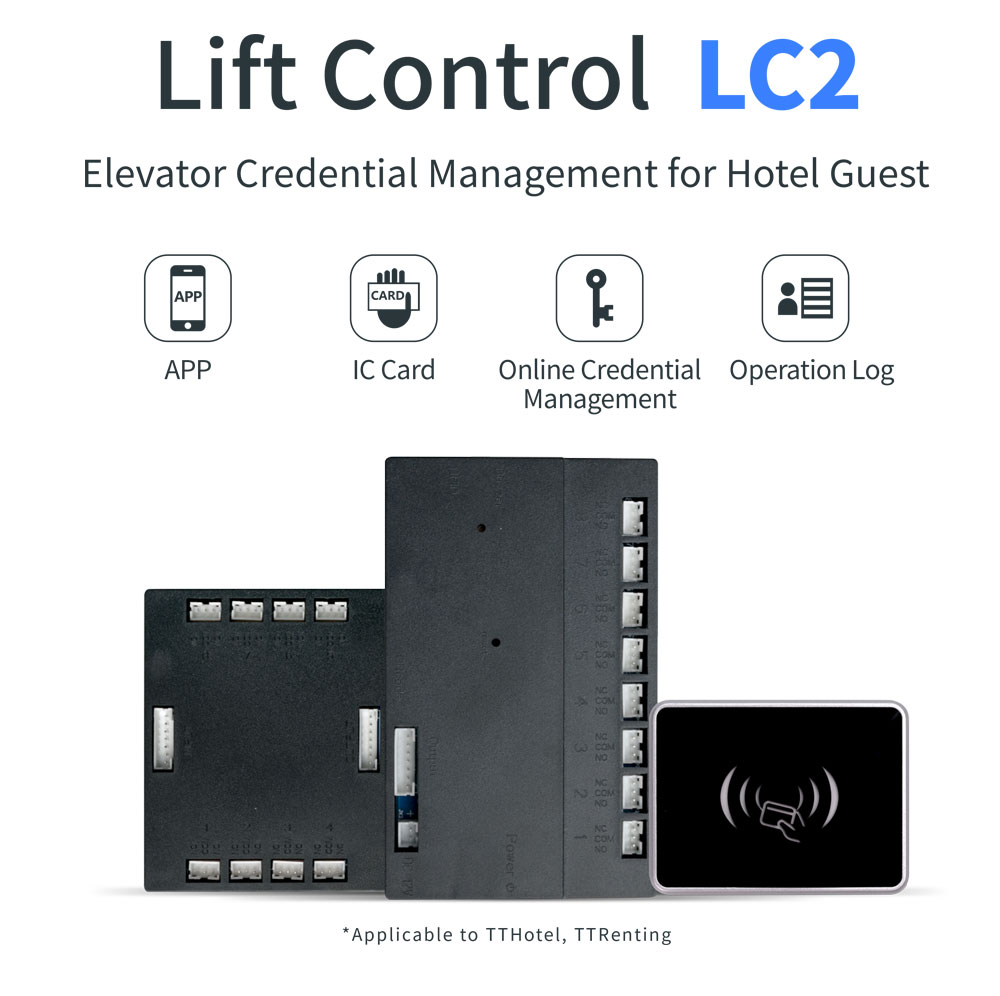

Model: LC2
Reader+8 floor control= one set

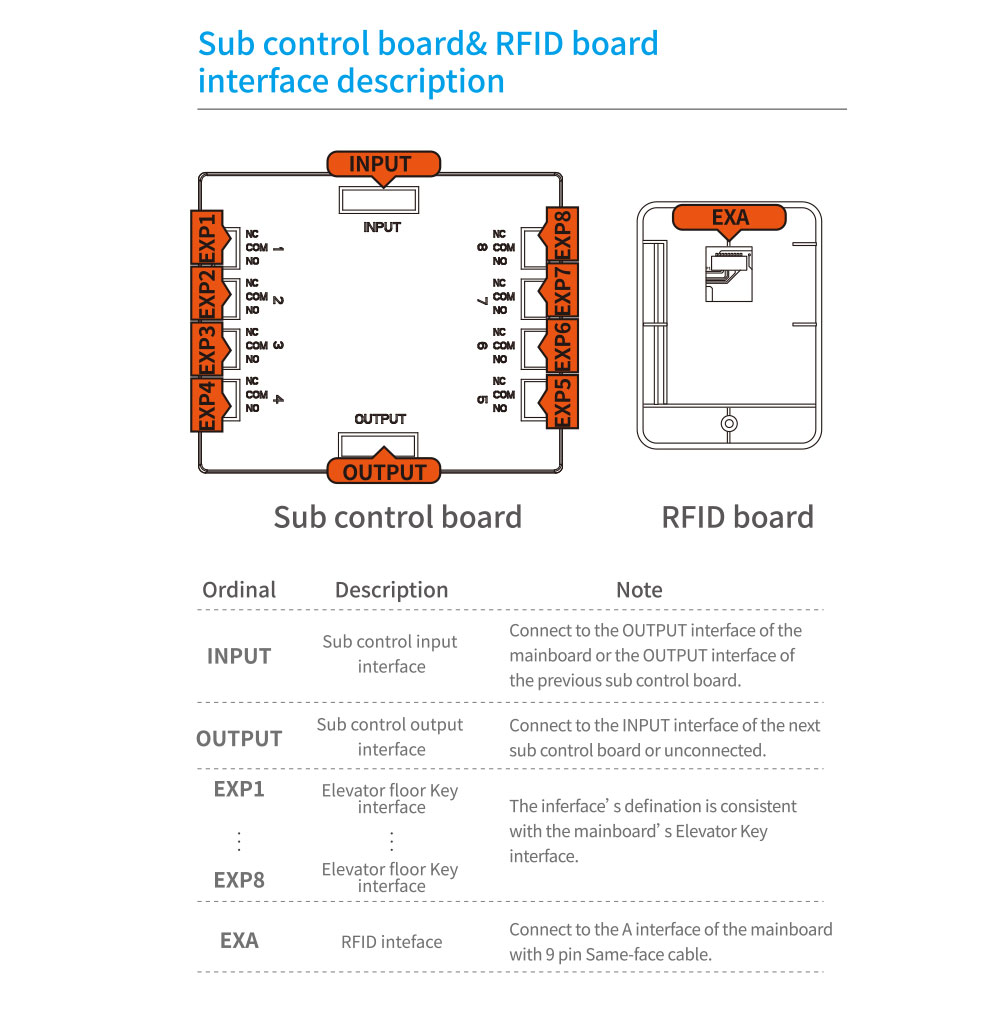

If need control above 8 floor, just need buy extender control board, max control 64 floors

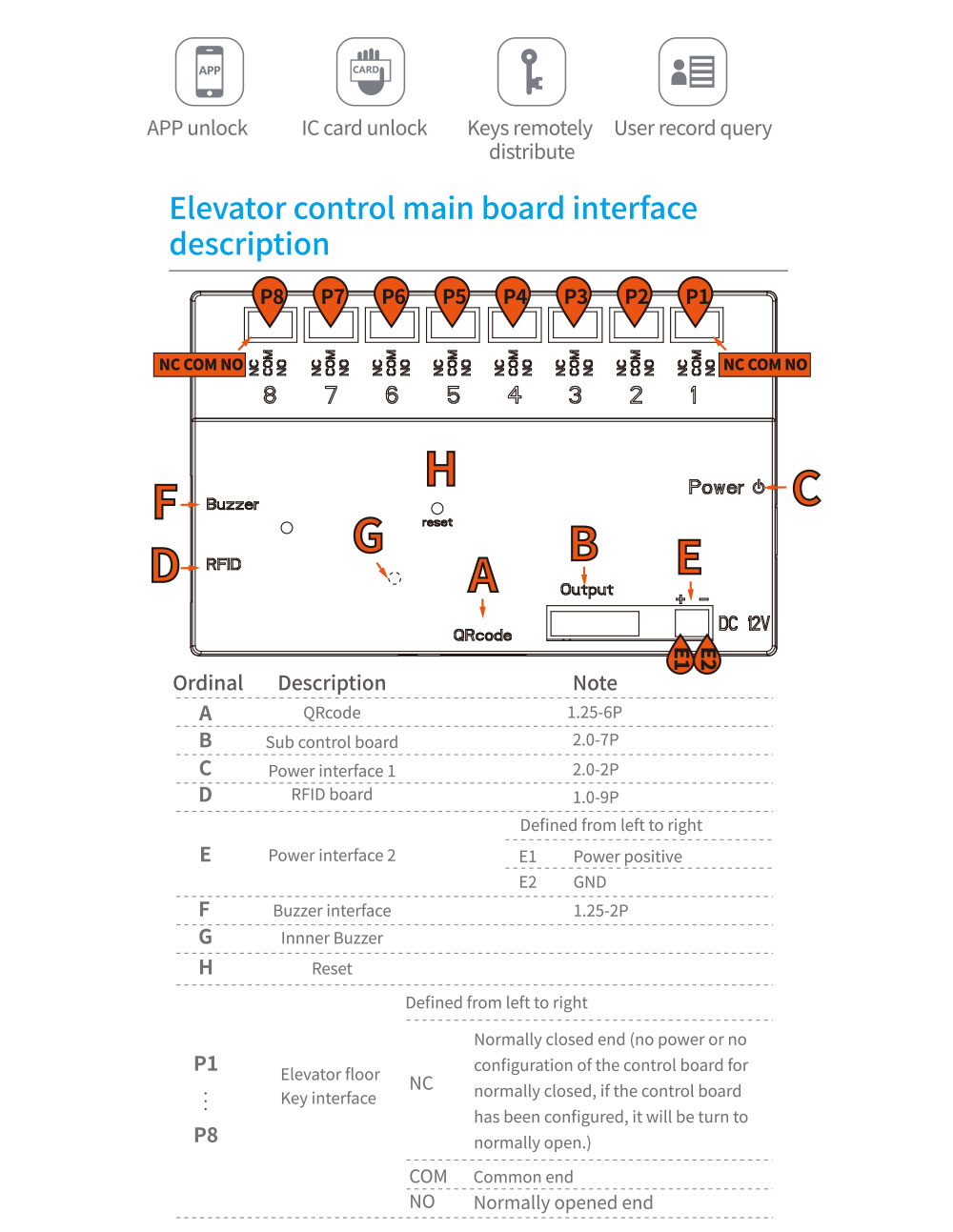

LC2 elevator control board scheme,can manage the elevator control through the Windows end,support APP,IC card control elevator.
Supports firmware upgrades,and the software functionality can be extendedthrough firmware upgrades.The IC card can specify the validity period(starttime-end time),and it can only be used during the validity period.
Parameters:
Dimensions : W66 x H107 x T18.5mm
W66 x H80 x T17mm W60 x H80 x T8mm
Voltage: 9~16V
BLE standard: 5.0BLE
Supporting systems: Android 4.3/IOS7.0 above
Stand-by current : 18 mA
Operating current ：8 floors ＜120mA；64 floors＜1A
Working Temperature ：-20~70 ℃
Supported card types：MIFARE M1 S50 card

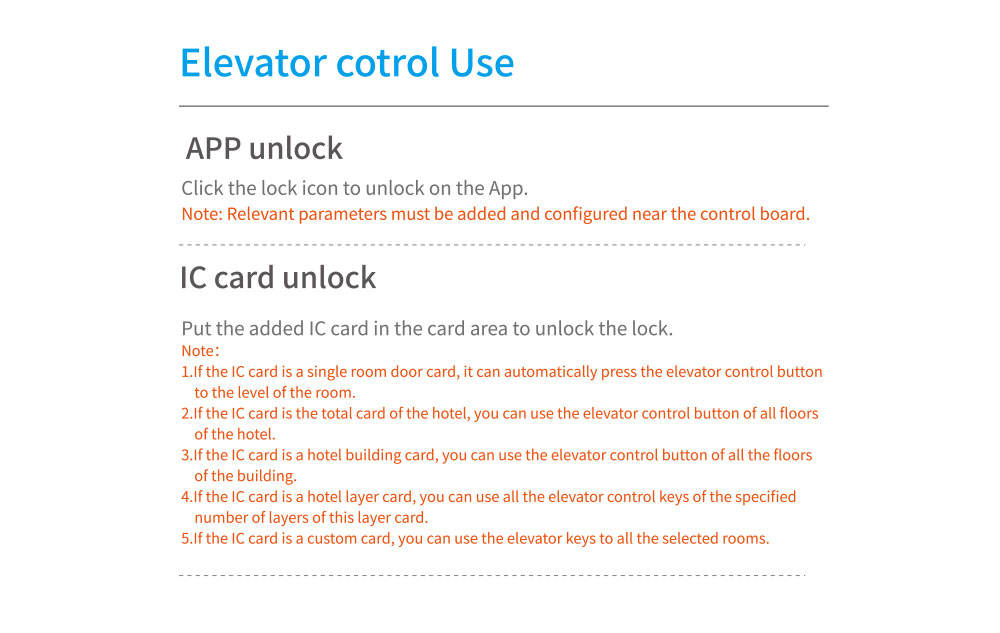

Control mode: App, IC card
IC Card Capacity： 1000pcs
Number of floors supported： Up to 64
Store logs locally：2000
APP: TThotel, TTrenting
