PRODUCT DESCRIPTION

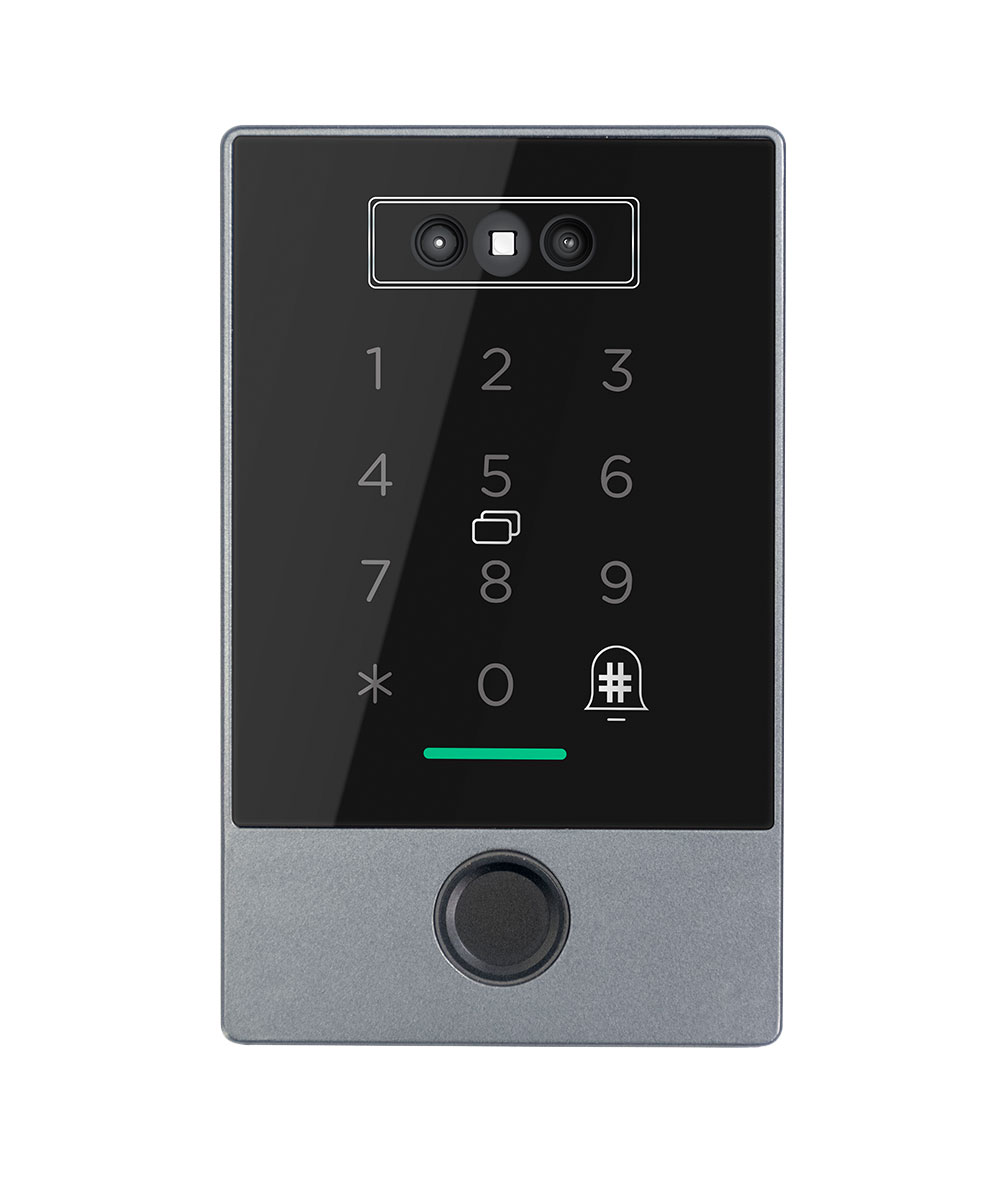

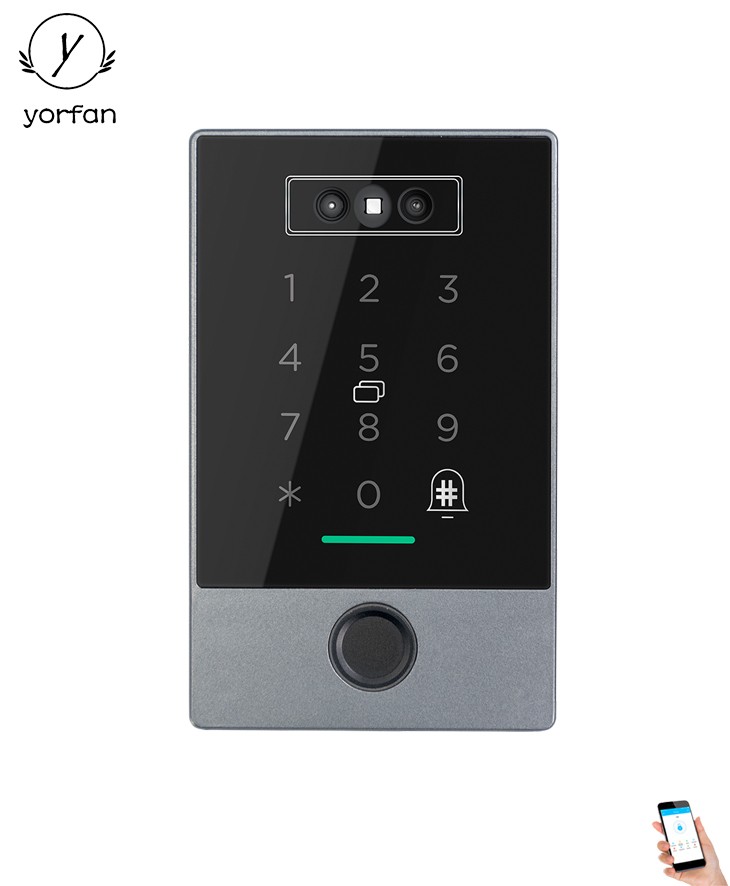

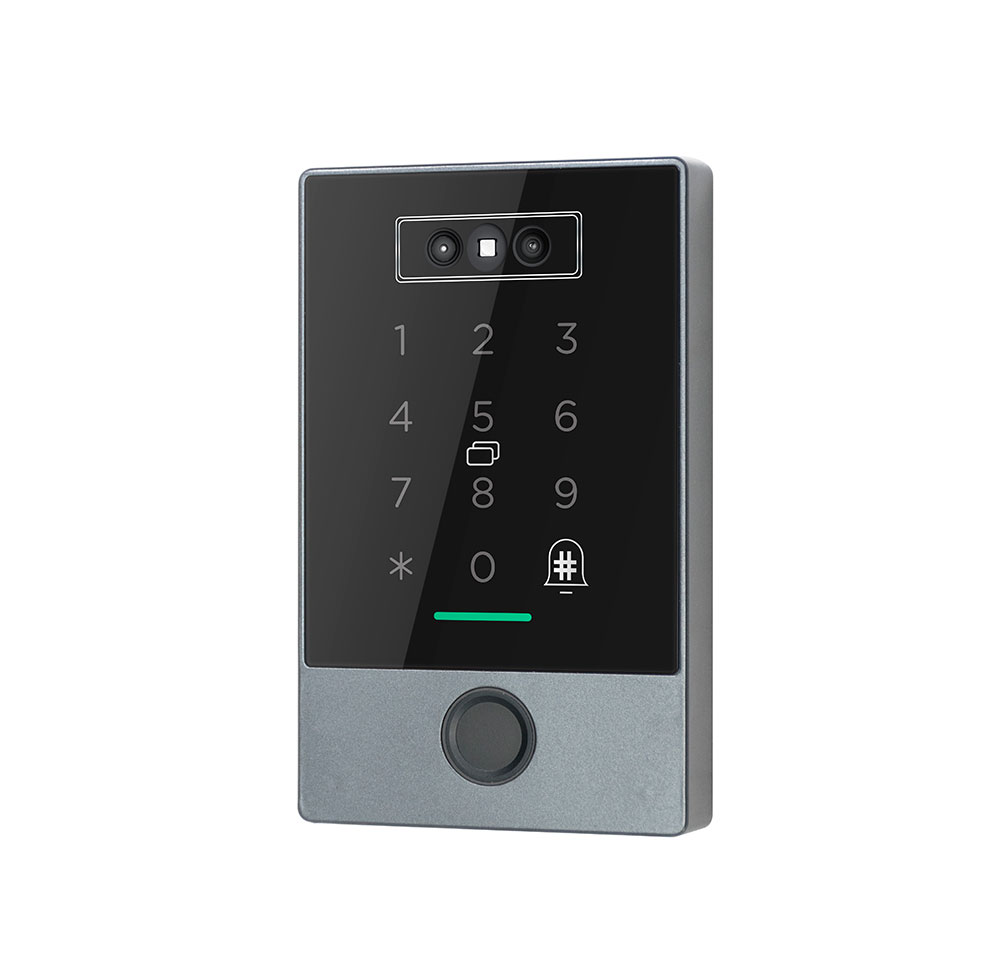

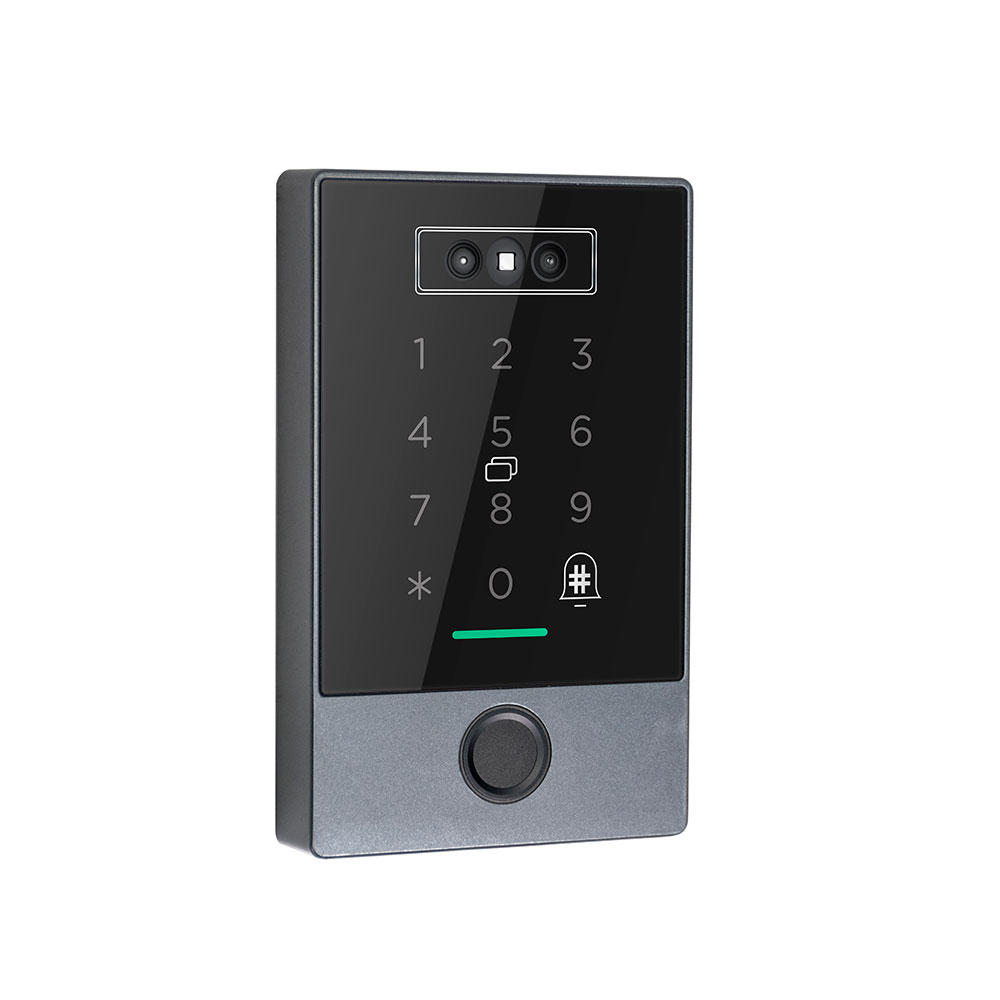

Model Number: YFBA-K3D
NO need gateway, connect with wifi directly
Features:

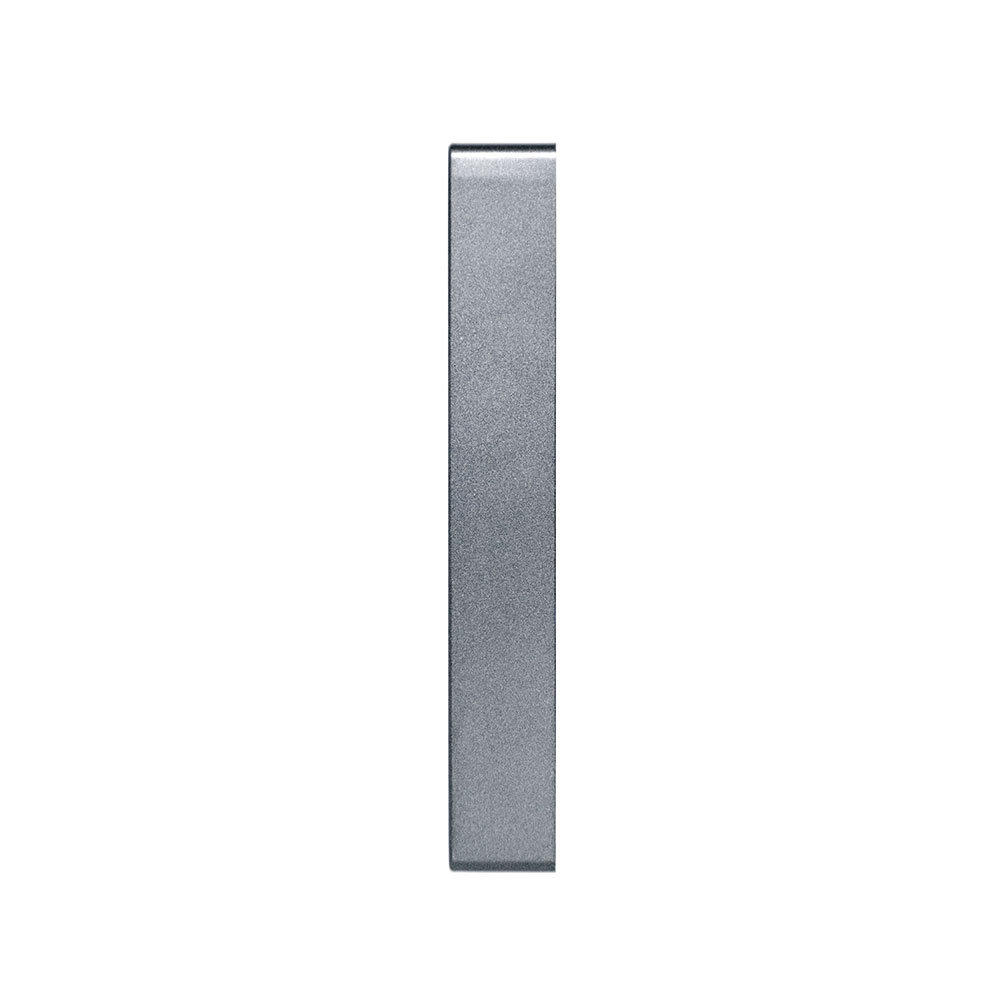

Dimension: W80mm x H130mm x T20mm
Material: ABS/ Acrylic
Supporting systems: Android 4.3/IOS7.0 above

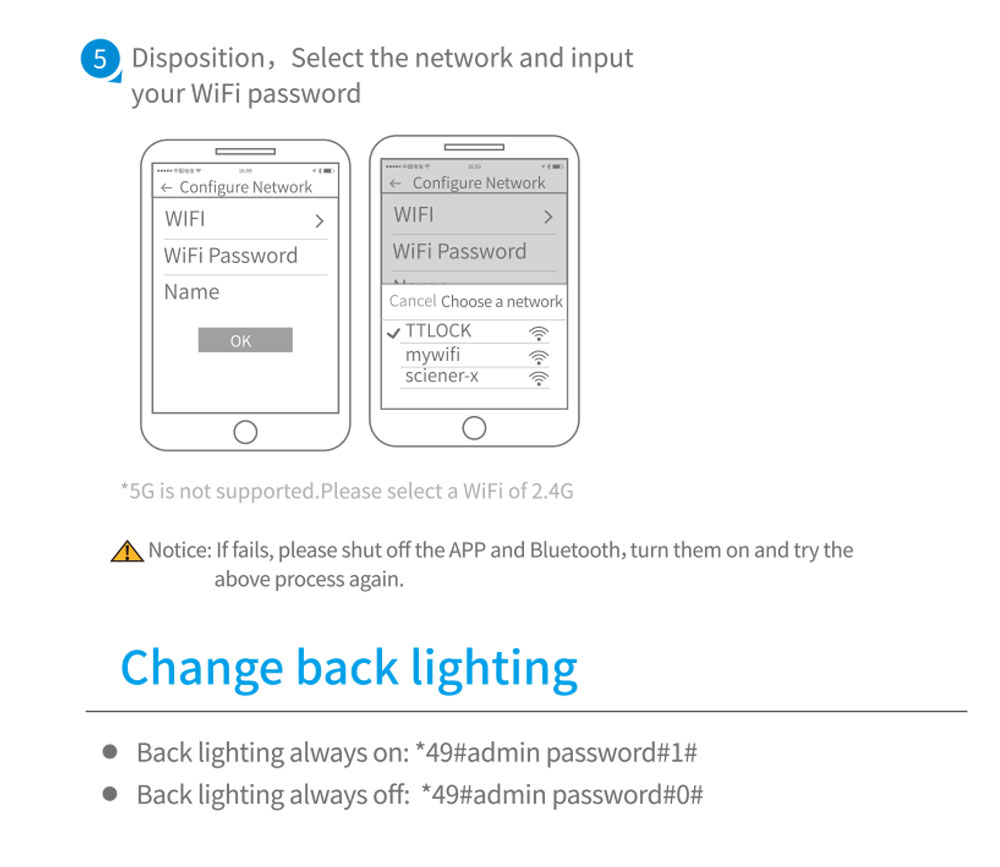

Network: WiFi 2.4G
IEEE standard: 802.11b/g/n/ax
Network encryption : WPA/WPA2/WPA3
Stand-by current : 60mA（Backlight on）
Power supply ：DC 12~24V
Waterproof level：IP67
Card capacity：2000pcs
Number of Passwords：500pcs(customized)
Working Temperature ：-20~70℃
Fingerprint capacity ：100PCS
Face storage capacity：100PCS
Palm storage capacity：100PCS
Video Intercom：Support
Unlock by Face ID,mobile APP, fingerprint, palm, password, WIFI(no need gateway), Mifare card, remote controller
Read unlock record in real-time
Delete authorization, set valid time, share e-key on APP directly
Support IOS&ANDROID system
Offer free SDK

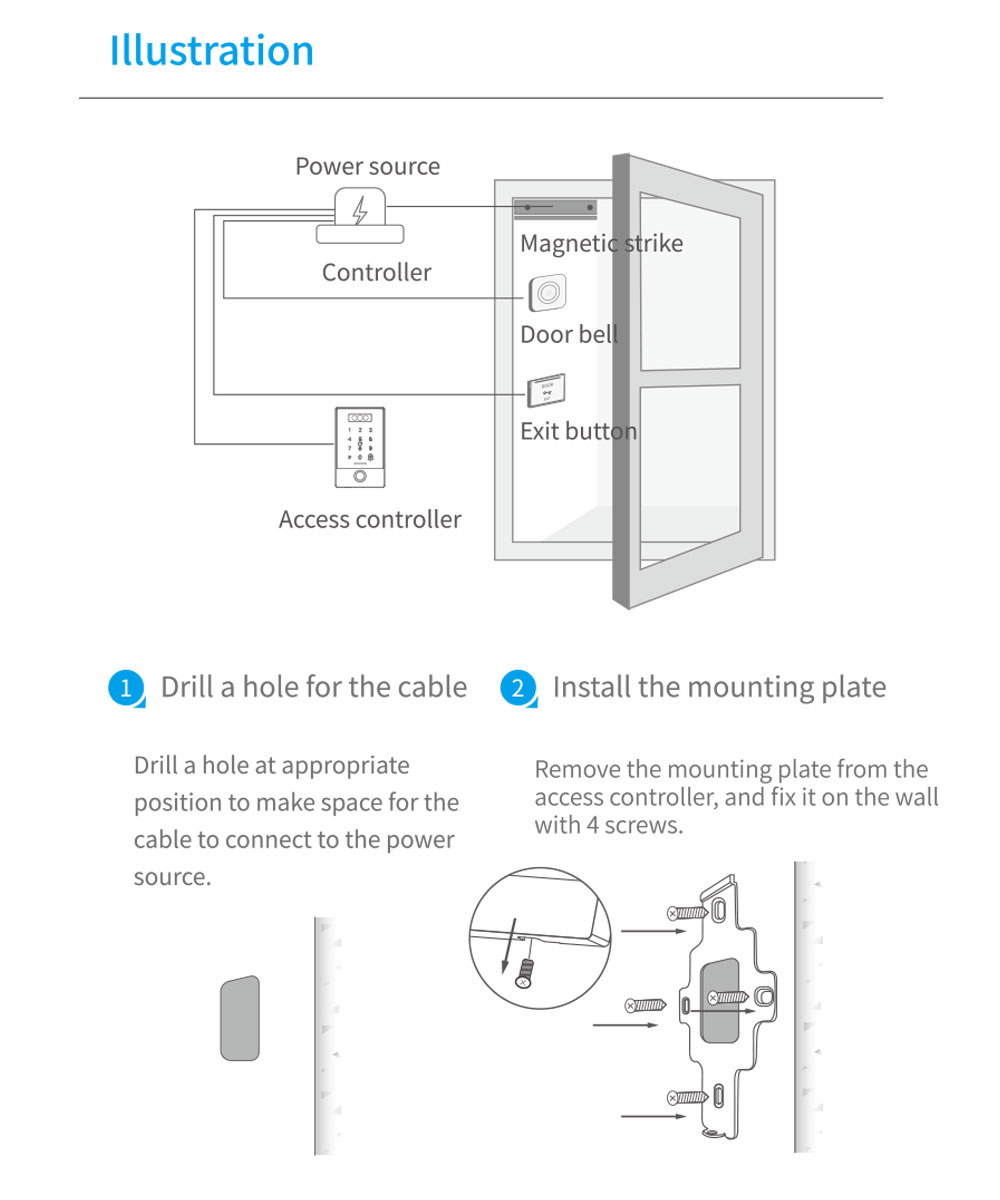

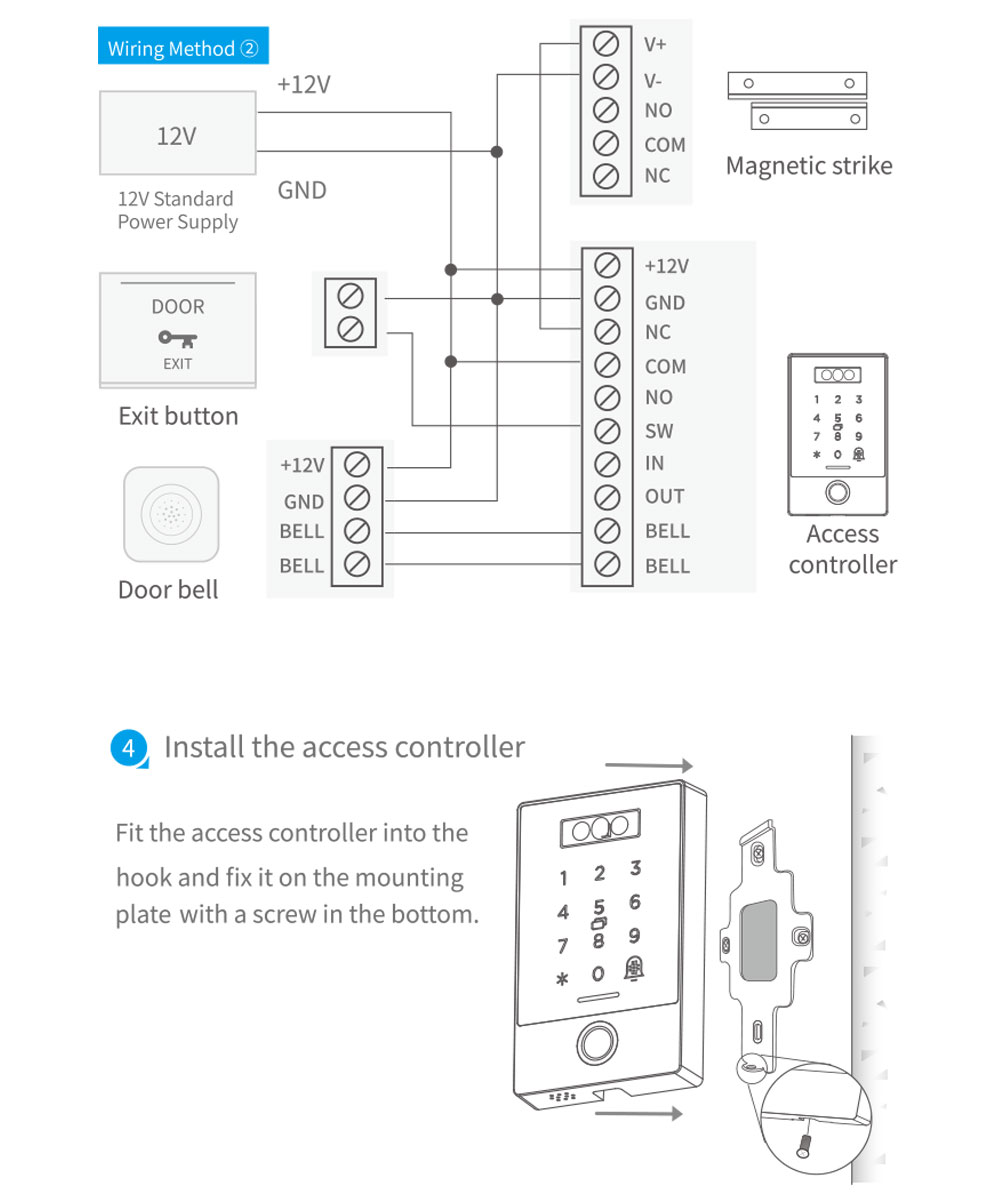

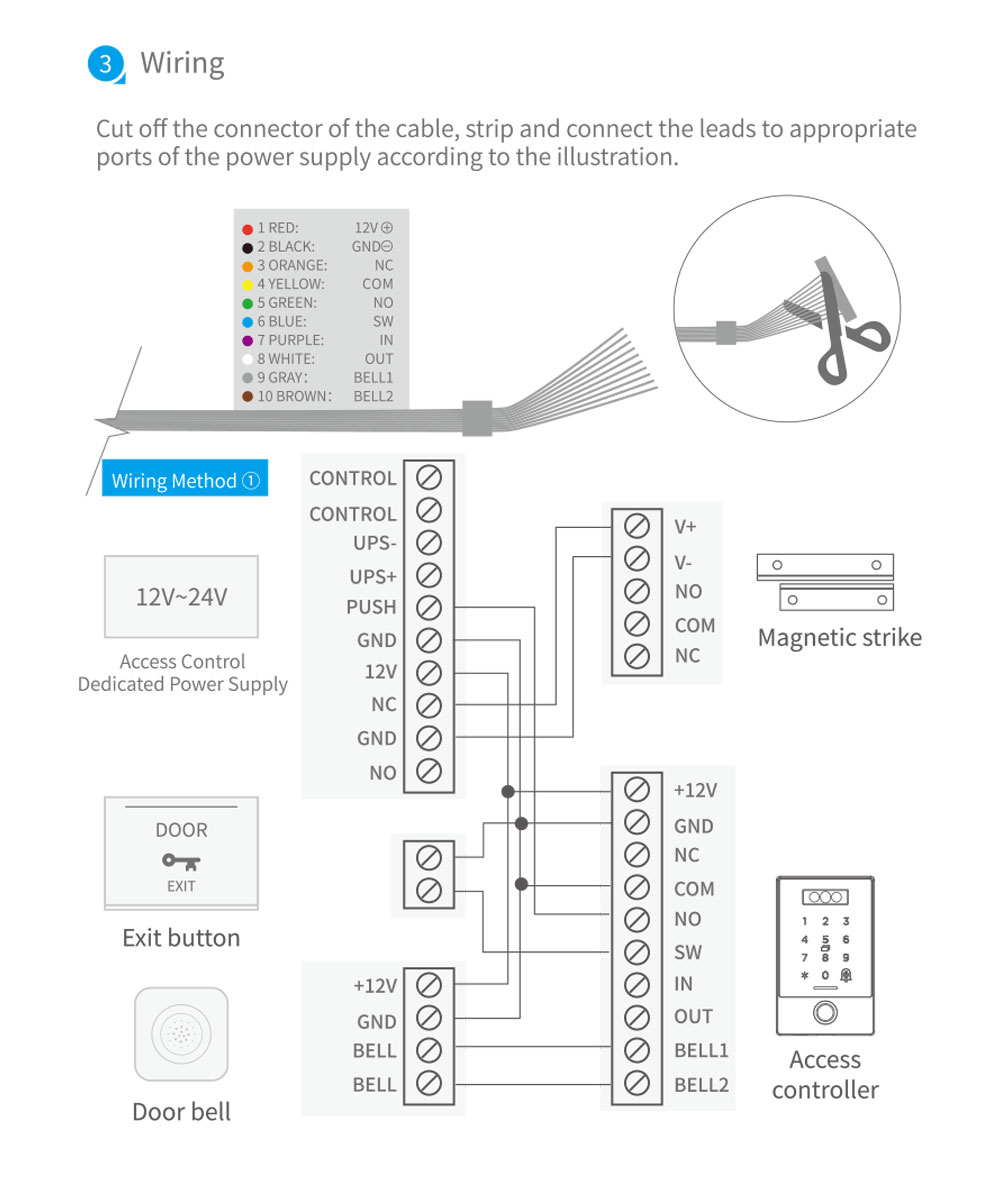

Connect electric lock directly available
Support connect with UPS power
One mobile to control different reader at the same time
Bluetooth 4.0
Support Time attendance function

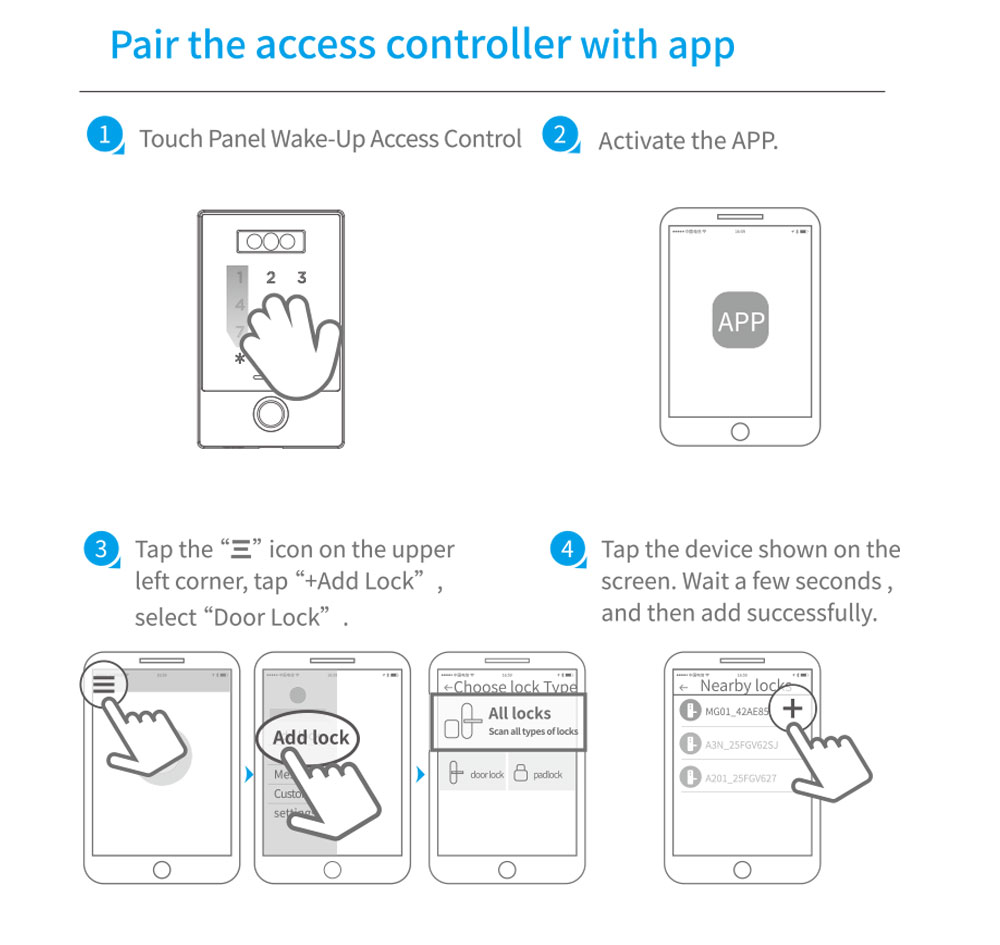

APP: TTlock, TThotel, TTrenting
