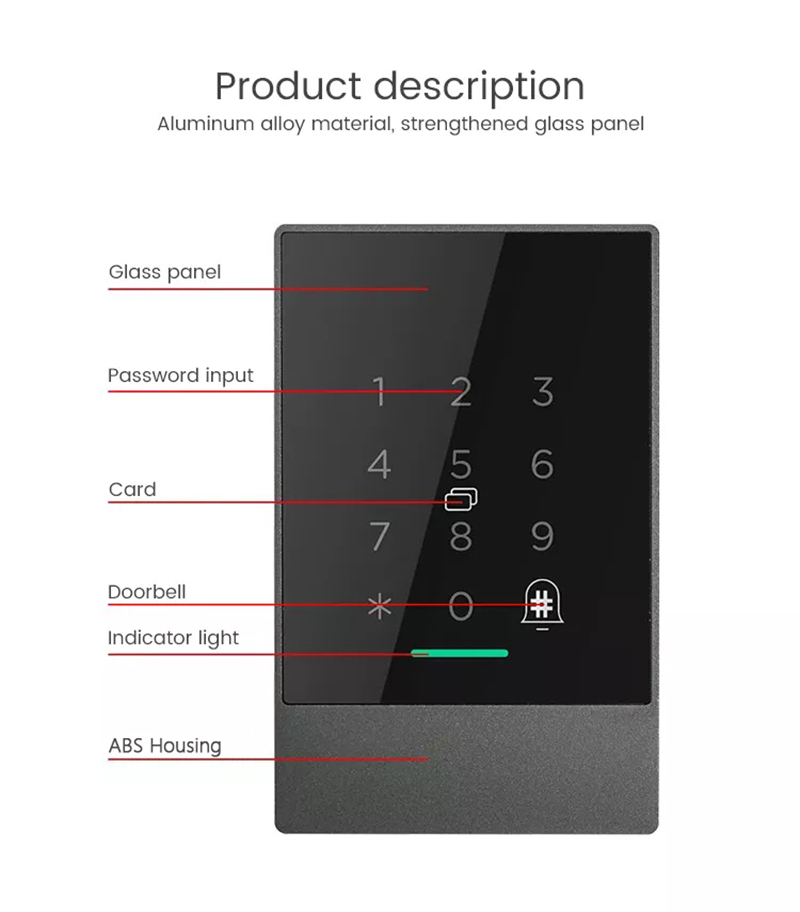

PRODUCT DESCRIPTION

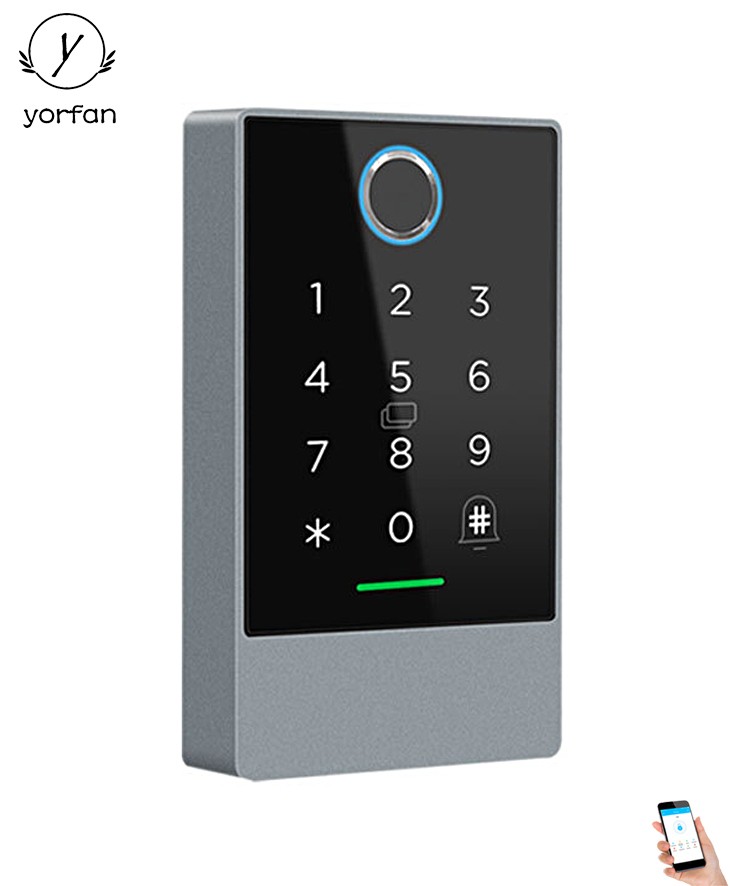

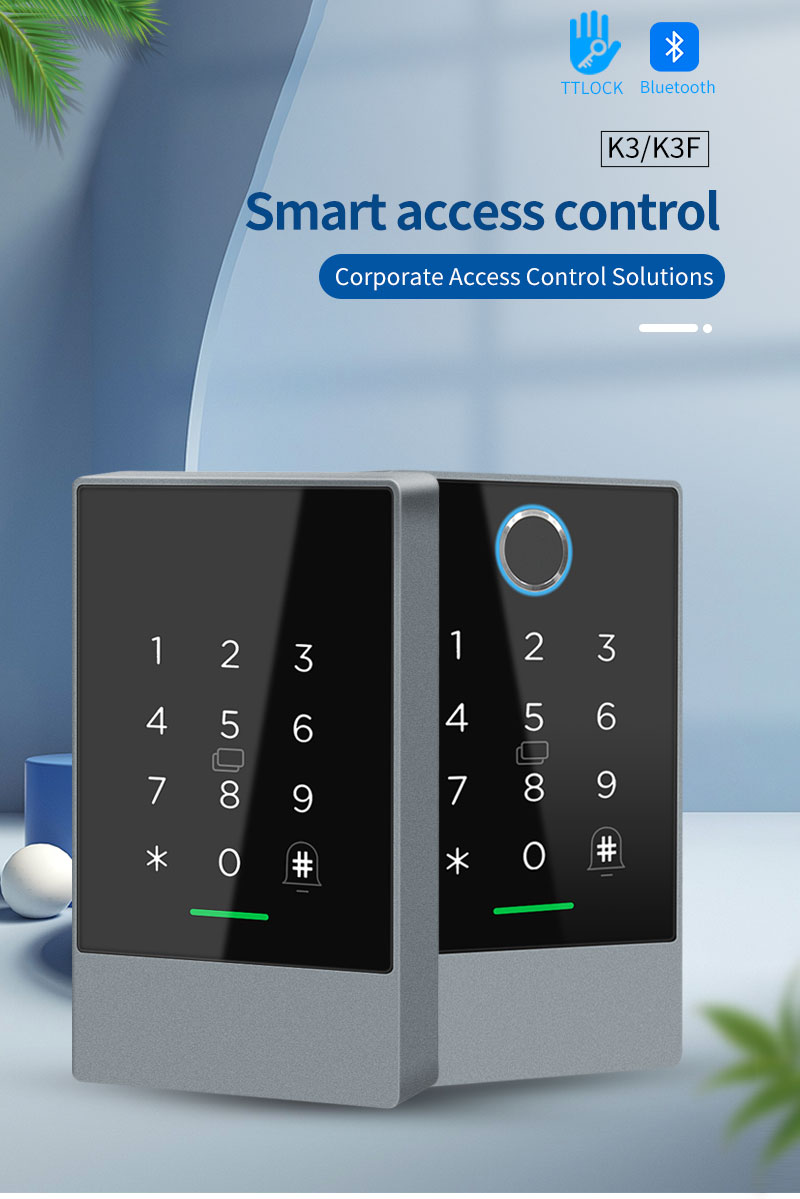

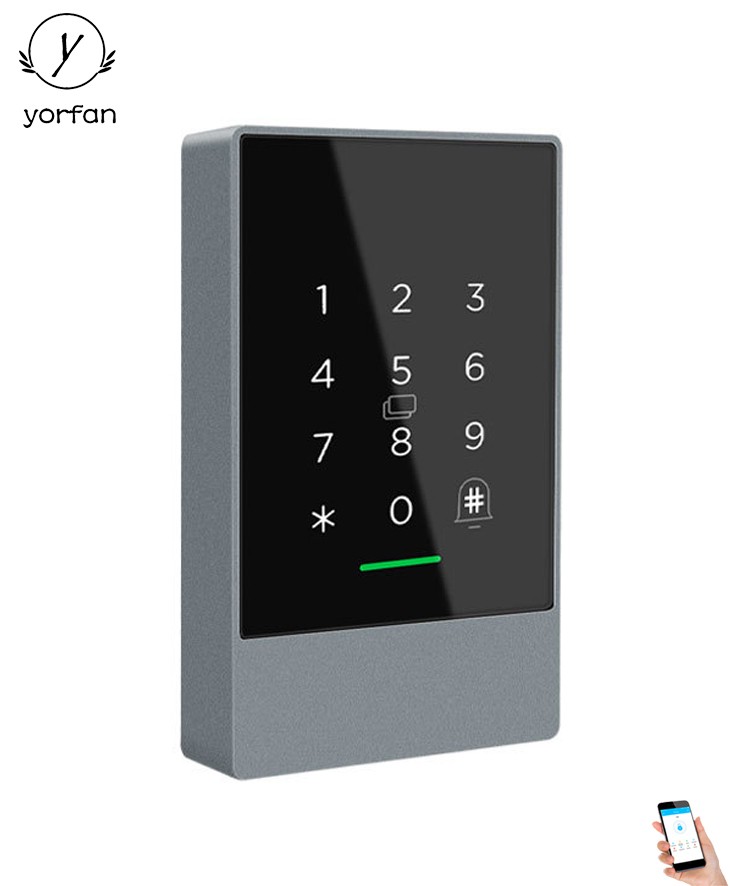

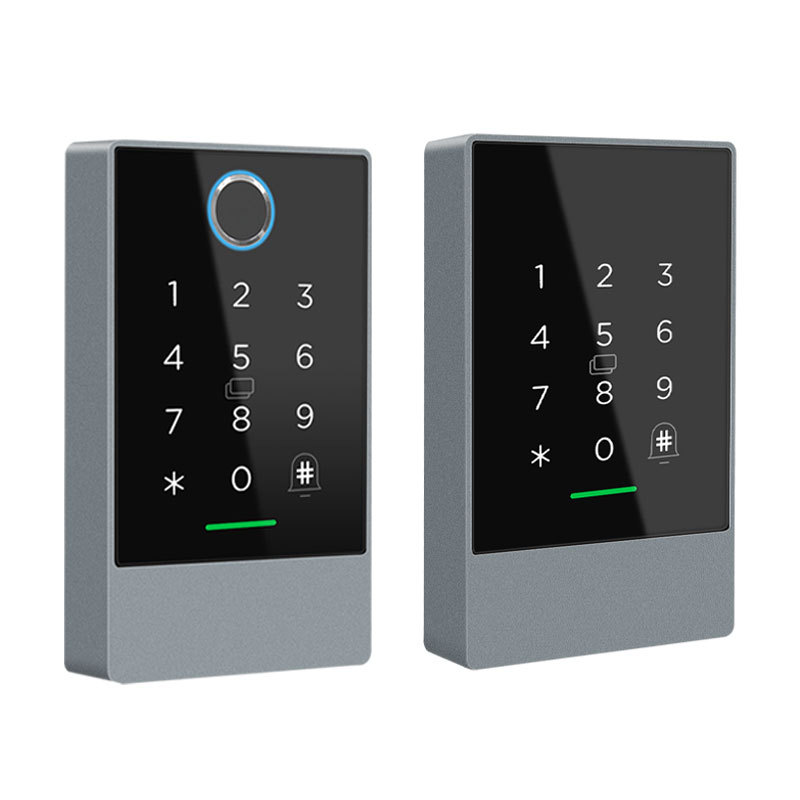

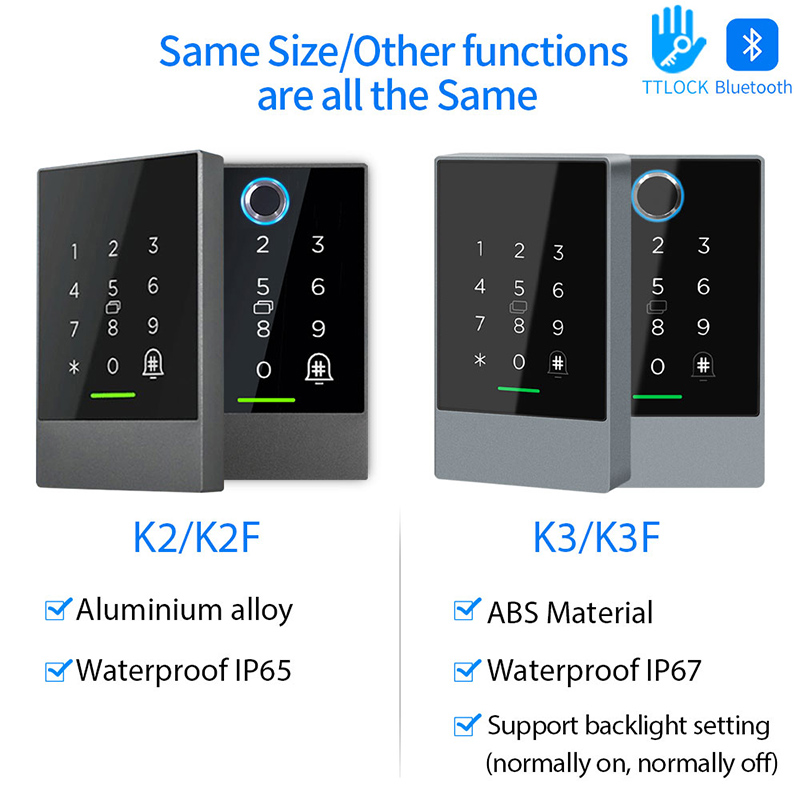

Model Number: YFBA-K3(without fingerprint) / YFBAF-K3F(with fingerprint)/YFBA-K3W(TTlock wifi)/YFBAF-K3FW(TTlock wifi)
K3FW and K3W no need gateway to work with wifi
Features:

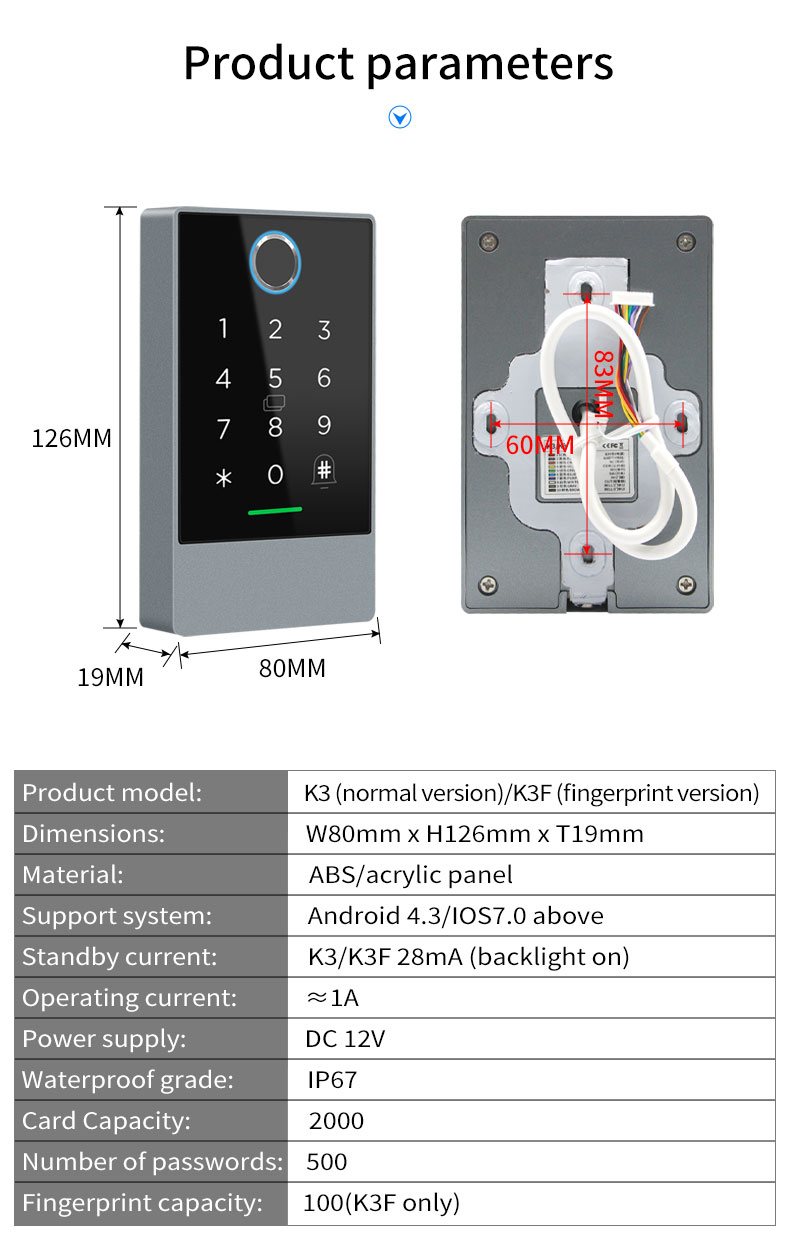

Dimension: W80mm x H126mm x T19mm
Supporting system: Android 4.3/IOS7.0 above
Network: WiFi 2.4G
IEEE standard: 802.11b/g/n/ax
Network encryption : WPA/WPA2/WPA3
Stand-by current : 20mA（Backlight off）50mA（Backlight on）
Operating current : ≈1A
Power supply ：DC 12~24V
Waterproof level ：IP67
Working Temperature：-20~70℃

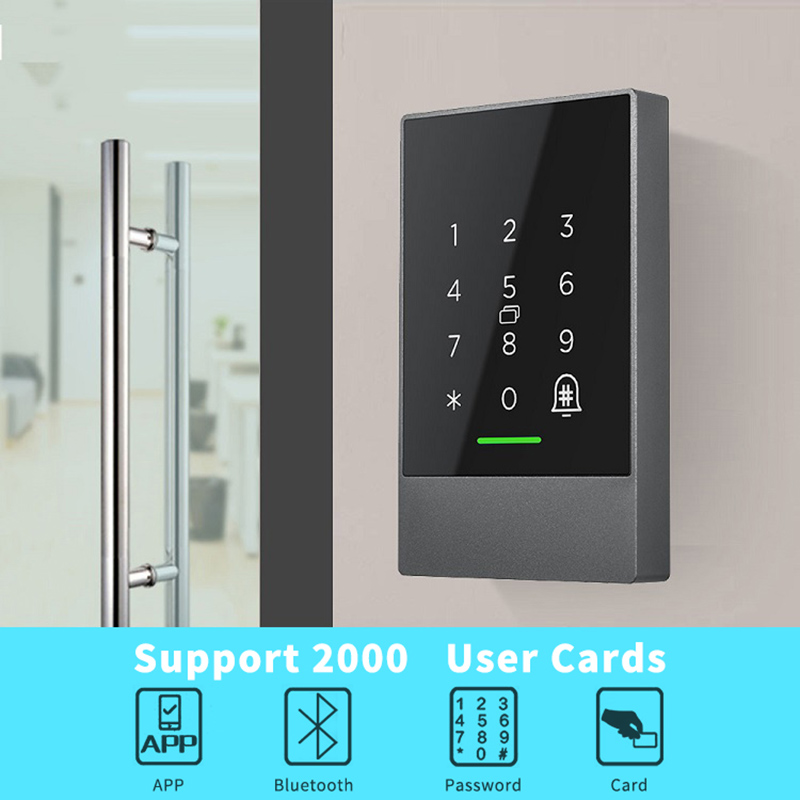

Card capacity：2000pcs
Number of Passwords(customized)：500pcs
Fingerprint capacity：100pcs(K3FW,K3F)

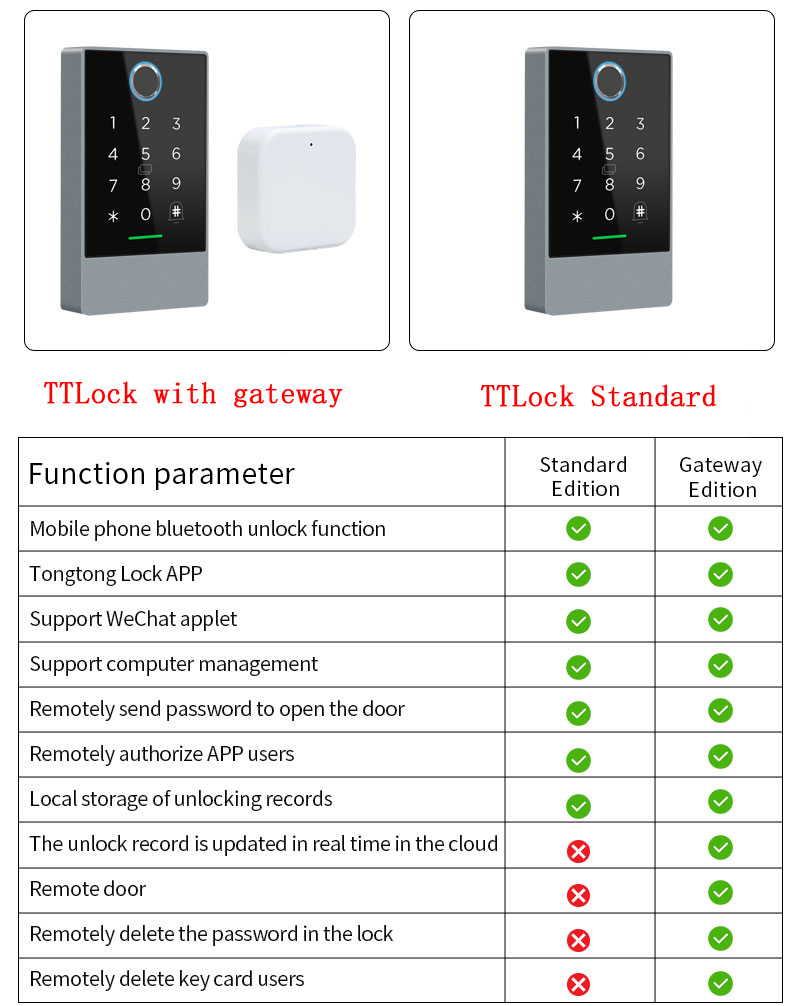

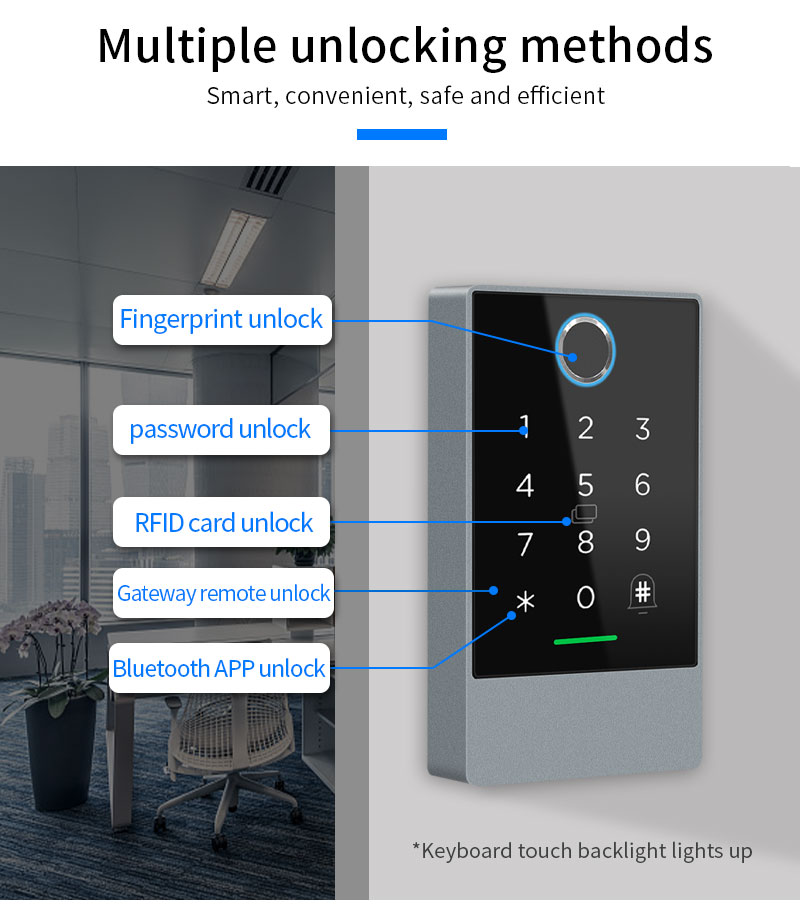

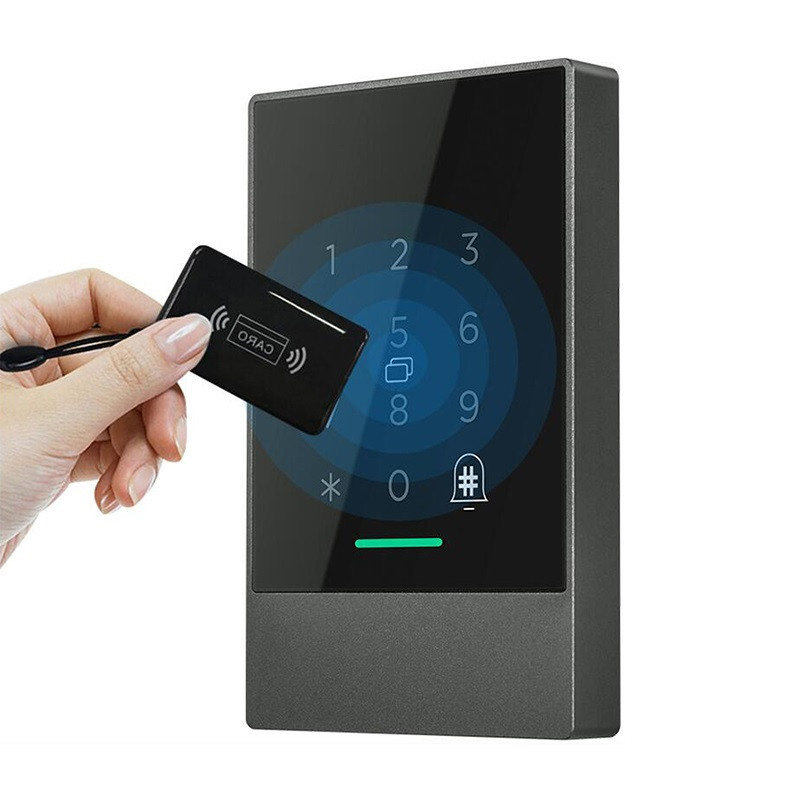

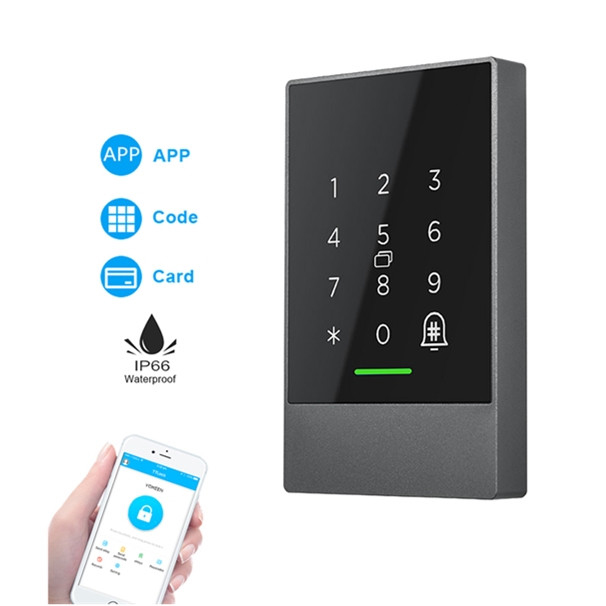

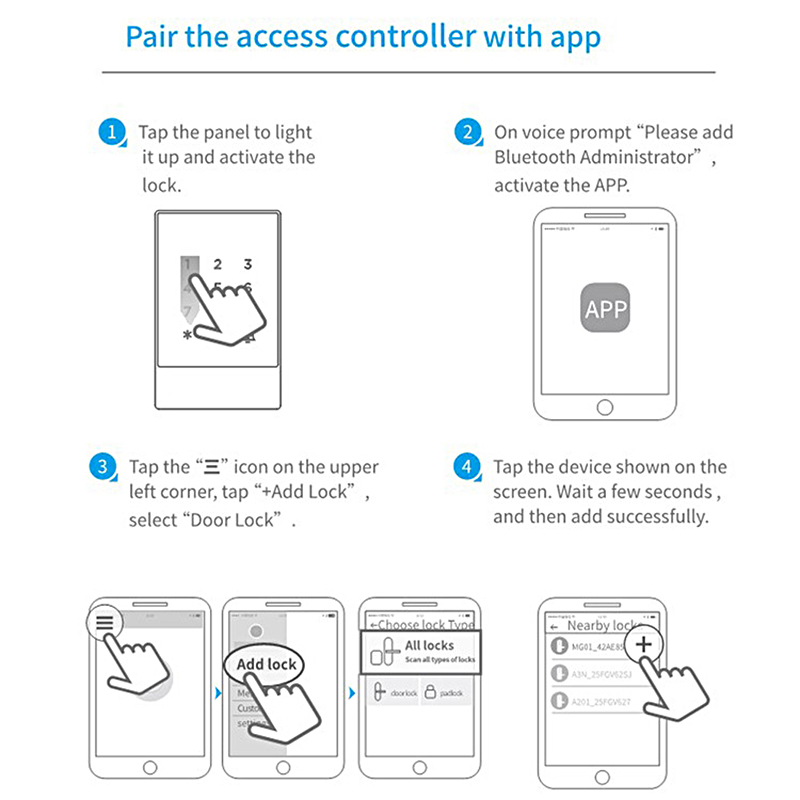

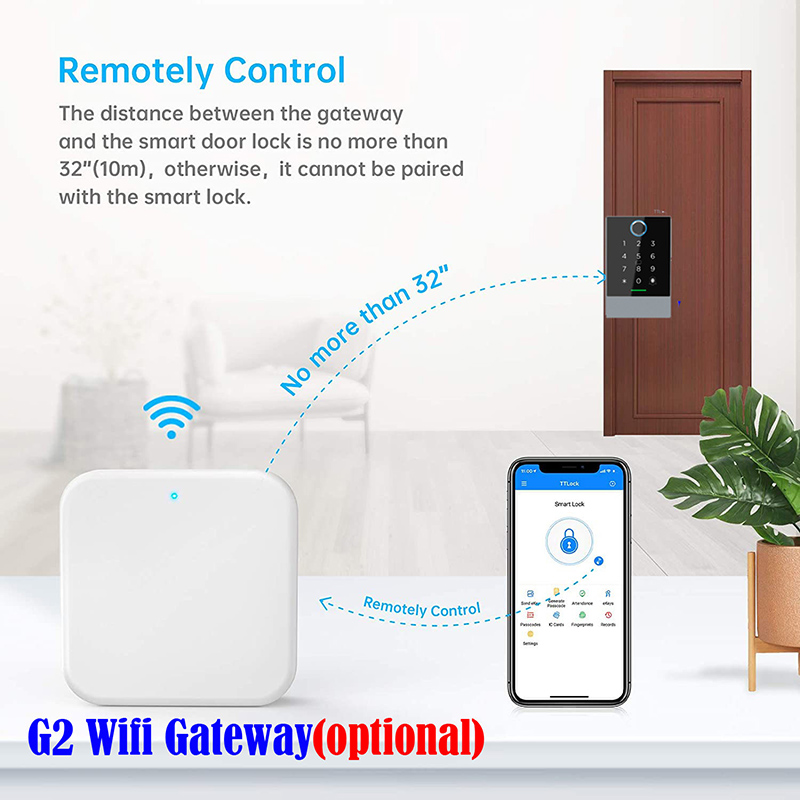

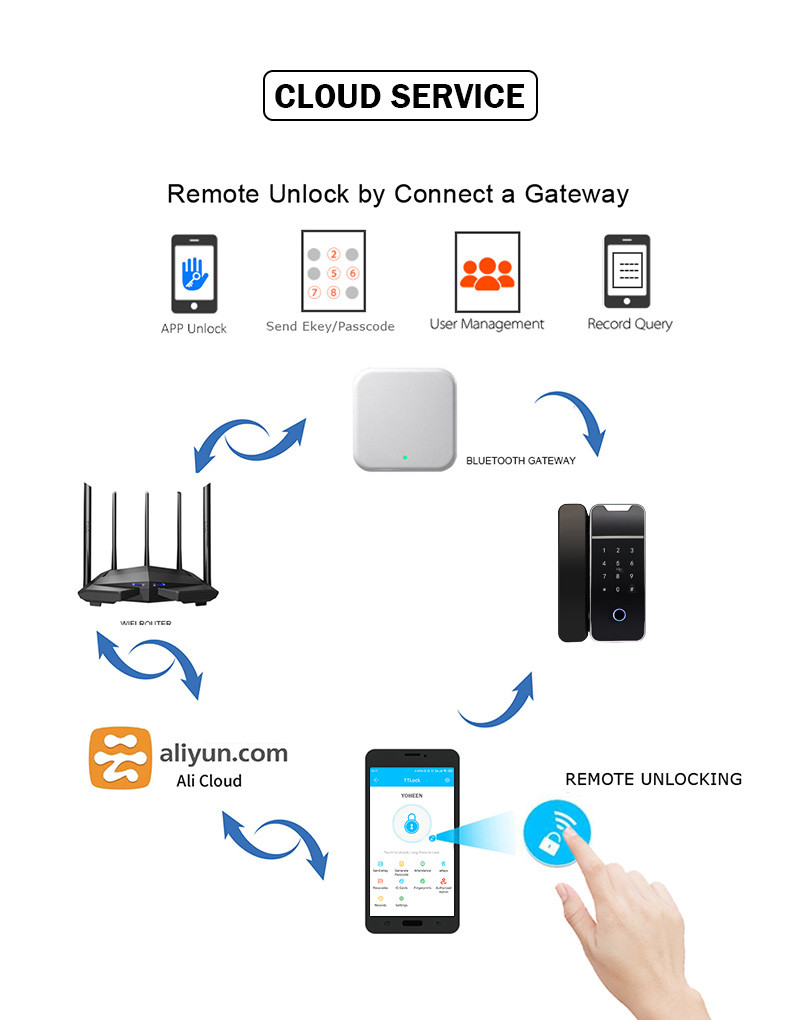

Unlock by mobile APP, password, WIFI(need gateway or no need gateway can choose), Mifare card, fingerprint(K3F), remote controller
Read unlock record in real-time

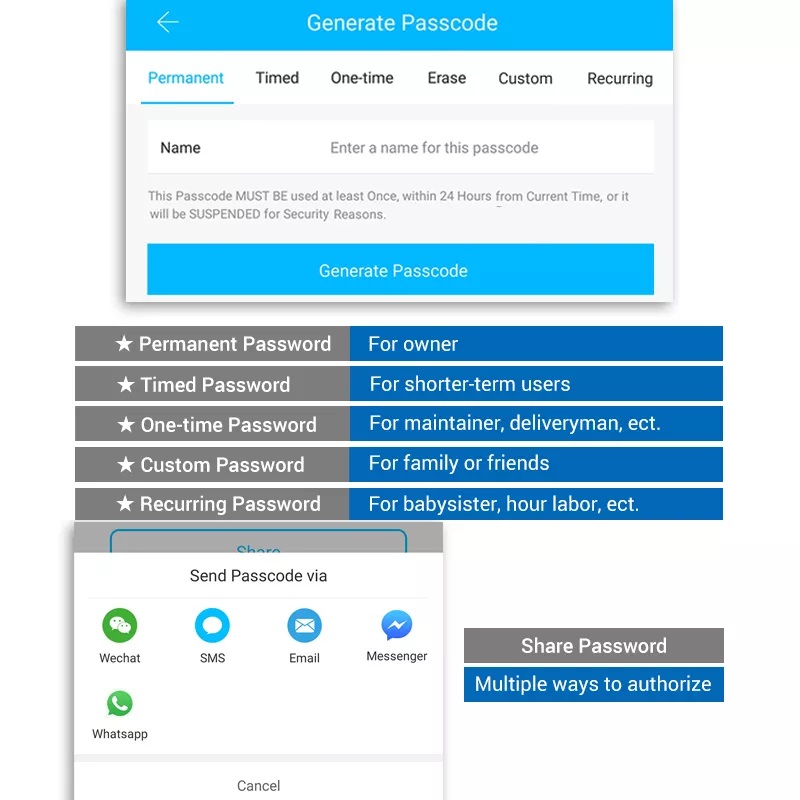

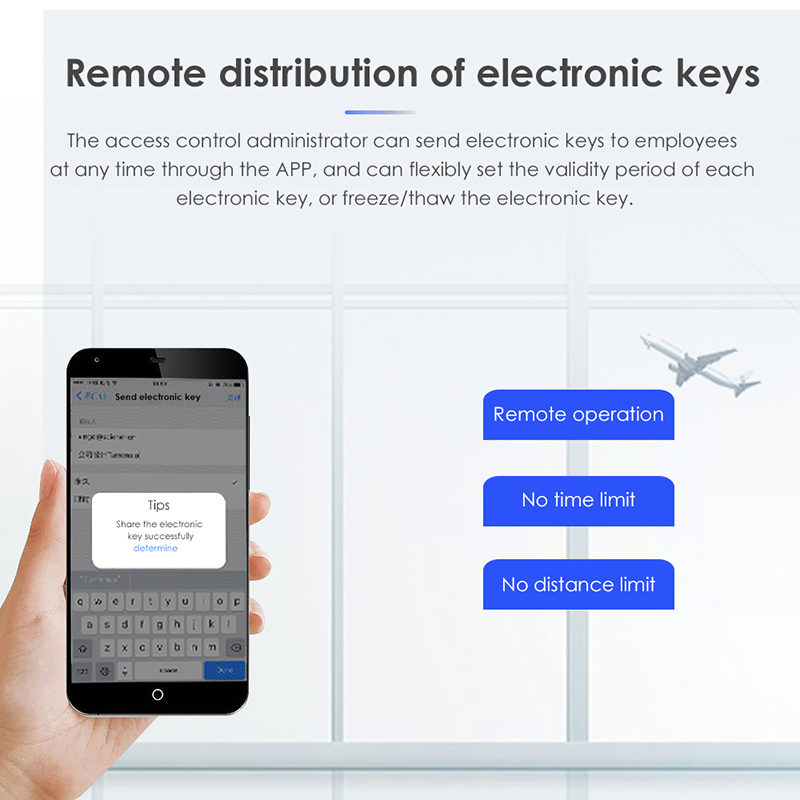

Delete authorization, set valid time, share e-key on APP directly
Support IOS&ANDROID system
Offer free SDK

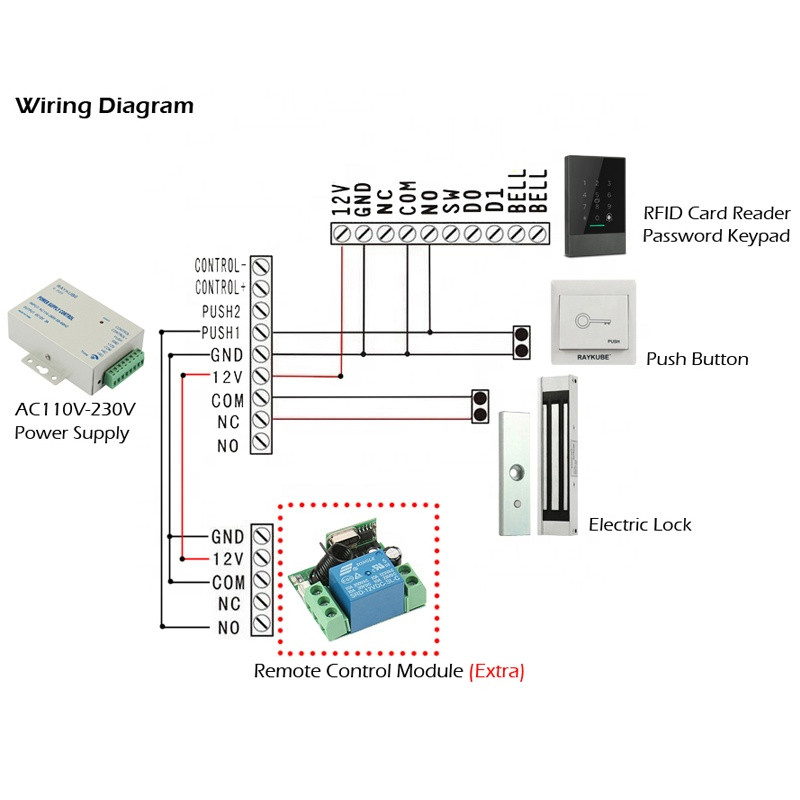

Connect electric lock directly available
Support connect with UPS power
One mobile to control different reader at the same time

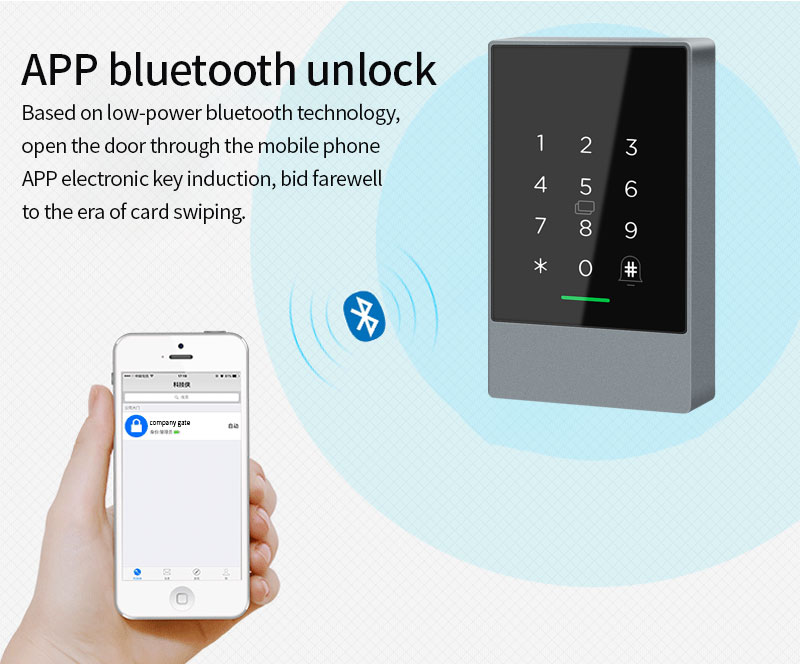

Bluetooth 4.0
Support Time attendance function

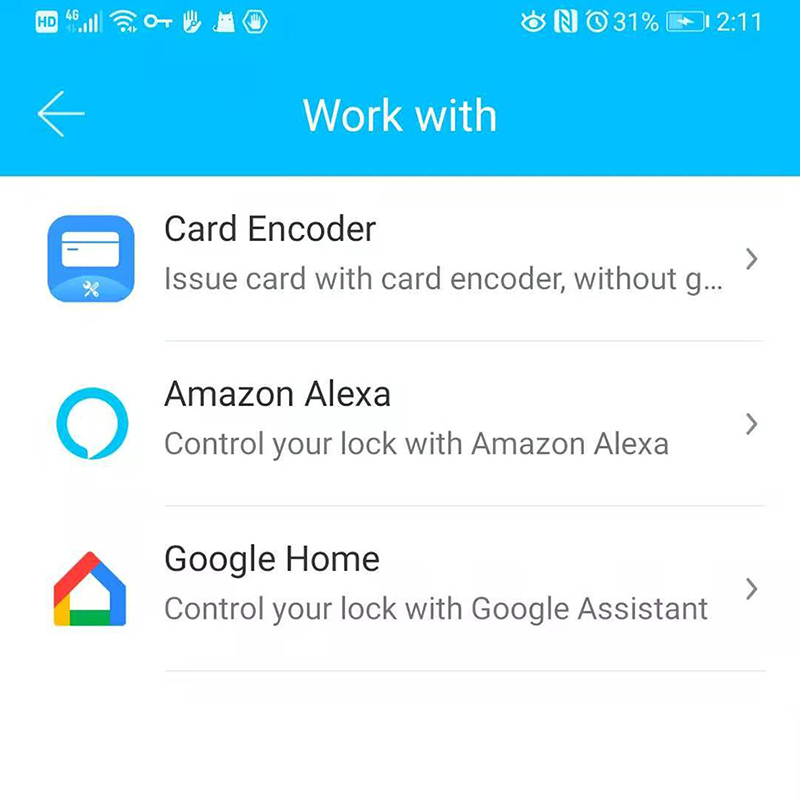

APP: TTlock, TThotel, TTrenting
