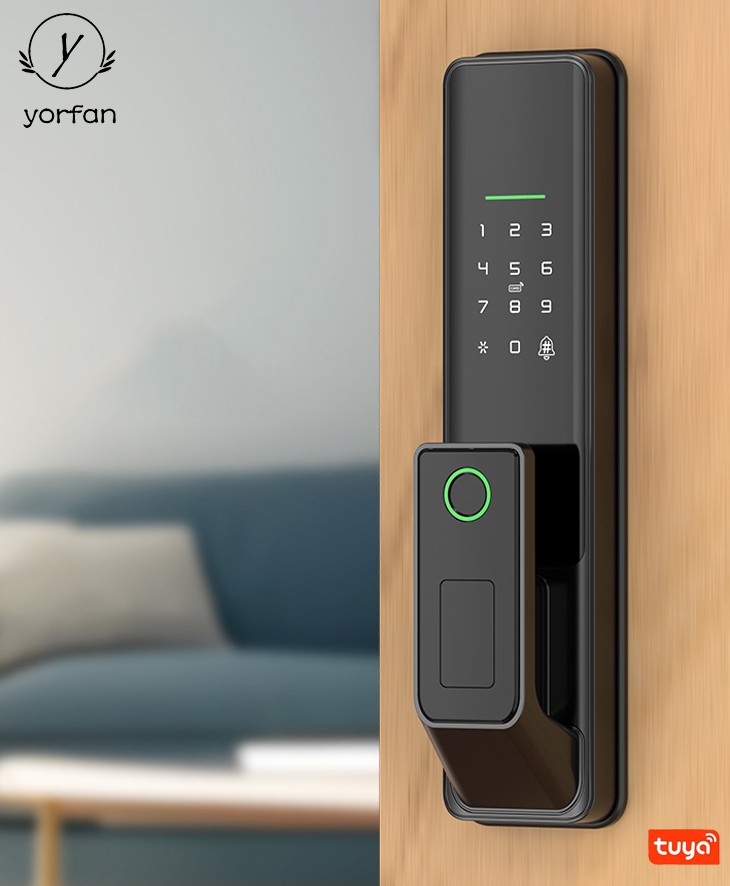

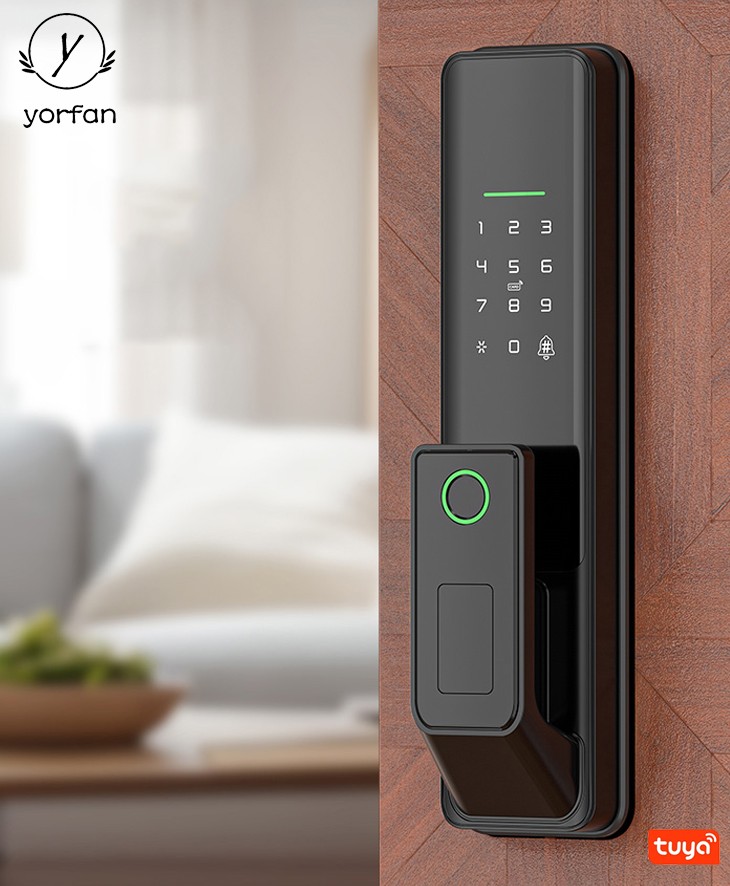

Tuya Zigbee Indoor Lock YFFZ-G1

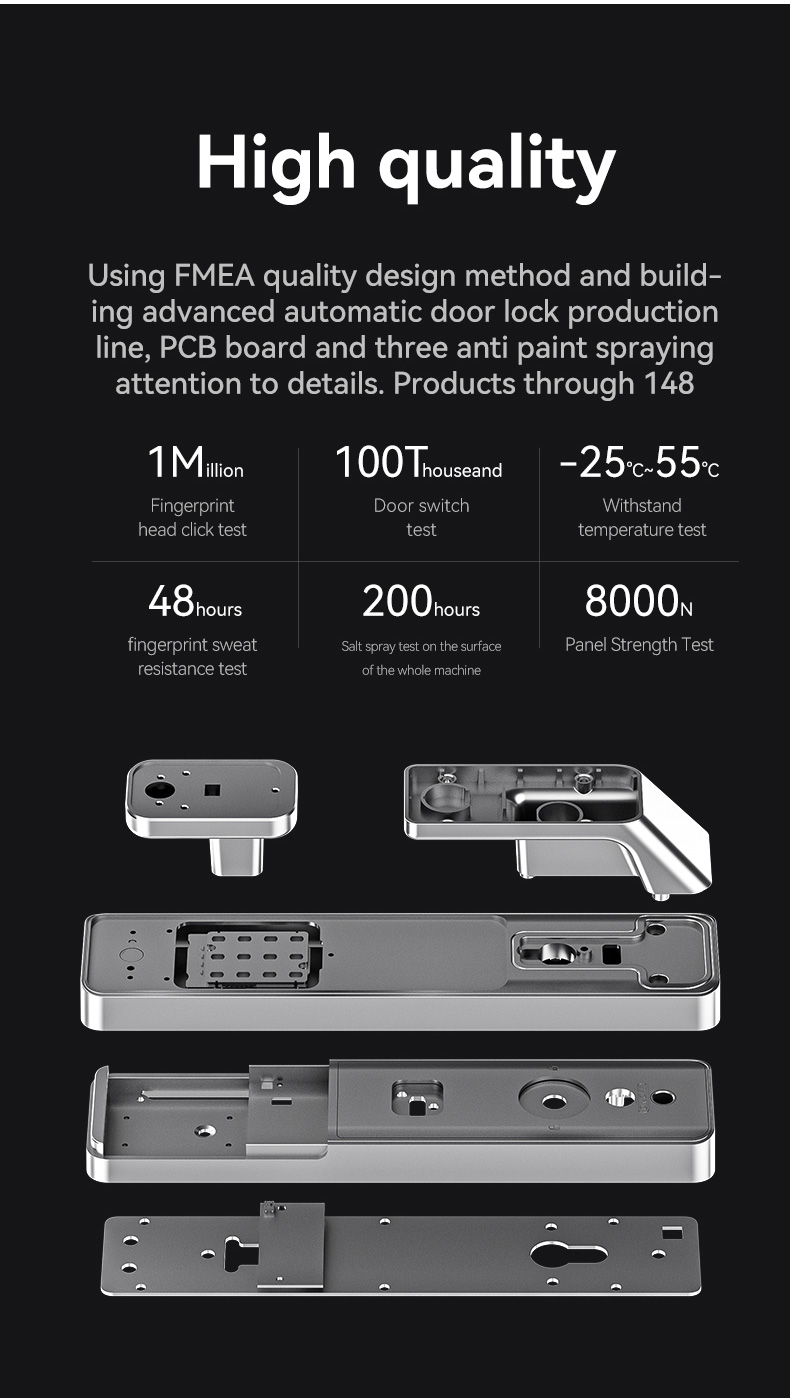

Aluminum alloy material

electronic 5050 mortise

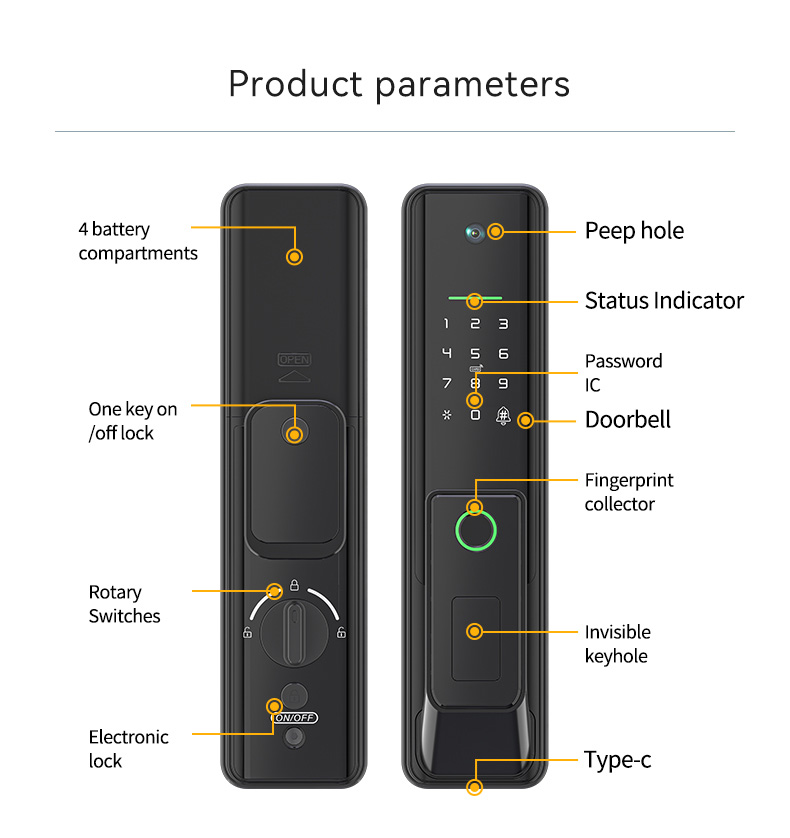

PRODUCT DESCRIPTION

Model: YFFZ-G1


Material: aluminum alloy

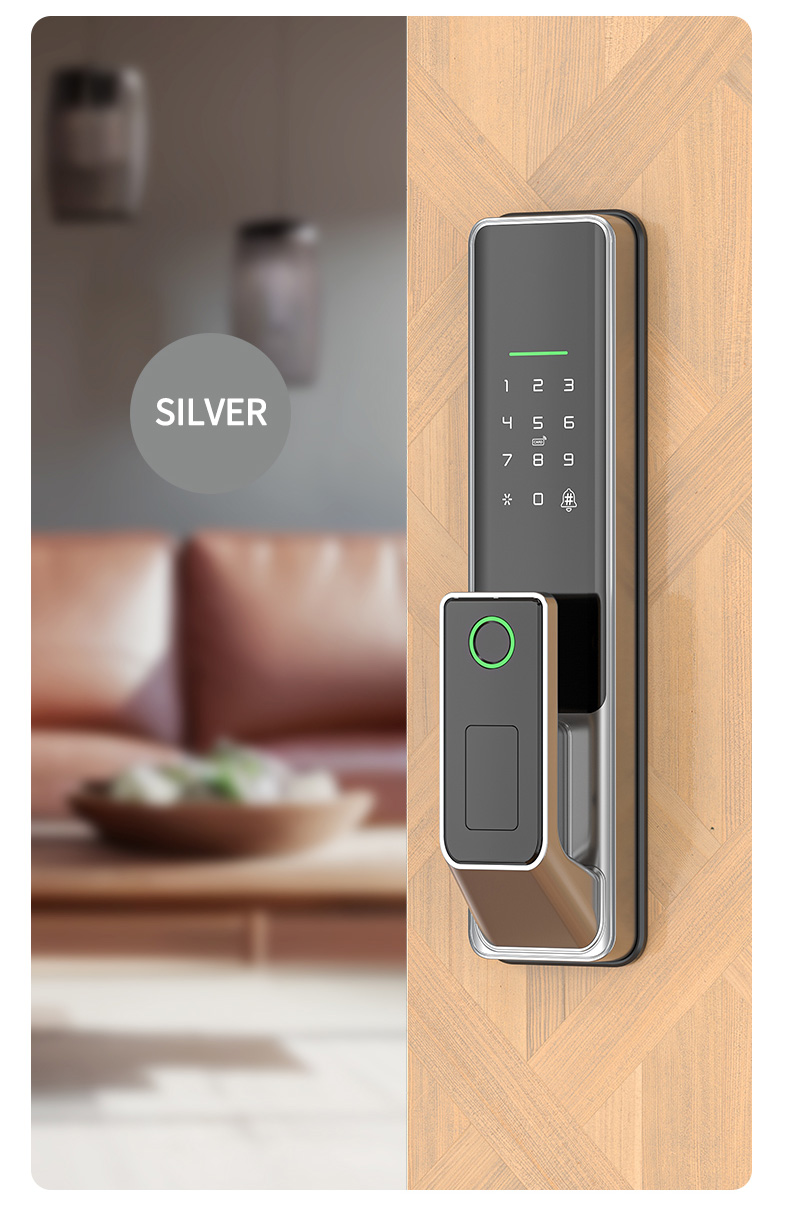

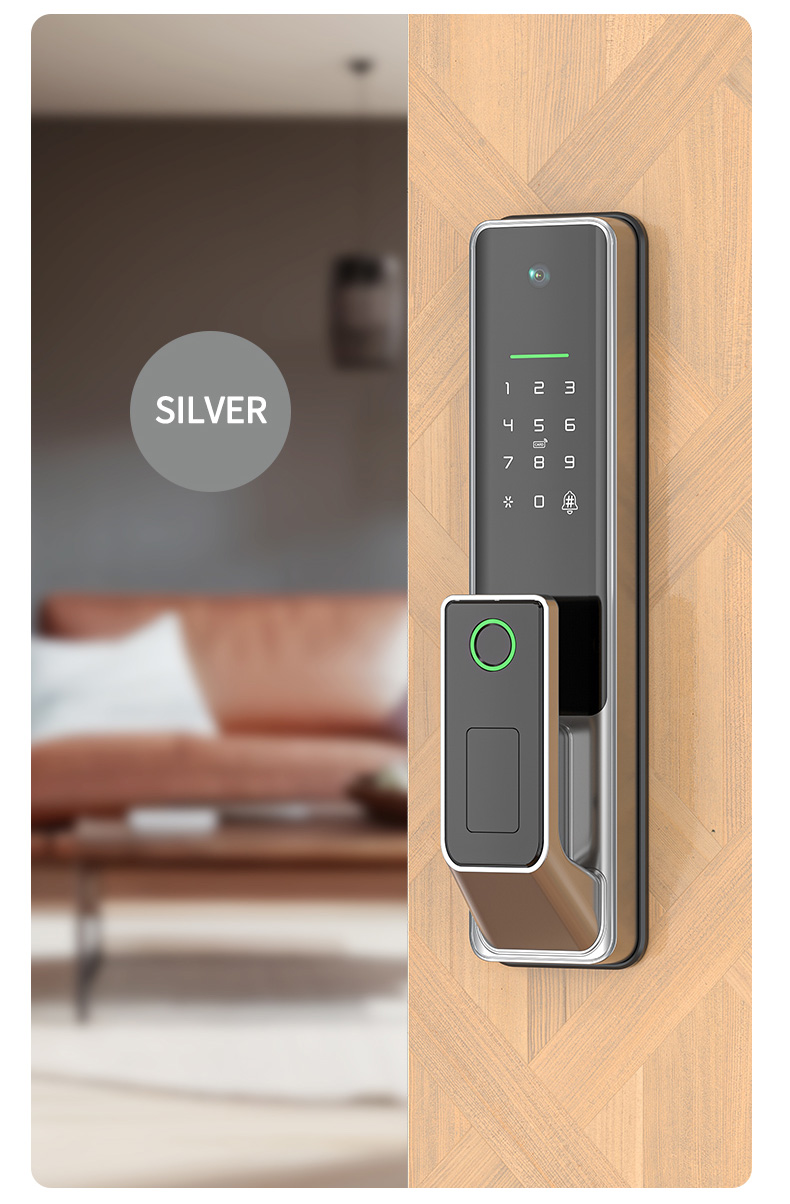

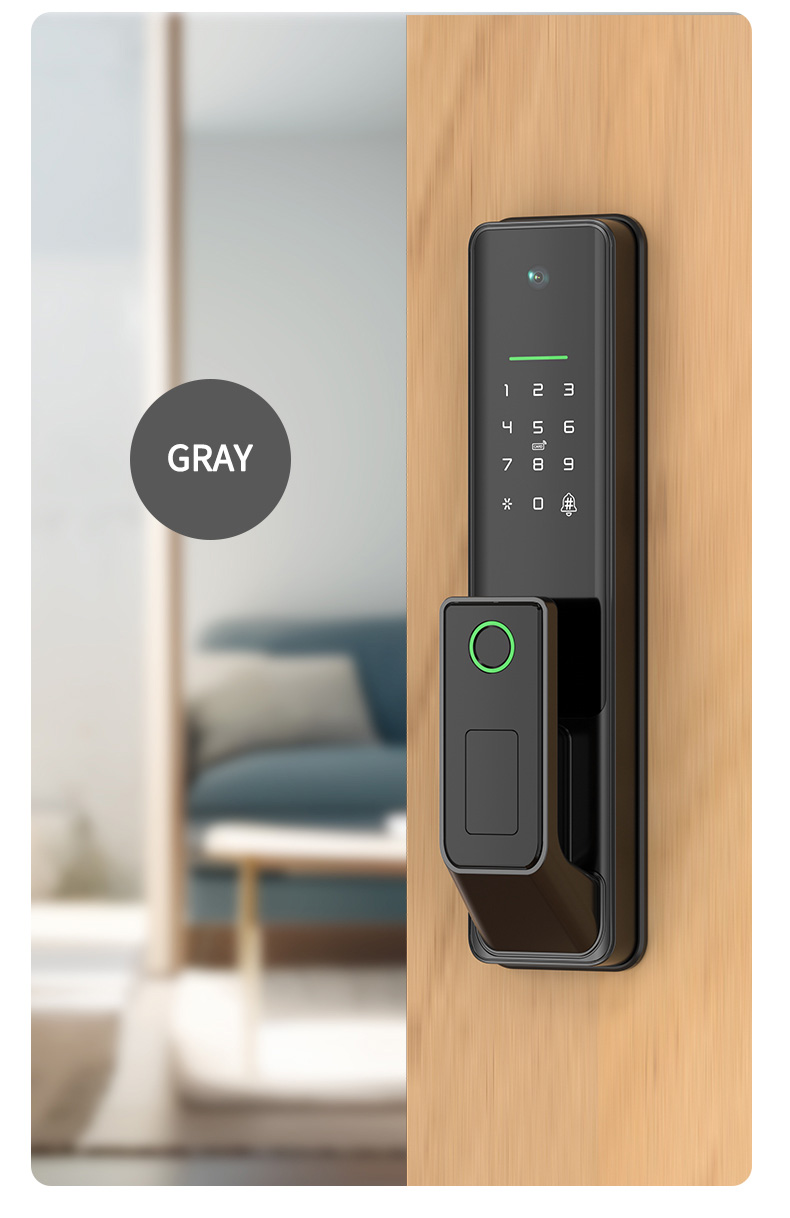

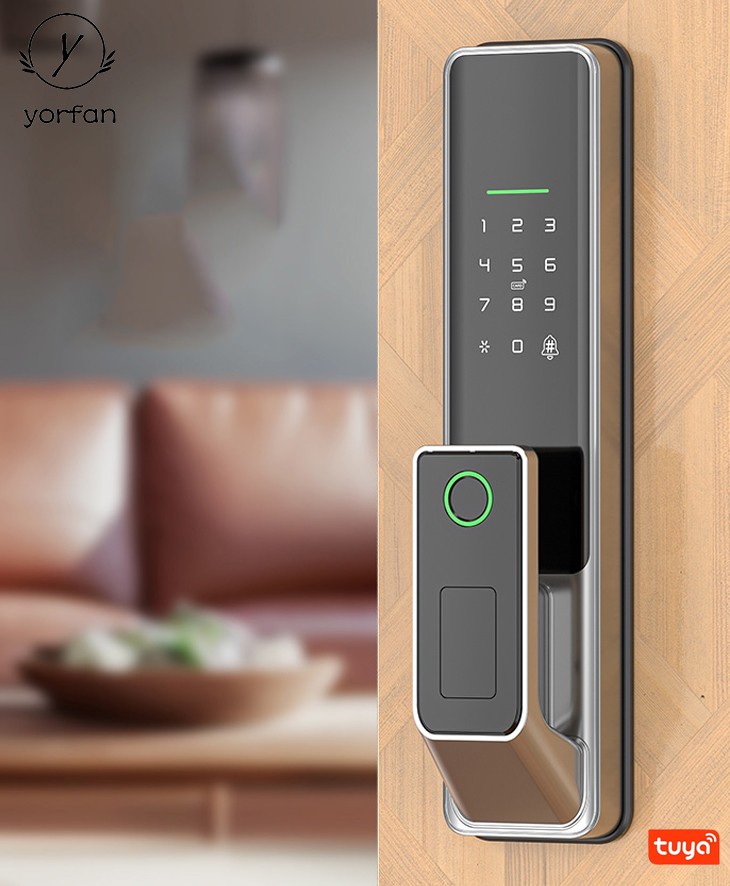

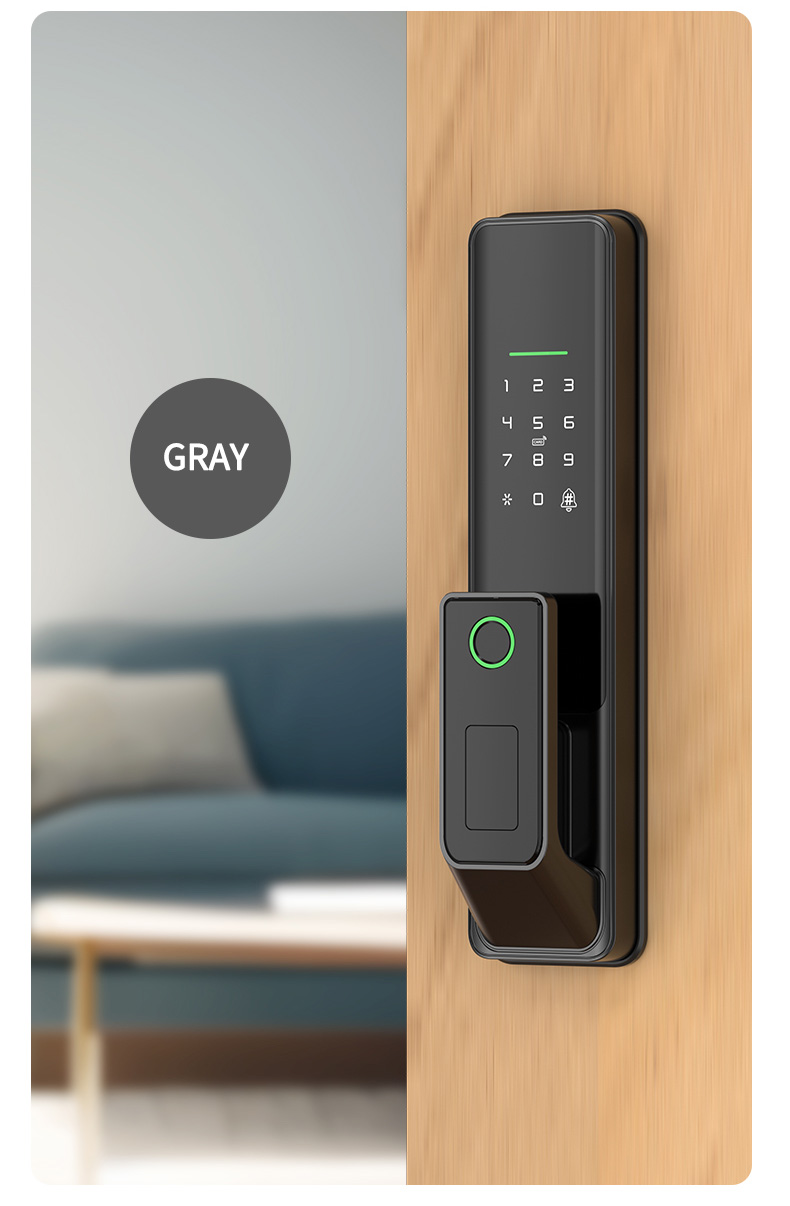

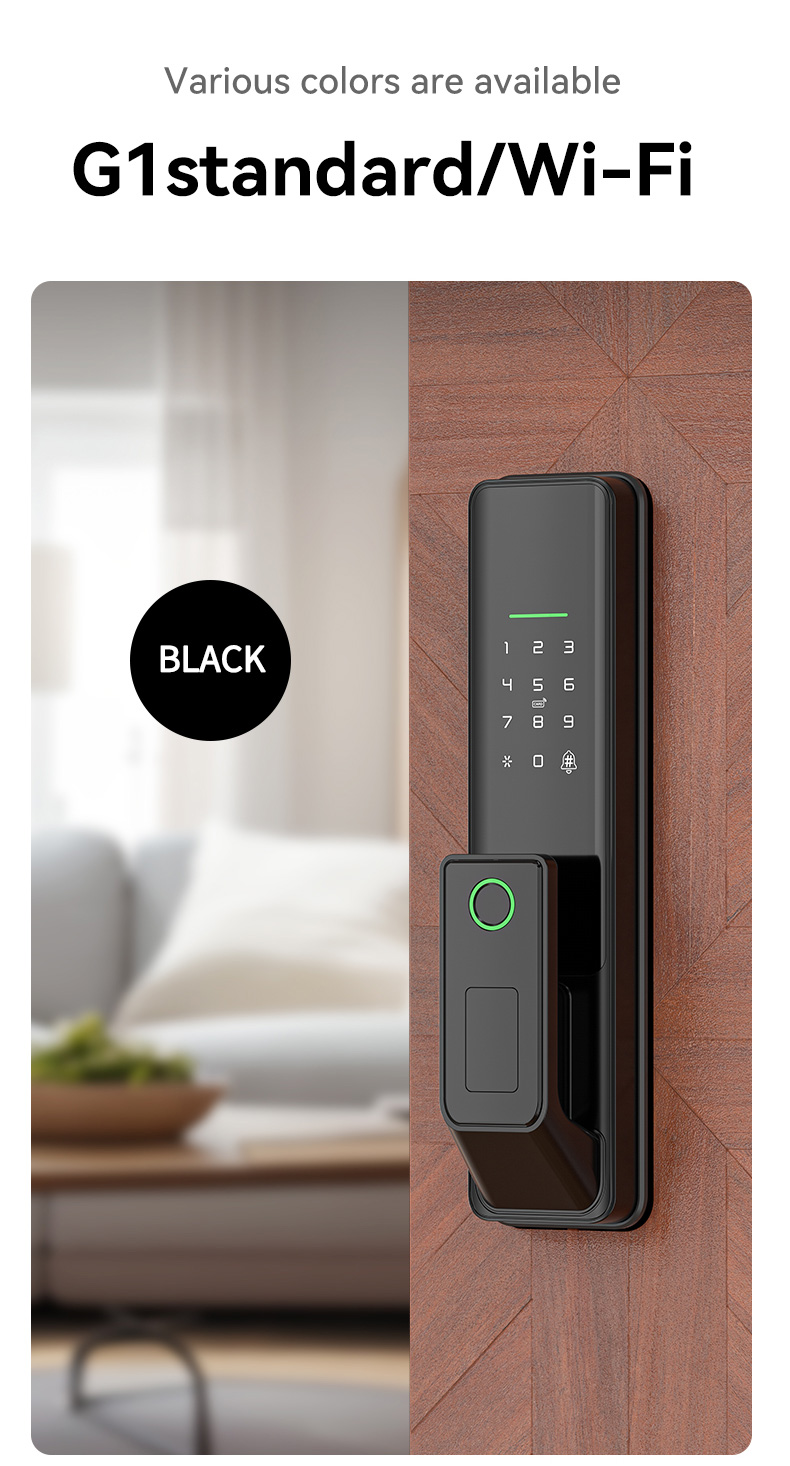

Color: black, grey, silver

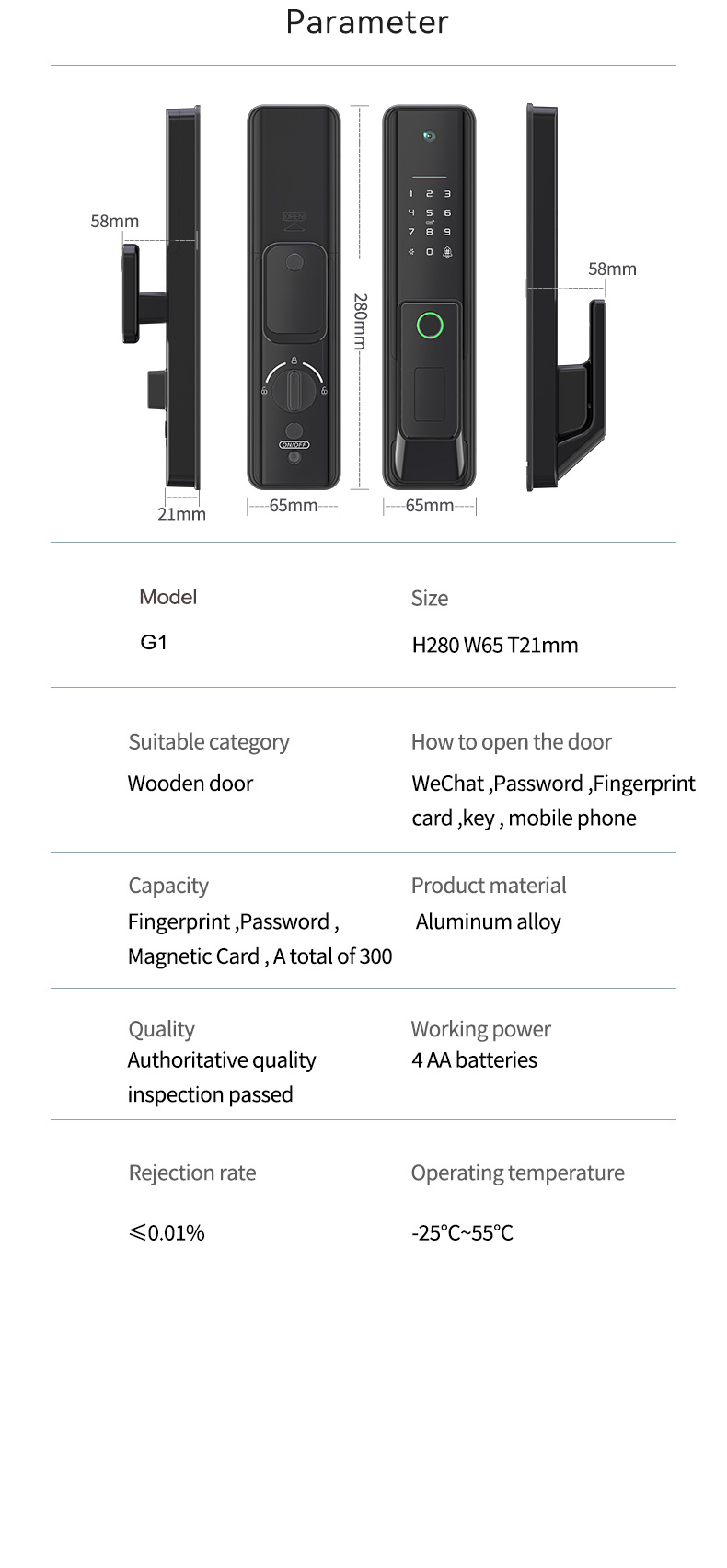

Dimension: 280*65*21MM

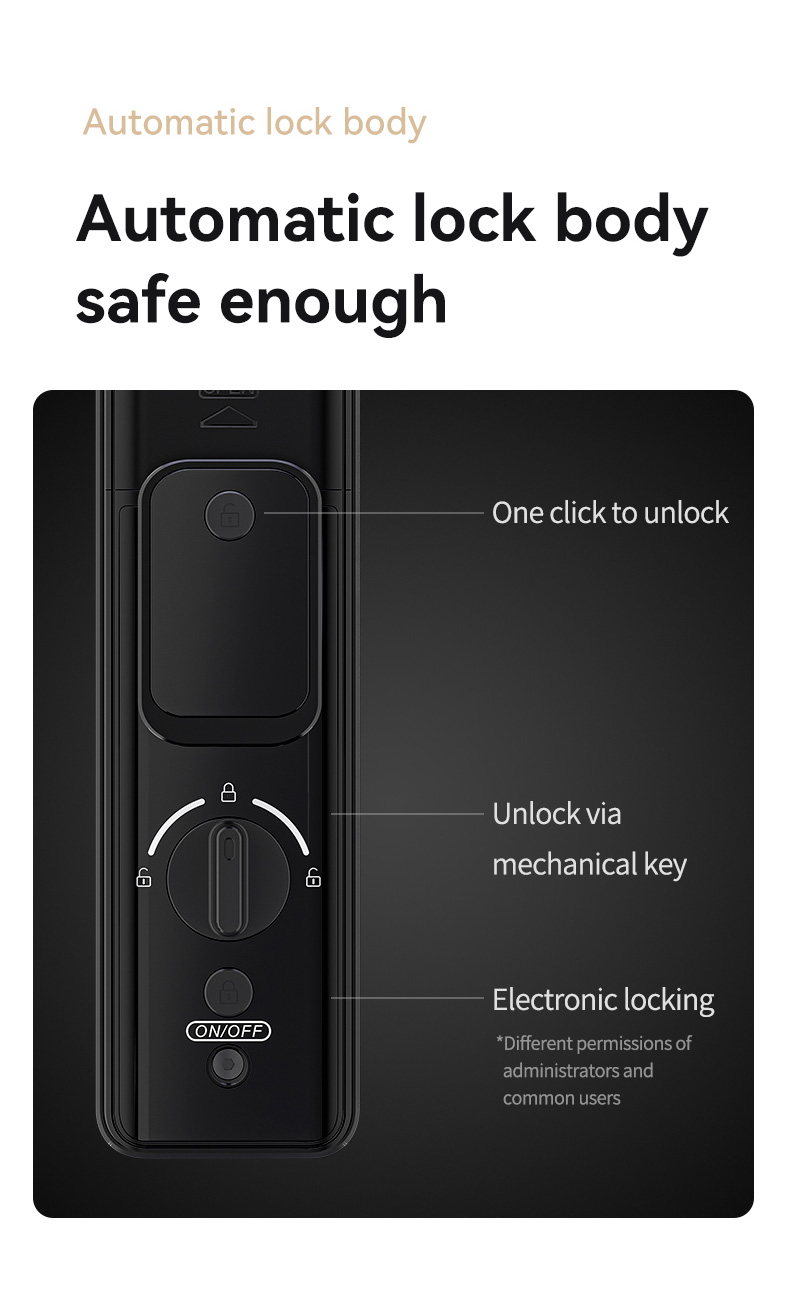

Mortise: electronic 5050

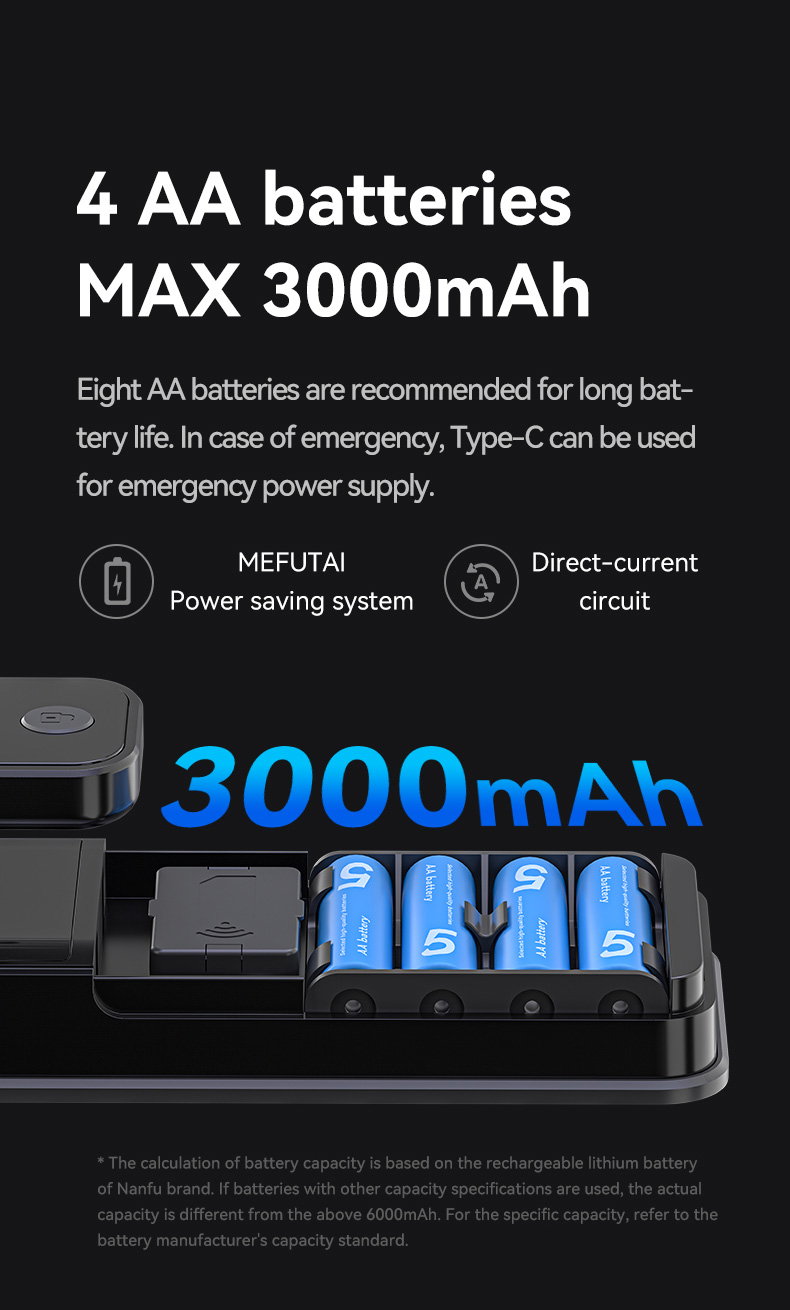

Powered by :4PCS AA battery

Unlock: fingerprint,card,key,wifi,password(different version have different way)

Typical quiescent current: <50 mA (battery life can exceed one year)

Working current: <200 mA (strong driving ability)

Quiet current: <50UA (strong driving ability)

Applicable door thickness: 35-50mm

Rejection rate: ≤0.15%

False acceptance rate: ≤0.00004%

Working temperature: -25℃-65℃

Working environment humidity: 5-95%RH (no condensation)

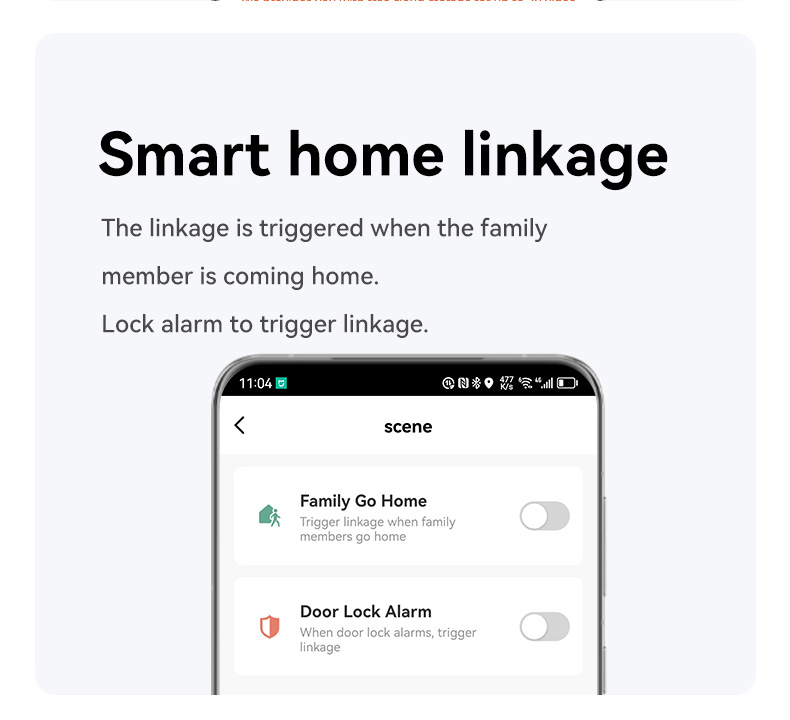

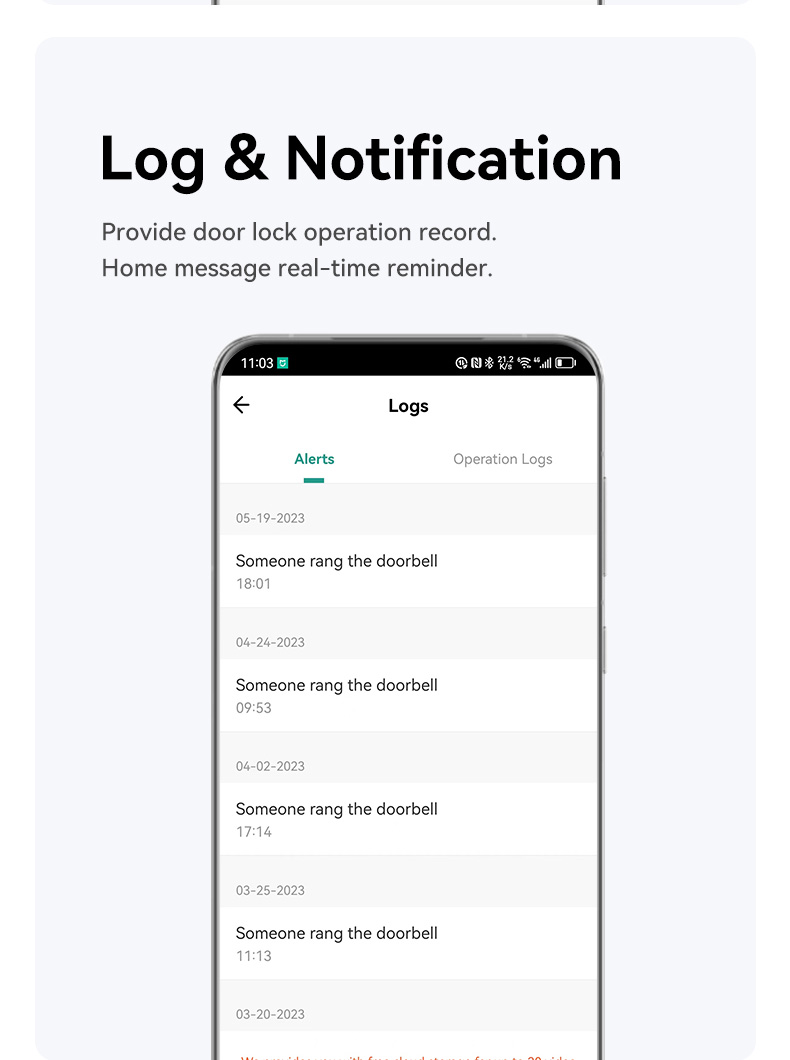

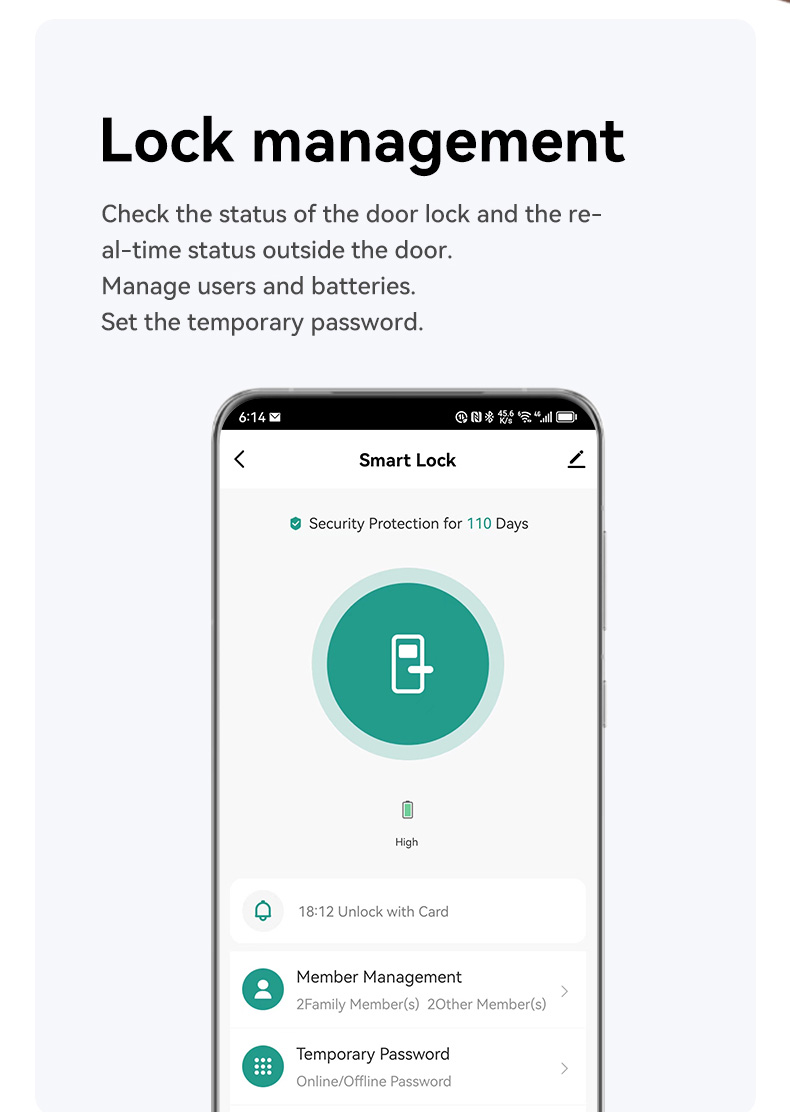

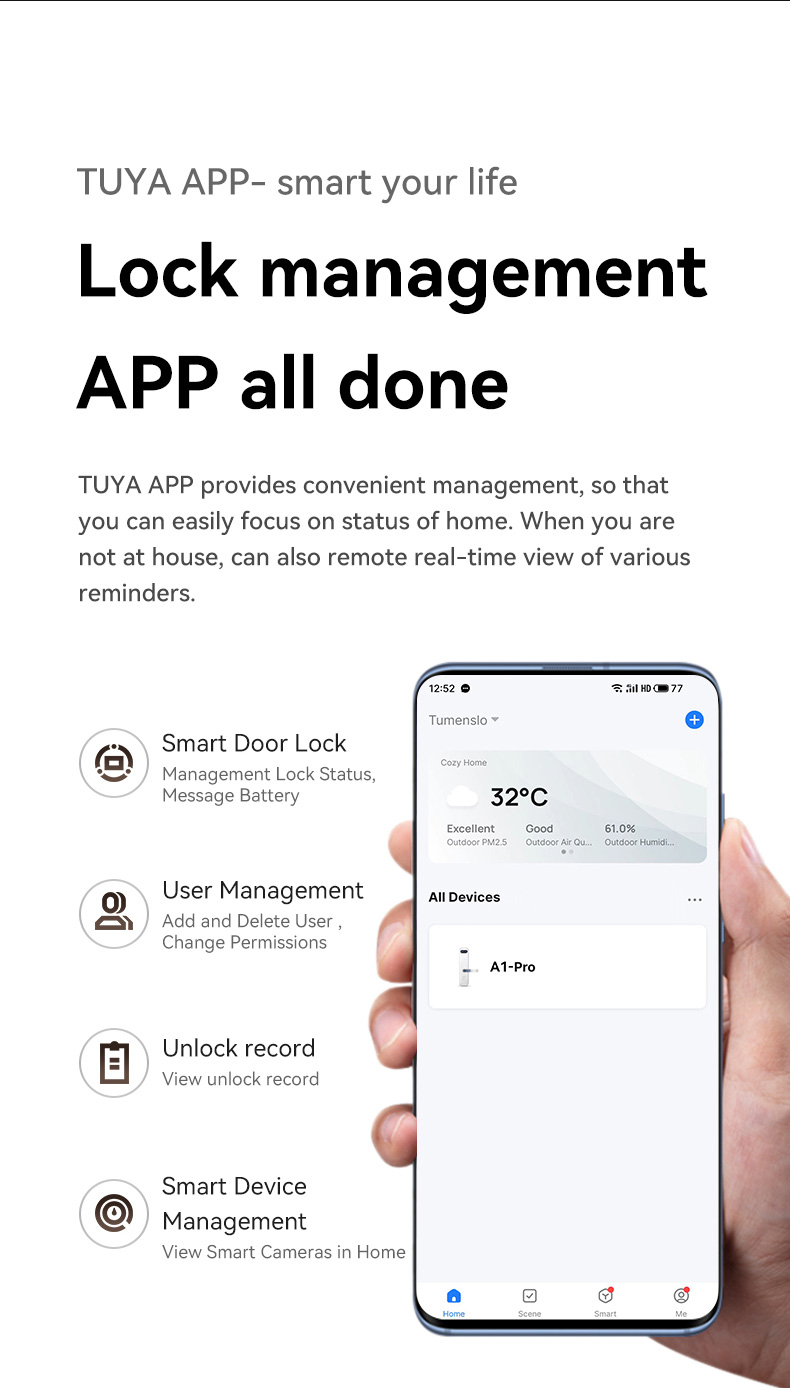

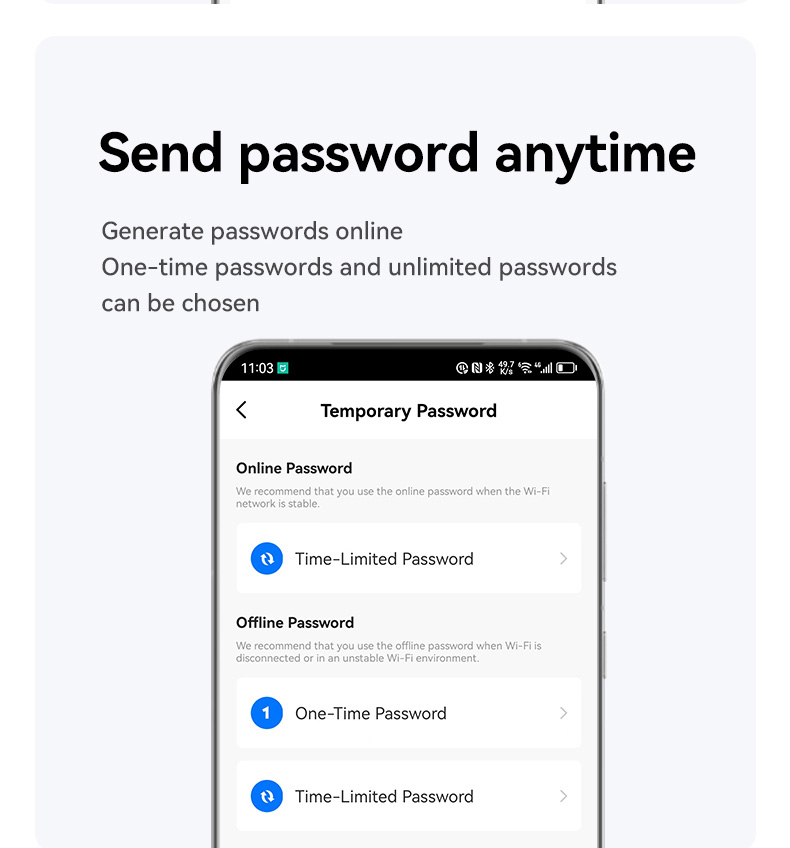

App:Tuya

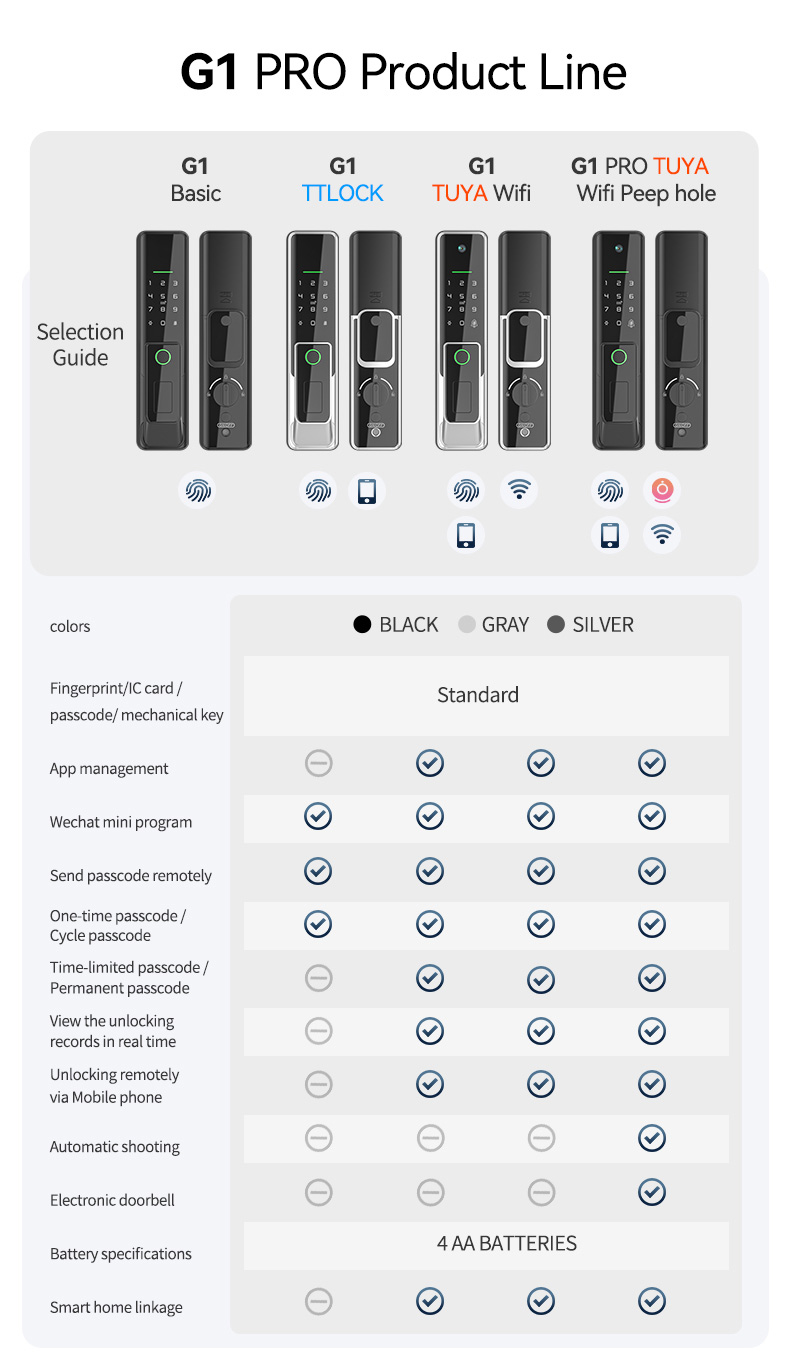

This model have 5 version for option:

1, stand alone: fingerprint+card+password+key, without peephole

2, TTlock bluetooth: fingerprint+card+password+key+bluetooth+wifi(need gateway)+remote controller, without peephole

3, Tuya wifi version: fingerprint+card+password+key+wifi, without peephole

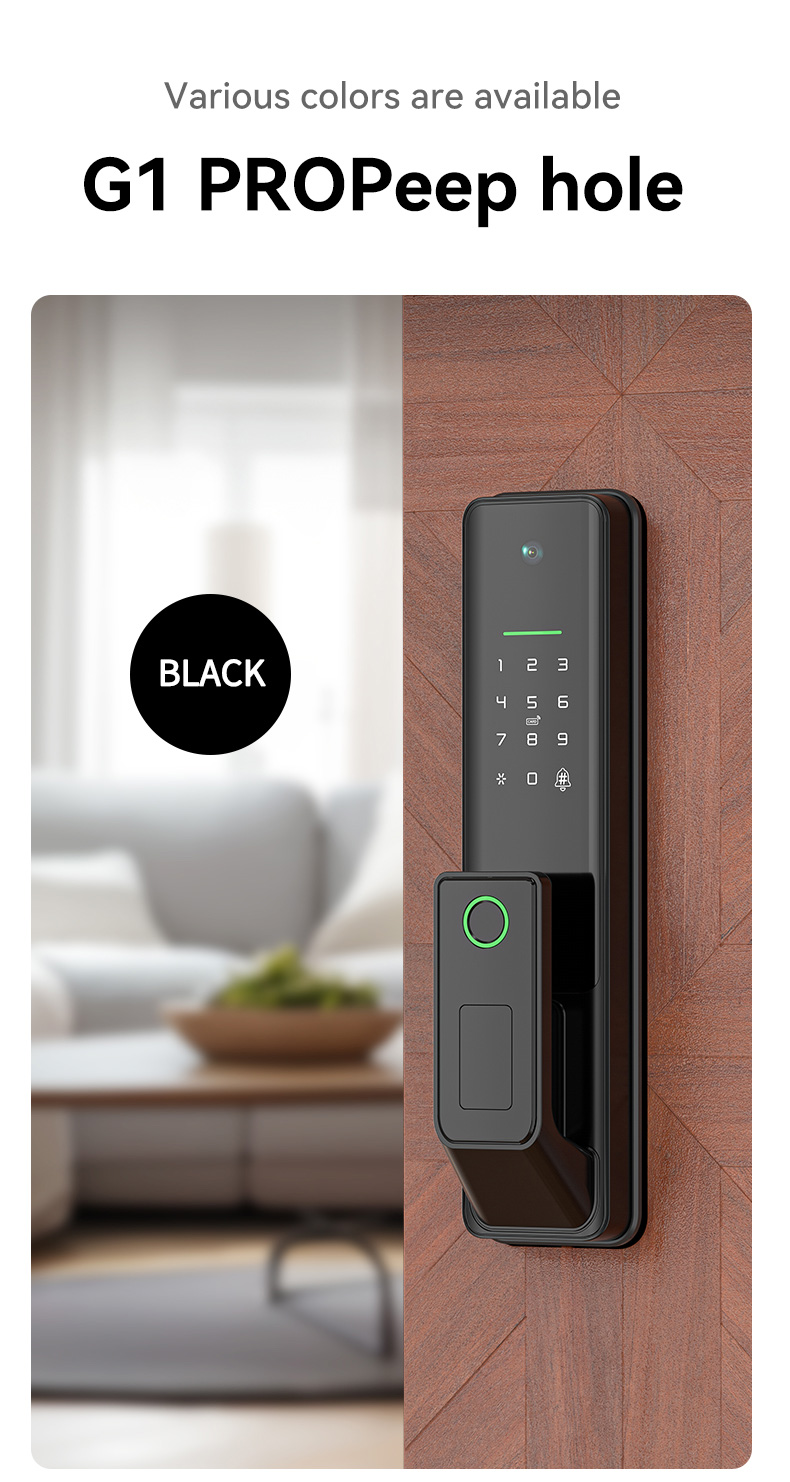

4, Tuya wifi with peephole version: fingerprint+card+password+key+wifi, with peephole

5, Tuya zigbee: fingerprint+card+password+key+APP, without peephole( this page showed is this version)


Option: 8 different country languages for option(Portuguese Spanish Vietnamese Thai Indonesian Arabic Russian English),need extra cost
