PRODUCT DESCRIPTION

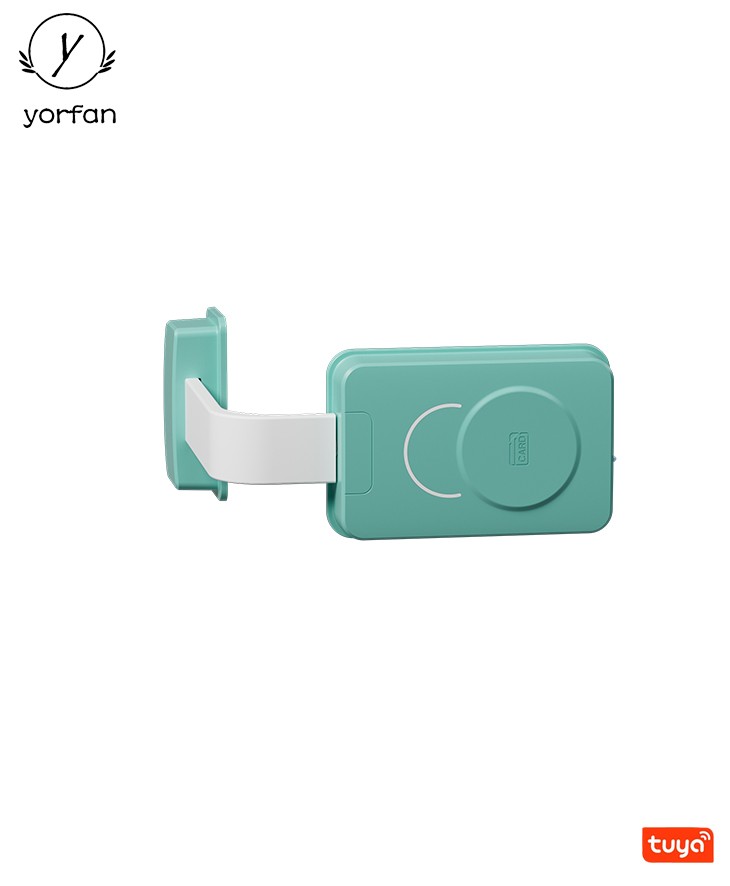

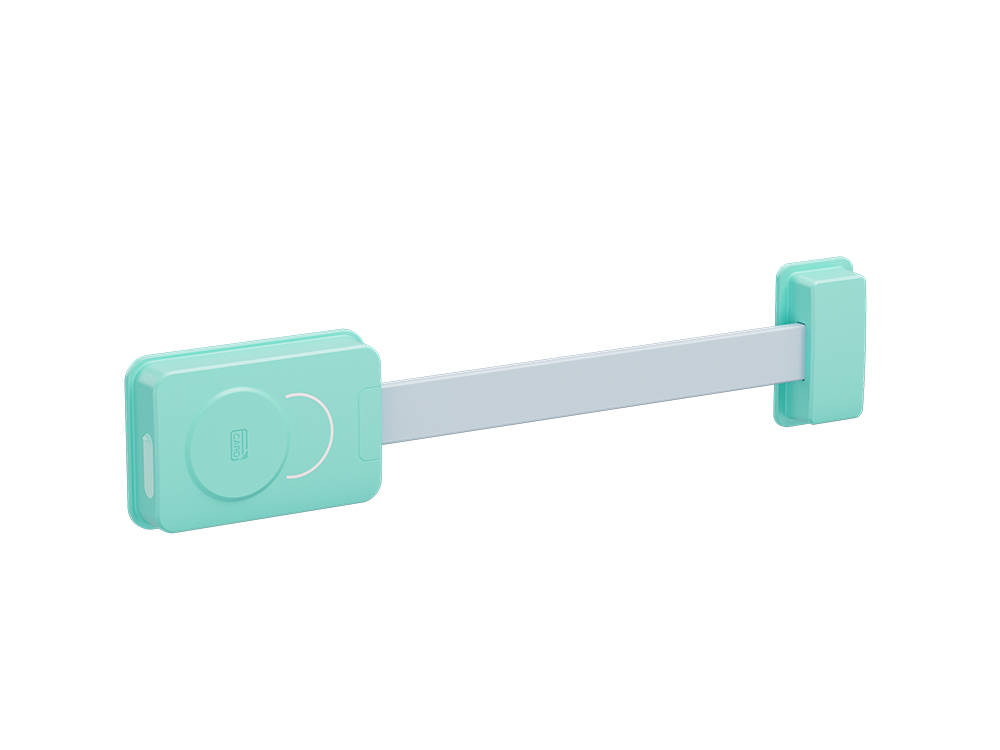

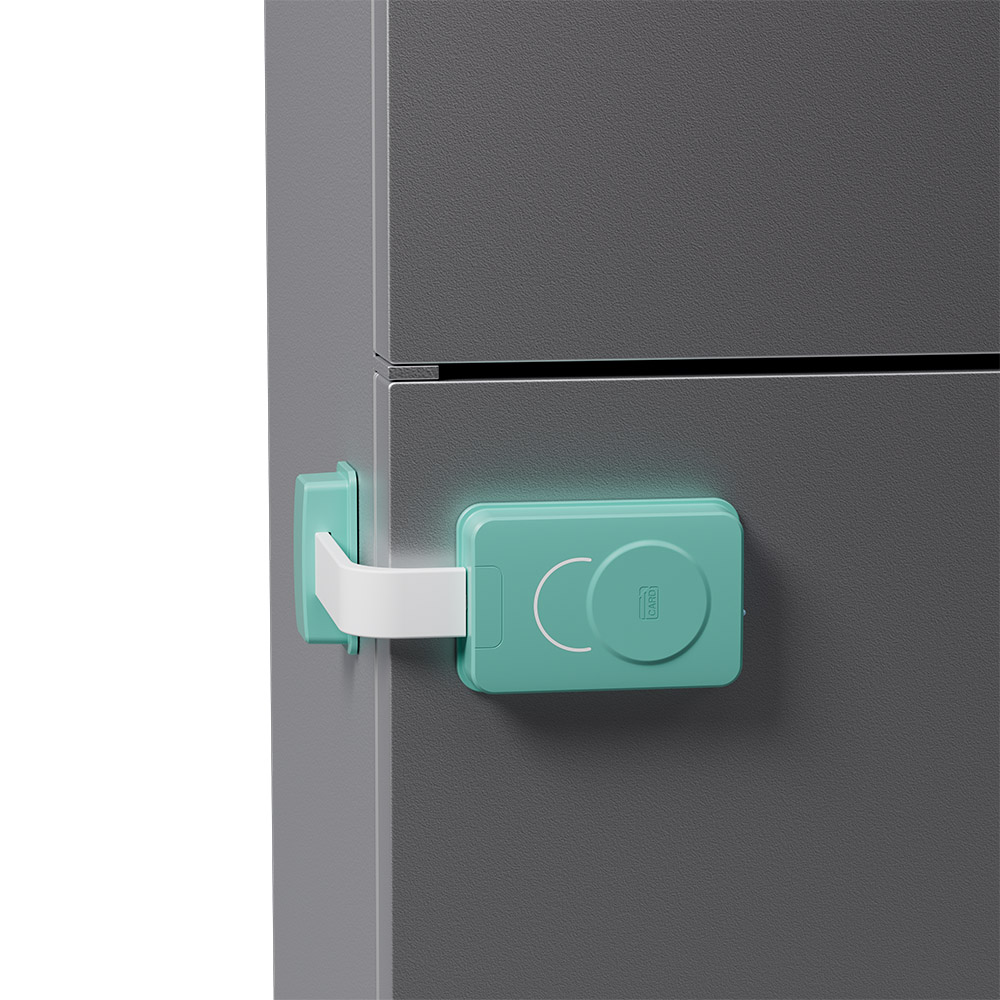

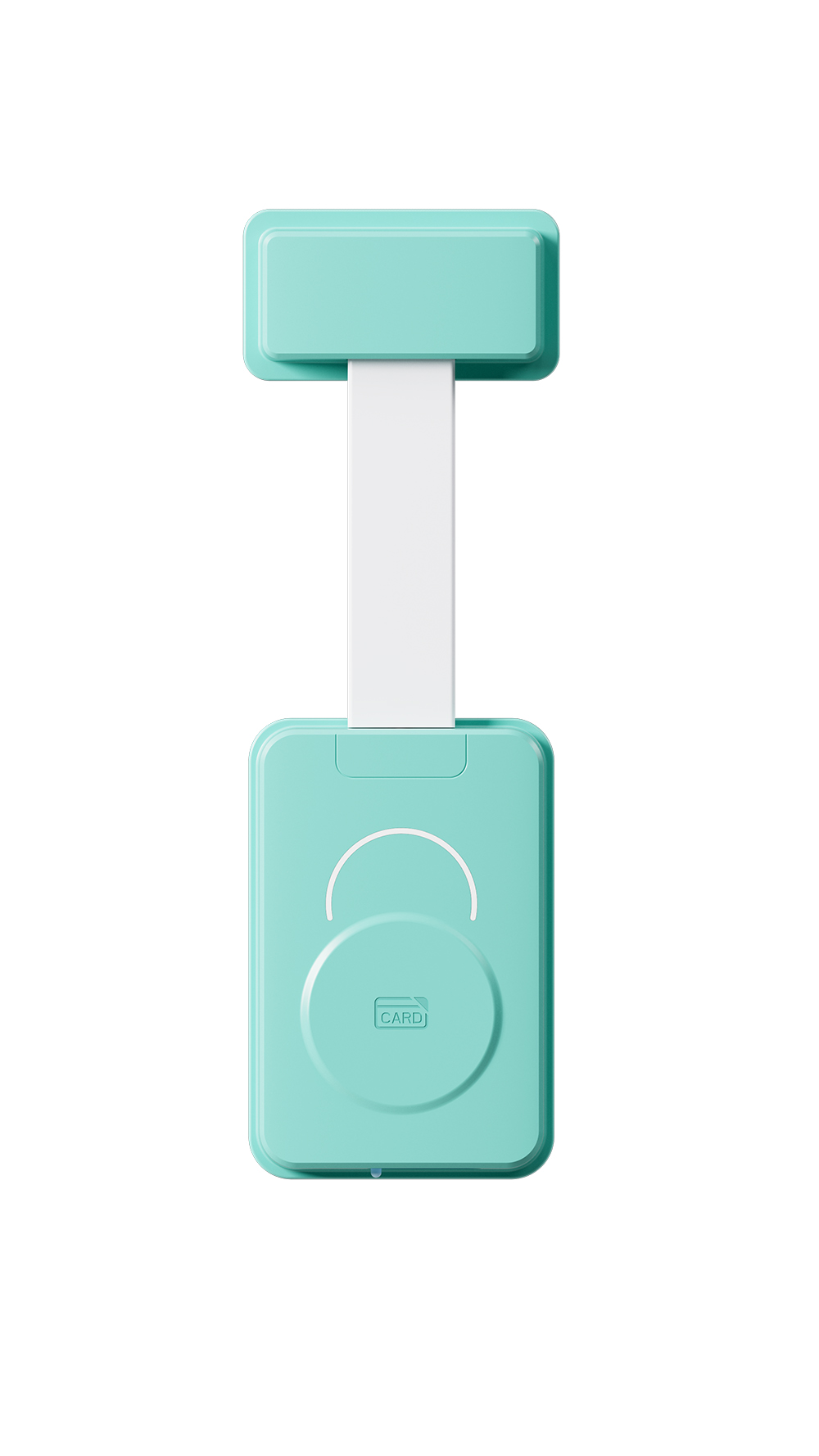

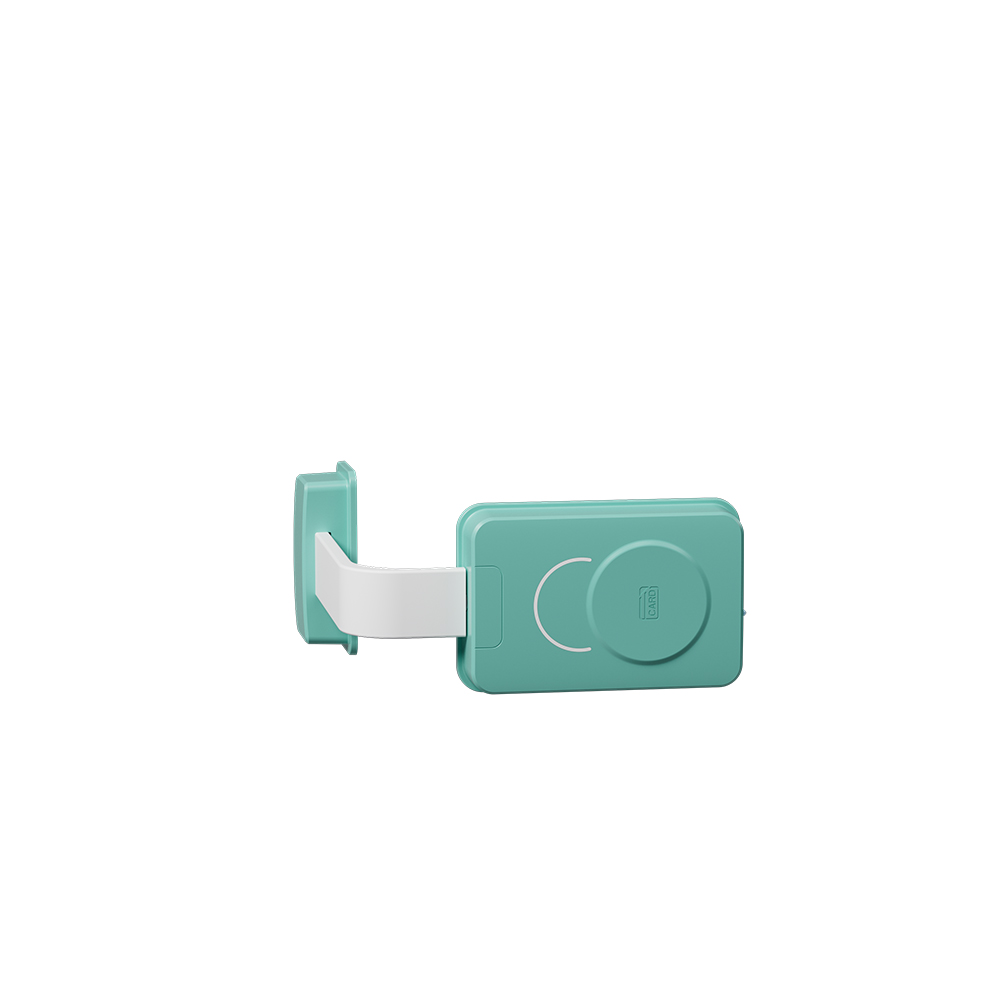

Model number: BX02
Color: light green

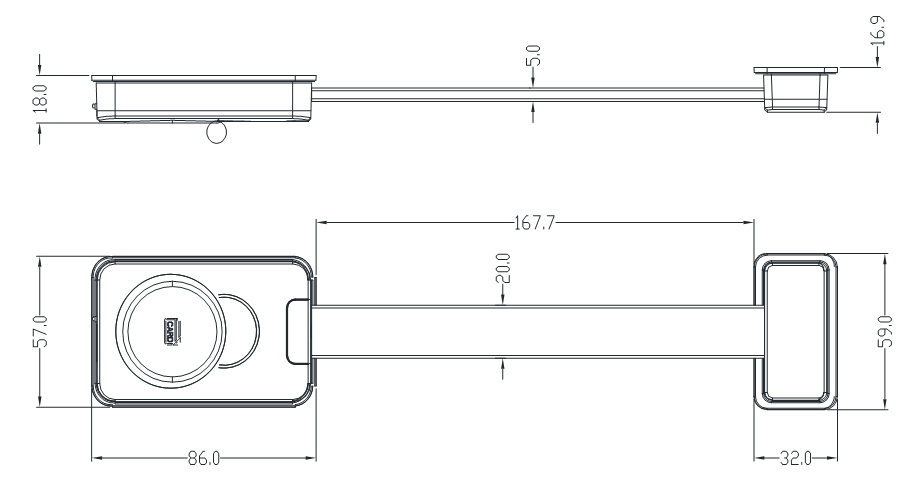

Dimension: Mortise: 86*57*18; Latch: 32*59*17; Lock strap: 168*5mm
Unlock: Card, bluetooth(Tuya), remote controller(option)
Ble standard: BLE5.1
Support system: Android 4.4+/IOS7.0 above
Powered by: Built in rechargeable lithium battery (3.7V, 800mAh)
Battery standby time: About 8 months when fully charged (calculated by operating 5 times a day at room temperature)
Input voltage: Type-C (supports 5V/1A charging) (Do not use fast charging power sources for charging)
Indicator light status: Swipe card lights up, charging light stays on, fully charged light goes off
Low voltage alarm: 3.5V(after unlock will have prompt of di-di short beeps)
Standby current: 30uA
Working current: <300mA
Working temperature: -10~50℃
Card/remote controller capacity: 20pcs
Reset: long press reset button on back side around 5 seconds or delete on APP
