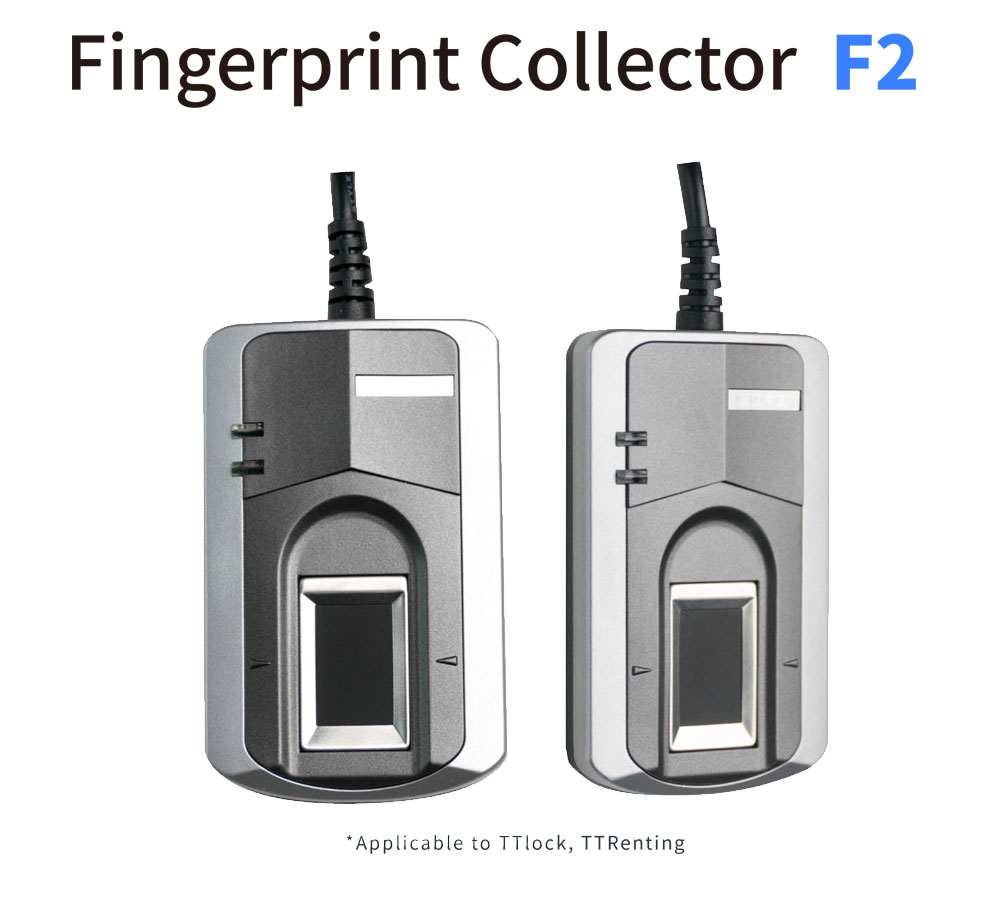

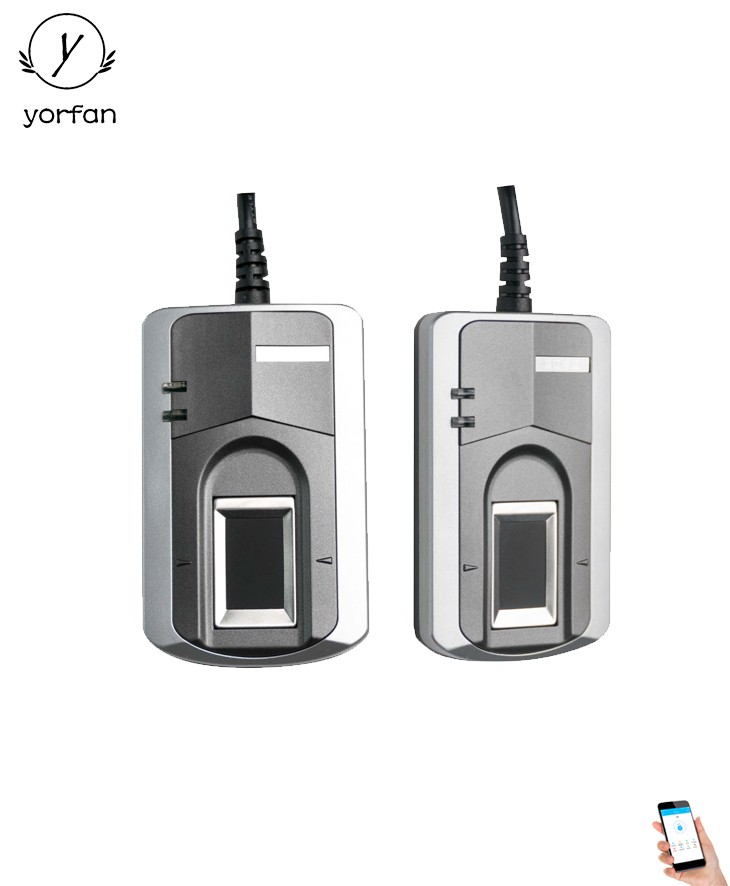

TTlock TTrenting Fingerprint Collector F2
Fingerprint collector for TTlock and TTrenting
PRODUCT DESCRIPTION
Model: F2
Usage: when you have lock want regist fingerprint on front desk, you can use this, no need operate on the lock.
Notice: not all lock support regist fingerprint with this device, need confirm advance.
Support APP: TTlock, TTrenting
Parameters:
Sensor type: Liveness detection
Number of uses: ≥4,000,000 times
Identify the area: 13.5/19
Resolution: 508DPI
Image size: 256*360pix(W*H)
FAR/FRR: Fingerprint Error Rate ≤ 0.004%
When FRR = 0.5%, FAR ≤ 0.003%
Voltage: DC5V±5％
Stand-by current : ≤250mA
Working Temperature : -10℃～55℃
Operating humidity : 20％RH～90％RH
Communication interface : USB, UART
Dimensions : 88.5*55*36.5mm(L*W*H)
Sensor size: 35*23*3.7mm（L*W*H）
