PRODUCT DESCRIPTION

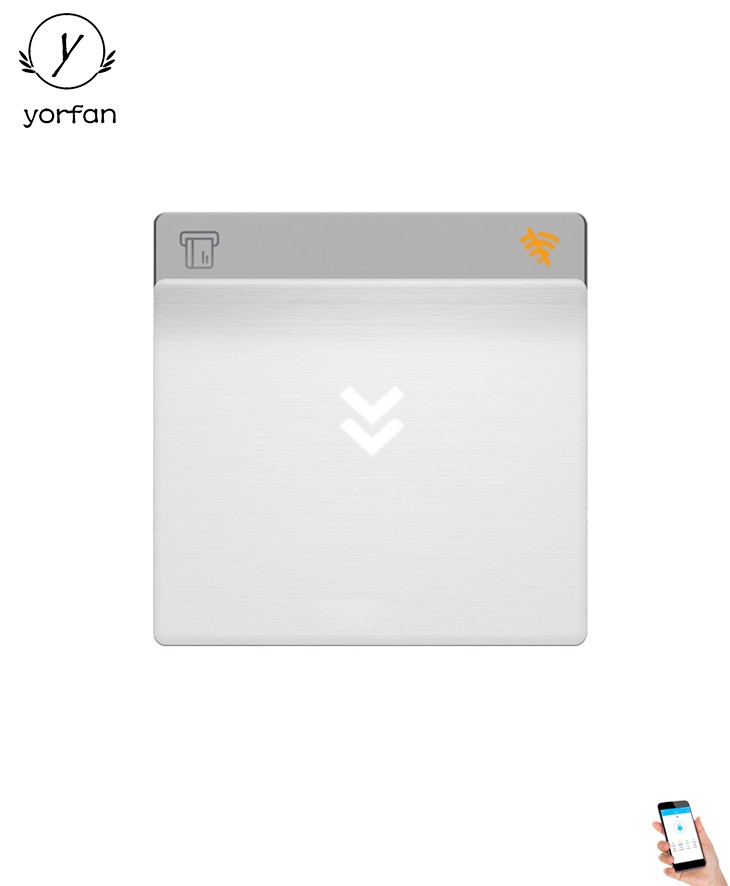

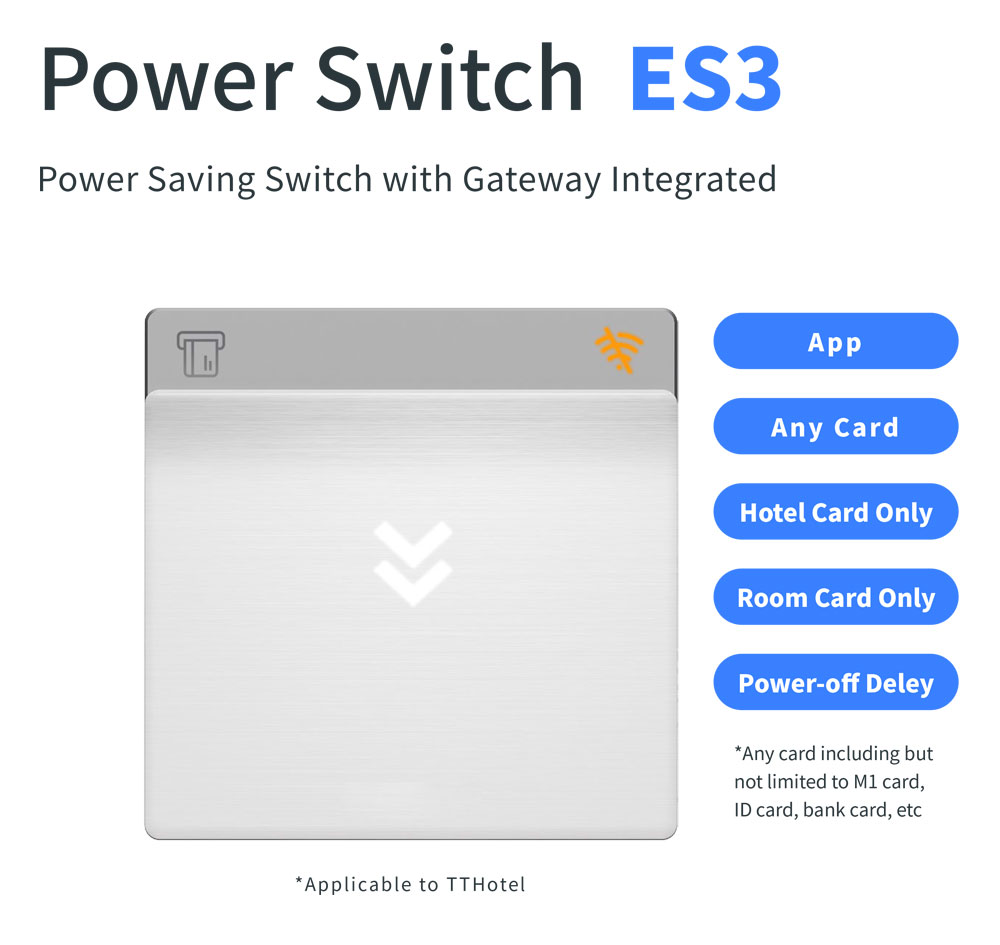

Model: RF-ES3
The ES3 Power Switch is specifically designed for hotel scenarios,integrating high-voltage power control,networked management,and intelligent relaying.
The product supports stable high-currentoutput of up to 40A,meeting the composite power supply demands o high-power appliances and smart devices in guest rooms.
Equipped with a built-in WiFi communication module,it seamlessly interfaces with the TTHotel Management Platform while also providing real-time network channels
for peripheral devices such as smart door locks and sensors.
It supports remote policy configuration,energy consumption monitoring,and anomaly alerts,empowering hotels to achievesafer,more energyefficient,
and flexible space management solutions.
Parameters:
Working voltage : AC180-250V
Wireless operating frequency : 802.11b/g/n 2.4GHz
Load rating current : 40A
Load rating : 8800W
Card type : Mifire One(M1)card
Card frequency : 13.56MHz
Outage delay time : 15S（Customizable）
Installation dimension : Depth 25mm, hole spacing 60mm
Material : PC
Operating mode : Any card, hotel card, room card, etc
Switch have 3 working mode:
1, Any IC cards can get power
2, All hotel cards can get power
3, Only room cards can get power, means only 101 room card can gain power of 101 room. Others cannot. And the switch will automatically power off at the time.

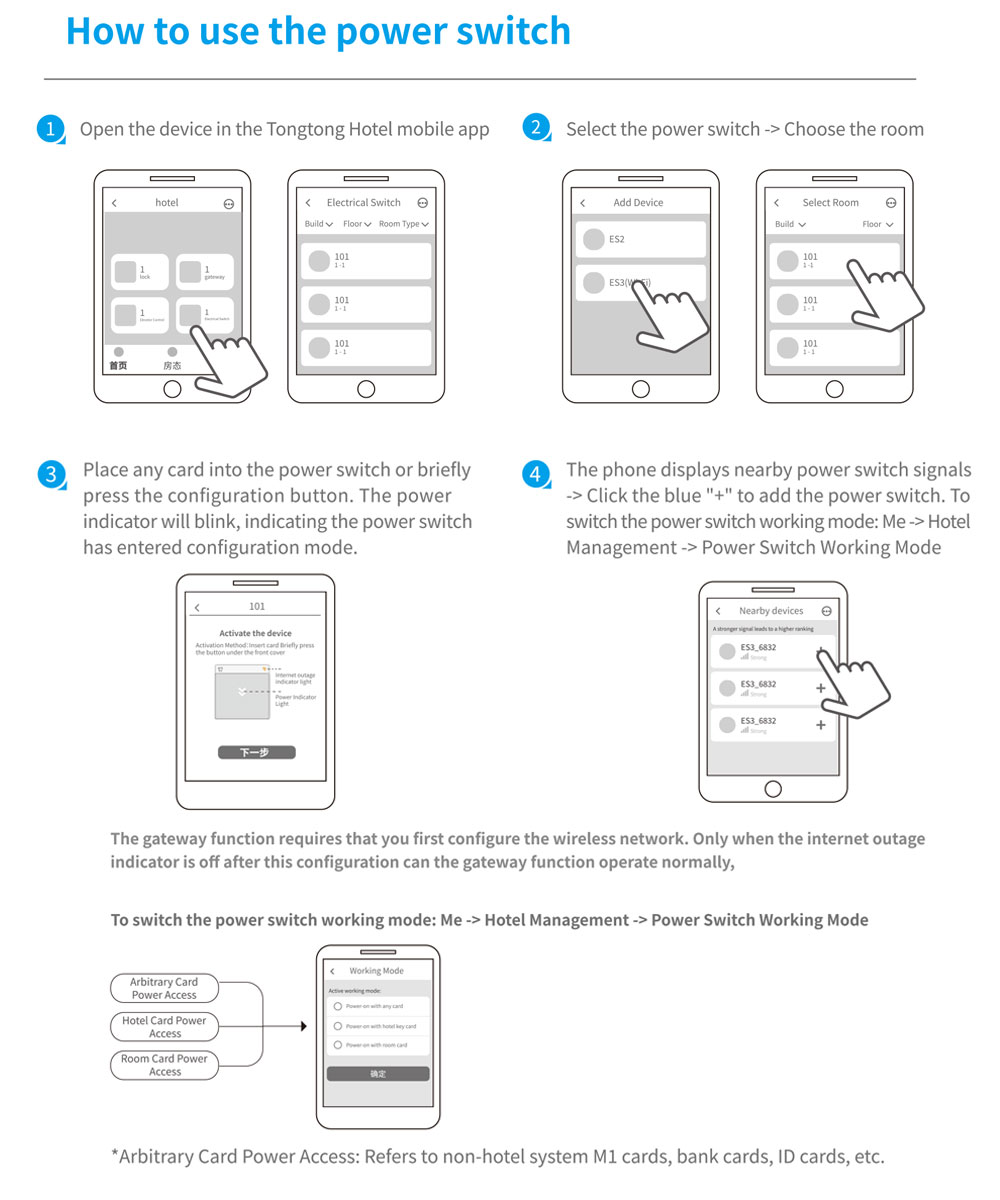

Switch is same, switch default in first mode, means any IC cards can get power, if you need other mode, need set on APP(TThotel)
