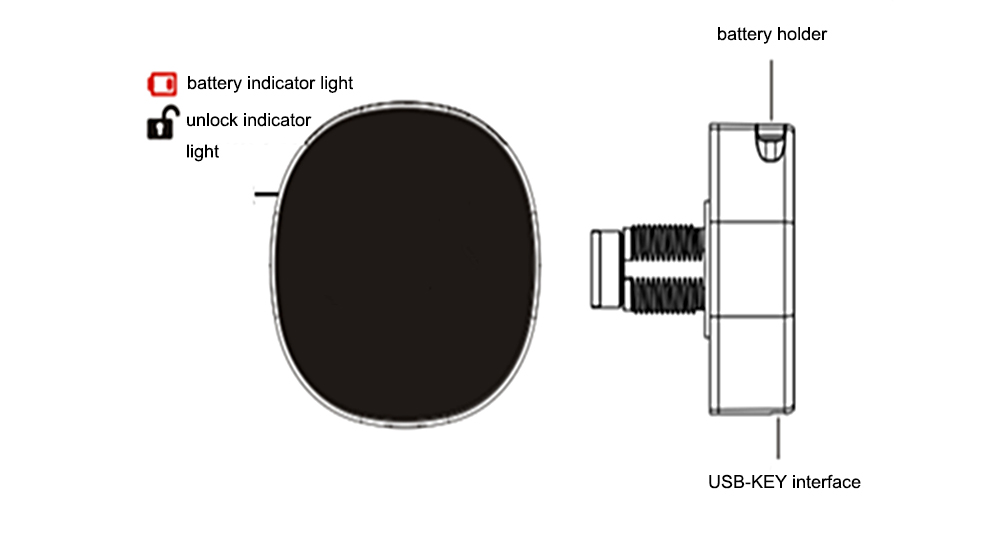

IC Card Electronic Cam Lock RF125

Model: RF125

Material: Zinc Alloy

Dimension: 57.5mm

Unlock: IC card

There are 20/30MM options for the length for option

Generally L20 is suitable for metal cabinets and thin wood cabinets (thickness within 15mm)

Generally L30 is suitable for wooden cabinets (thickness between 16~24mm)

Powered by:  2032 size button battery

Four types of cards

1. management card(only 1), main card(3 at most), service card（19 at most）, guest card(only 1)

2.Use management card 1 time to add the guest card, 2 times to add the guest card, 3 times to add the main card, 4 times to unlock, 5 times to delete the other three types of cards
